Description

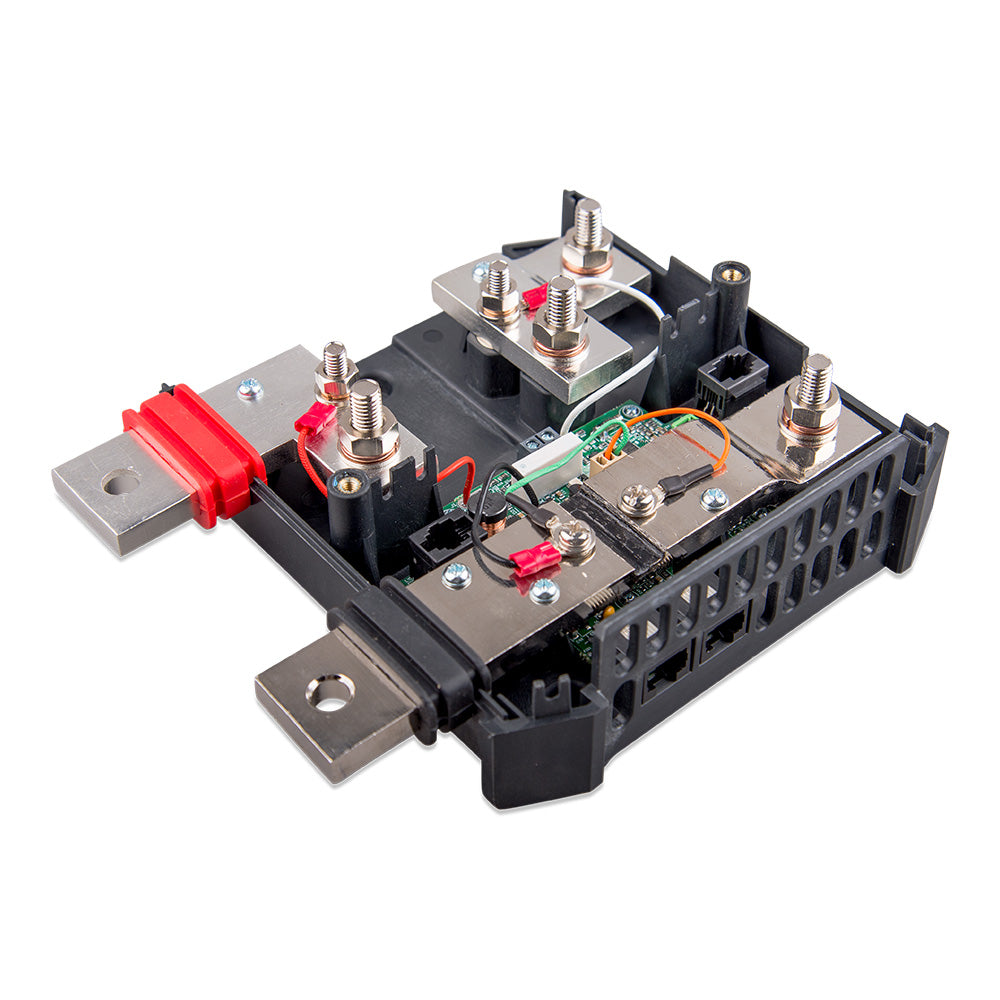

Lynx Shunt VE.Can (M10)
Busbar Integrated Battery Monitoring
The Lynx Shunt VE.Can contain a positive and negative busbar, a battery monitor, and a fuse holder for the main system fuse. It is part of the Lynx Distribution system. The Lynx Distributor has a power LED. The Lynx Shunt VE.Can can communicate via VE.Can with a GX device.
The Lynx Shunt VE.Can ship with two RJ45 VE.Can terminators, be used when connecting to a GX device.
The Lynx Shunt VE.Can is designed to hold a CNN fuse. The fuse needs to be purchased separately.
The Lynx Distribution System
The Lynx Distribution System is a modular busbar system incorporating DC connections, distribution, fusing, battery monitoring, and Lithium battery management.
The Lynx Distribution System Consists of the Following Parts:
Lynx Power In - A positive and negative busbar with 4 batteries or DC equipment connections.
Lynx Distributor - A positive and negative busbar with 4 fused connections for batteries or DC equipment together with fuse monitoring
Lynx Shunt VE.Can - A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device
Lynx Smart BMS - For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor that is driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal
