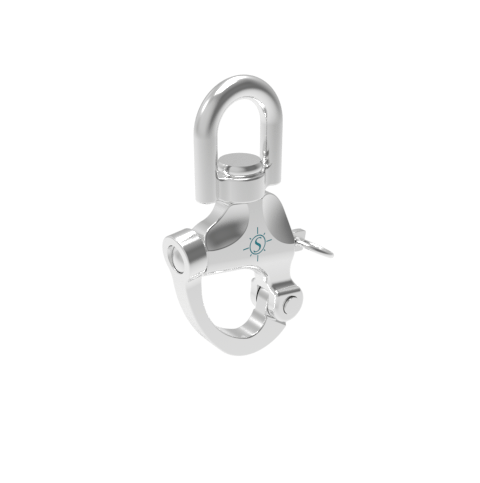

Suncor Swivel Snap Shackle

SuncorSKU: S0157-0002

Price:
Sale price$23.09

Description

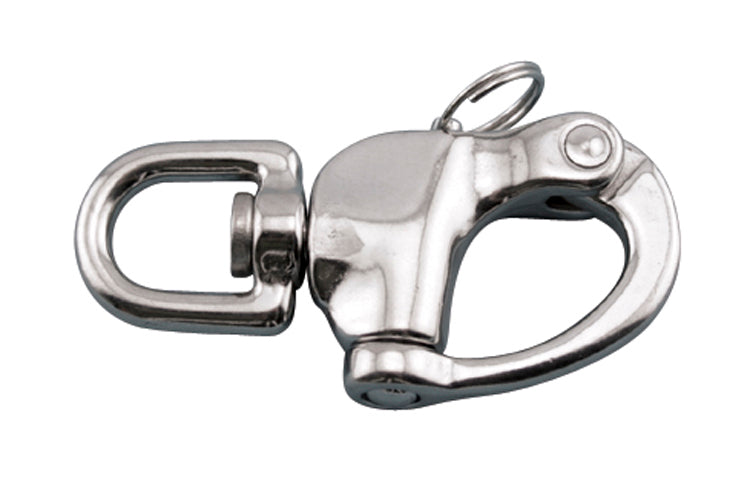

The Swivel Snap Shackle is made from grade 316 stainless steel for maximum corrosion resistance and durability, making it ideal for marine and industrial applications.

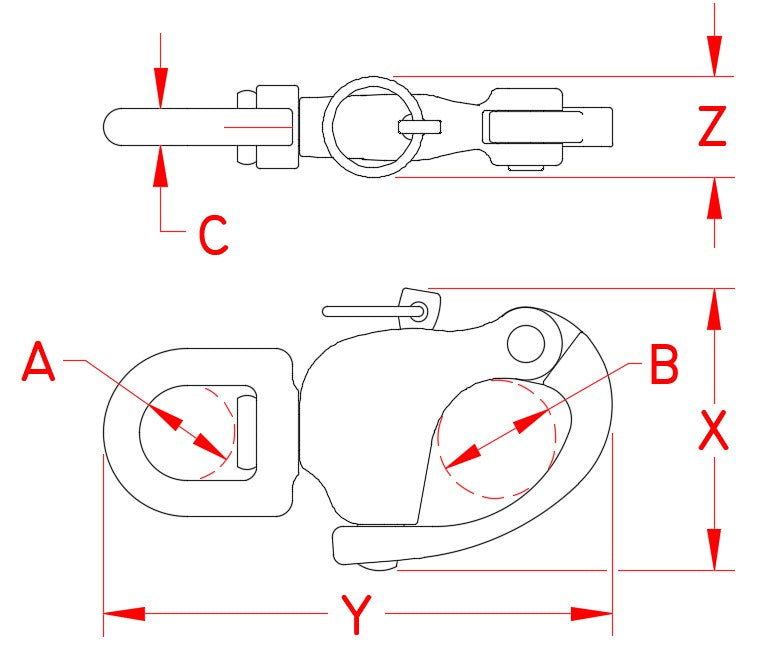

ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.



ITEM A B C X Y Z WLL (lb) WT (lb)
S0157-0001 0.54″ 0.57″ 0.18″ 1.86″ 2.66″ 0.47″ 1,000 0.13
S0157-0002 0.65″ 0.75″ 0.25″ 1.94″ 3.43″ 0.57″ 1,500 0.28
S0157-0003 0.89″ 1.05″ 0.36″ 2.46″ 4.94″ 0.81″ 2,000 0.66
