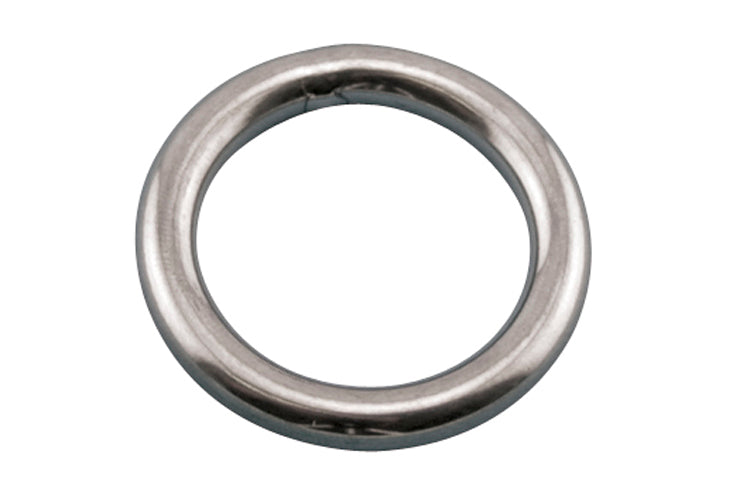

Suncor Round Ring

SuncorSKU: S0139-1210

Price:
Sale price$22.39

Description

Grade: 316 Stainless Steel

Specification: MIL-DTL-32655

The Round Ring is available in sizes ranging from 1/8″ to 1/2″ in thickness to ensure a perfect fit for every project. This ring is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging applications.

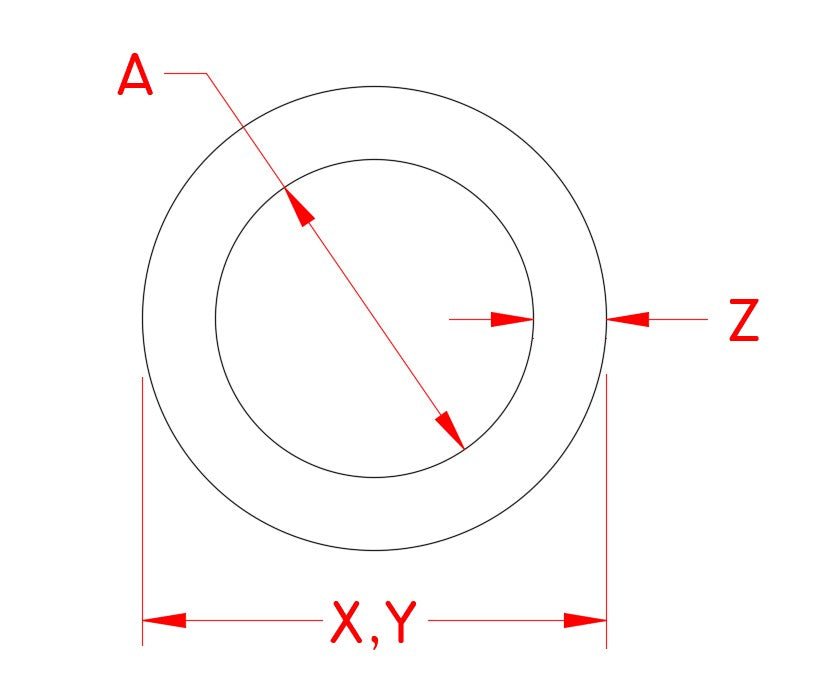

ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.



ITEM A X Y Z WLL
(lb)
WT
(lb)
S0139-0320 3/4″ 1″ 1″ 1/8″ 125 0.01
S0139-0325 1″ 1-1/4″ 1-1/4″ 1/8″ 125 0.01
S0139-0425 1″ 1-5/16″ 1-5/16″ 5/32″ 300 0.03
S0139-0430* 1-1/4″ 1-5/8″ 1-5/8″ 5/32″ 280 0.03
S0139-0440 1-1/2″ 1-7/8″ 1-7/8″ 5/32″ 250 0.03
S0139-0525 1″ 1-13/32″ 1-13/32″ 3/16″ 500 0.04
S0139-0530 1-1/4″ 1-5/8″ 1-5/8″ 3/16″ 300 0.05
S0139-0540 1-1/2″ 2″ 2″ 3/16″ 300 0.06
S0139-0550 2″ 2-3/8″ 2-3/8″ 3/16″ 250 0.06
S0139-0625 1″ 1-1/2″ 1-1/2″ 1/4″ 600 0.05
S0139-0630 1-1/4″ 1-3/4″ 1-3/4″ 1/4″ 500 0.06
S0139-0640 1-1/2″ 2″ 2″ 1/4″ 400 0.08
S0139-0650 2″ 2-1/2″ 2-1/2″ 1/4″ 350 0.10
S0139-0840 1-1/2″ 2-1/8″ 2-1/8″ 5/16″ 750 0.14
S0139-0845 1-3/4″ 2-7/16″ 2-7/16″ 5/16″ 700 0.15
S0139-0850 2″ 2-5/8″ 2-5/8″ 5/16″ 600 0.16
S0139-0865 2-1/2″ 3-3/16″ 3-3/16″ 5/16″ 500 0.20
S0139-1050 2″ 2-3/4″ 2-3/4″ 3/8″ 1,100 0.26
S0139-1065 2-1/2″ 3-1/4″ 3-1/4″ 3/8″ 1,000 0.33
S0139-1080 3-1/4″ 4″ 4″ 3/8″ 800 0.40
S0139-1210 4″ 4-7/8″ 4-7/8″ 1/2″ 1,600 0.63
S0139-1260 2-3/8″ 3-1/4″ 3-1/4″ 1/2″ 1,400 0.45
S0139-1265 2-1/2″ 3-1/2″ 3-1/2″ 1/2″ 1,350 0.48
S0139-1280 3-1/8″ 4″ 4″ 1/2″ 1,200 0.56
