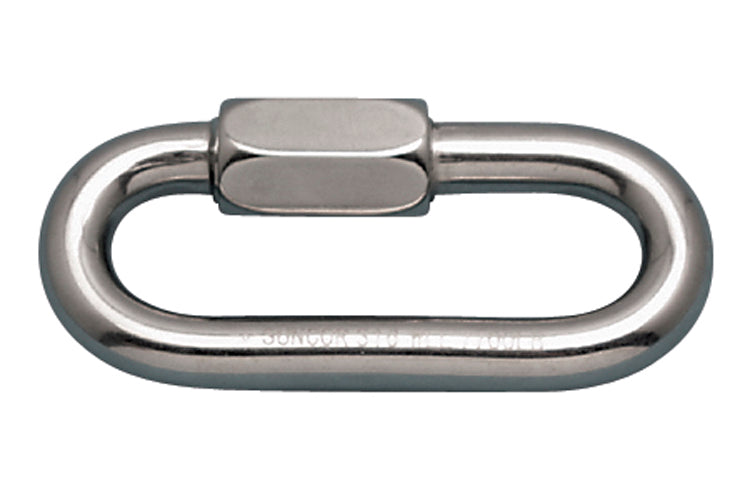

Suncor Long Quick LinkSuncor Long Quick Link

Suncor Long Quick Link

SuncorSKU: S0160-LA03
Price:
$2.46

Description

Grade: 316 Stainless Steel

The Long Quick Link is available in sizes ranging from 1/8″ to 3/4″ to ensure a perfect fit for every project. This link is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging and linking applications.

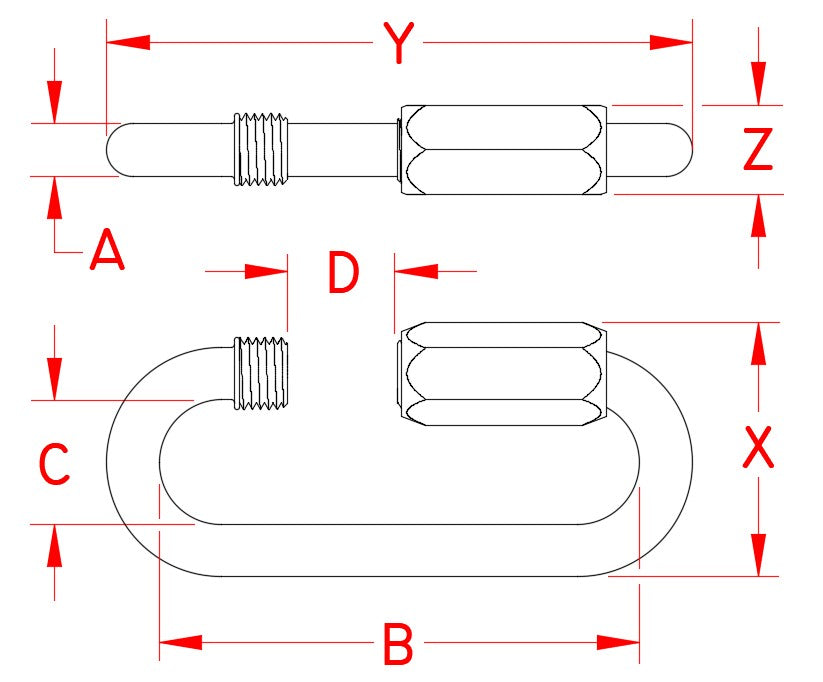

ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.



ITEM A
(size)		 B C D X Y Z WLL
(lb)		 WT
(lb)
S0160-LA03 1/8″ 1.50″ 0.34″ 0.34″ 0.77″ 1.81″ 0.27″ 200 0.02
S0160-LA04 5/32″ 1.76″ 0.46″ 0.47″ 0.86″ 2.04″ 0.31″ 300 0.03
S0160-LA05 3/16″ 2.05″ 0.52″ 0.52″ 1.00″ 2.47″ 0.35″ 880 0.05
S0160-LA06 1/4″ 2.31″ 0.58″ 0.58″ 1.15″ 2.73″ 0.42″ 1,200 0.09
S0160-LA08 5/16″ 2.83″ 0.67″ 0.67″ 1.48″ 3.48″ 0.53″ 2,100 0.19
S0160-LA09 3/8″ 3.03″ 0.75″ 0.75″ 1.62″ 3.76″ 0.57″ 2,700 0.26
S0160-LA10 7/16″ 3.38″ 0.81″ 0.81″ 1.80″ 4.09″ 0.63″ 3,500 0.34
S0160-LA12 1/2″ 3.94″ 0.92″ 0.92″ 2.05″ 4.92″ 0.71″ 4,800 0.57
S0160-LA14 9/16″ 4.50″ 1.05″ 1.05″ 2.35″ 5.75″ 0.86″ 6,800 0.96
S0160-LA16 5/8″ 5.08″ 1.16″ 1.16″ 2.65″ 6.40″ 1.02″ 8,800 1.43
S0160-LA18 3/4″ 5.53″ 1.28″ 1.28″ 3.06″ 6.94″ 1.19″ 10,800 2.00
