SuncorSKU: S0319-0804
Price:
$11.00

Description

Grade: 316 Stainless Steel

Thread Type: UNC

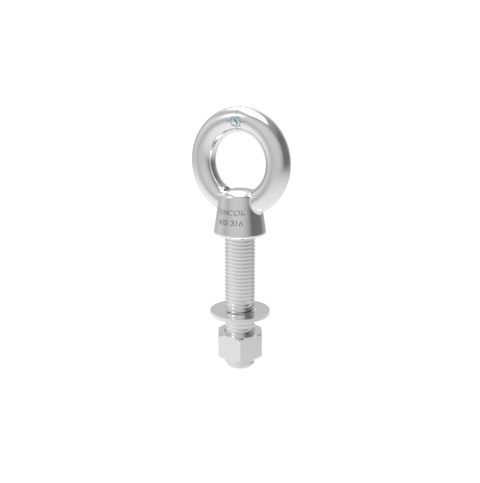

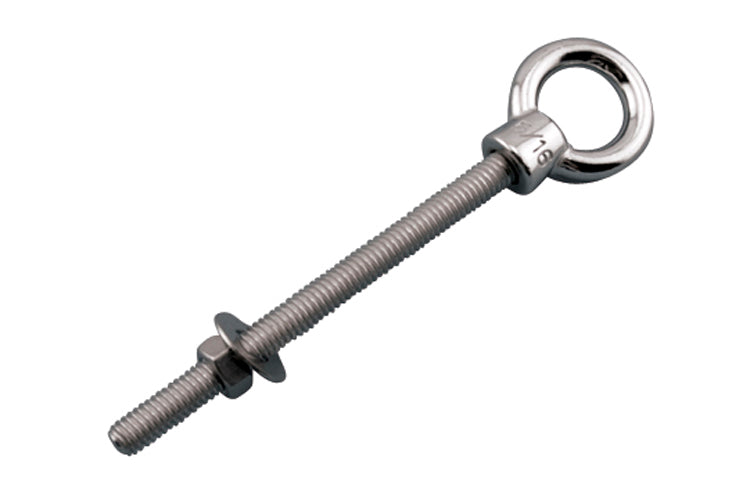

The Heavy Duty Special Eye Bolt features a fully threaded rod welded into an eye nut. It includes one nut and washer and is UNC thread. This eye bolt is available in sizes ranging from 1/4″ to 1″ and is made from grade 316 stainless steel for durability and corrosion resistance.

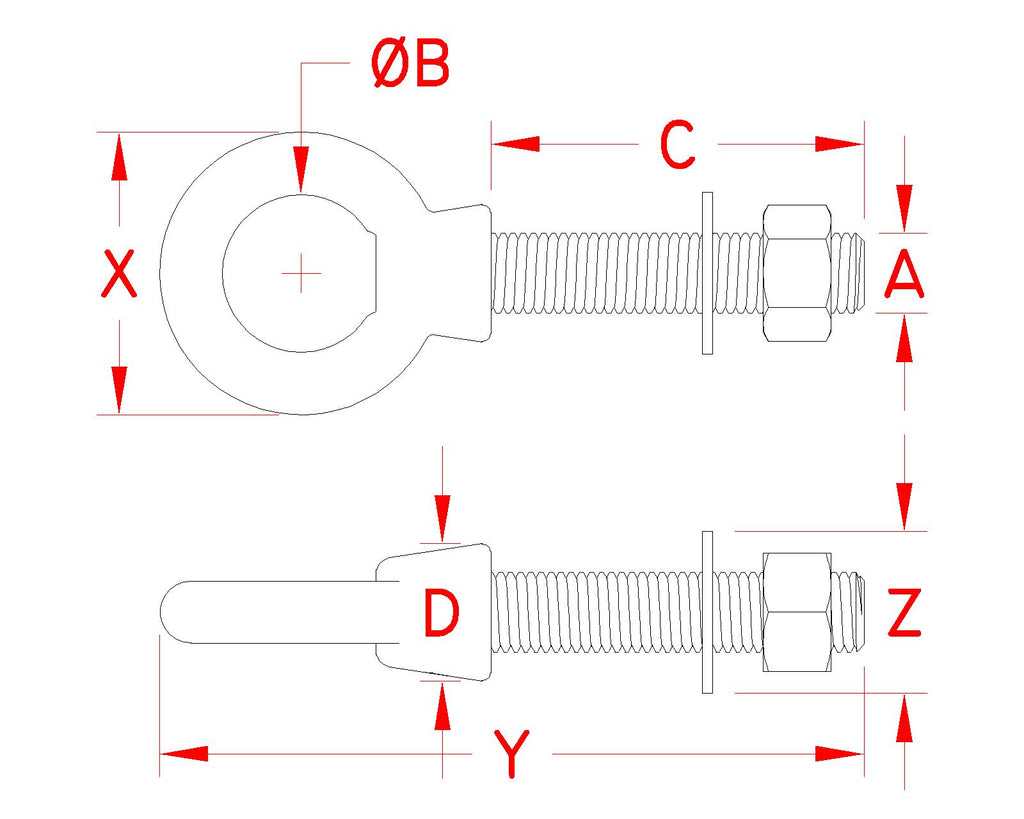

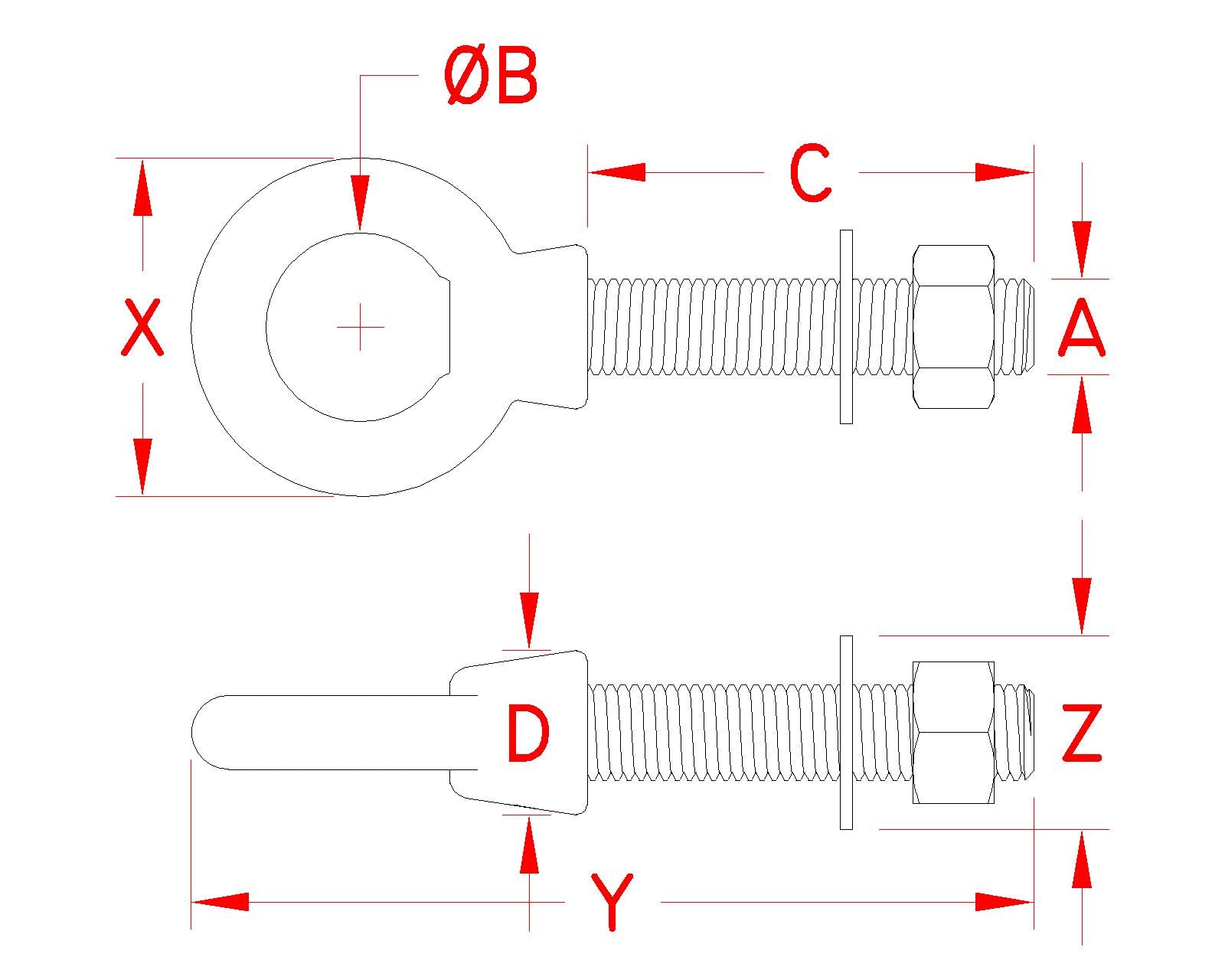

ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.



ITEM A
(size)		 B C D X Y Z WLL
(lb)		 WT
(lb)
S0319-0702 1/4″ 0.62″ 2.00″ 0.48″ 1.08″ 3.21″ 0.62″ 400 0.07
S0319-0712 1/4″ 0.62″ 12.00″ 0.48″ 1.08″ 13.25″ 0.62″ 400 0.17
S0319-0804 5/16″ 0.75″ 4.00″ 0.62″ 1.30″ 5.56″ 0.75″ 700 0.16
S0319-0812 5/16″ 0.75″ 12.00″ 0.62″ 1.30″ 13.50″ 0.75″ 700 0.30
S0319-1005 3/8″ 0.97″ 5.00″ 0.76″ 1.60″ 7.02″ 0.88″ 1,000 0.29
S0319-1012 3/8″ 0.97″ 12.00″ 0.76″ 1.60″ 13.90″ 0.88″ 1,000 0.46
S0319-1306 1/2″ 1.17″ 6.00″ 0.95″ 1.96″ 8.40″ 1.06″ 2,000 0.60
S0319-1312 1/2″ 1.17″ 12.00″ 0.95″ 1.96″ 14.50″ 1.06″ 2,000 0.86
S0319-1606 5/8″ 1.34″ 6.00″ 1.19″ 2.45″ 8.70″ 1.31″ 3,200 1.10
S0319-1612 5/8″ 1.34″ 12.00″ 1.19″ 2.45″ 14.75″ 1.31″ 3,200 1.51
S0319-2006 3/4″ 1.57″ 6.00″ 1.33″ 2.76″ 9.40″ 1.55″ 4,700 1.61
S0319-2012 3/4″ 1.57″ 12.00″ 1.33″ 2.76″ 15.25″ 1.55″ 4,700 2.24
S0319-2018 3/4″ 1.57″ 18.00″ 1.33″ 2.76″ 21.50″ 1.55″ 4,700 2.85
S0319-2509 1″ 2.00″ 9.00″ 1.70″ 3.50″ 13.15″ 2.00″ 7,000 3.75
S0319-2518 1″ 2.00″ 18.00″ 1.70″ 3.50″ 22.25″ 2.00″ 7,000 5.39
