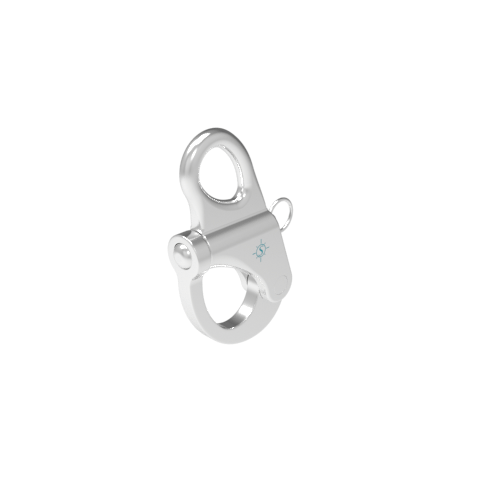

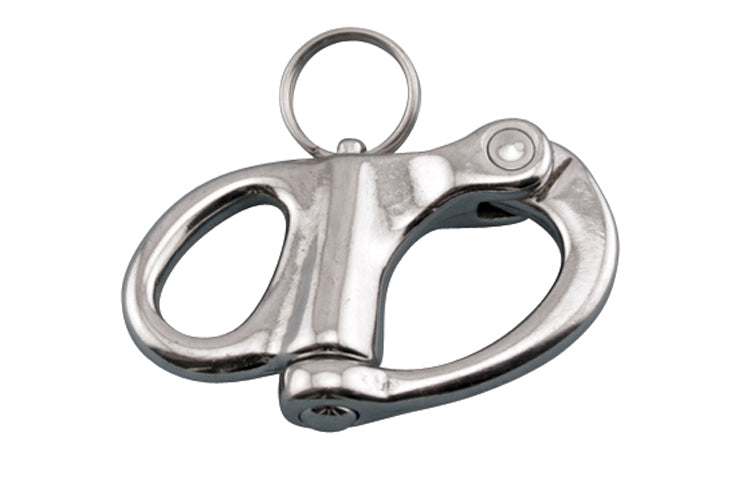

Suncor Fixed Snap Shackle

SuncorSKU: S0158-0001

Price:
Sale price$16.42

Description

Grade: 316 Stainless Steel

The Fixed Snap Shackle is available in a variety of sizes ranging from 2″ to 4″. This snap shackle is made from grade 316 stainless steel for maximum corrosion resistance and durability, making it ideal for marine and industrial applications.

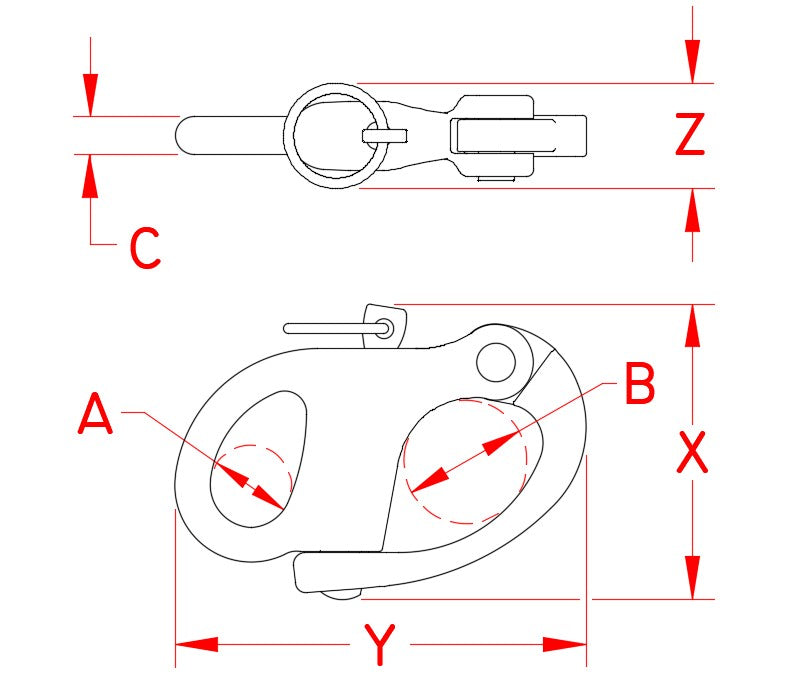

ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.



ITEM A B C X Y Z WLL (lb) WT (lb)
S0158-0001 0.42″ 0.56″ 0.16″ 1.49″ 2.16″ 0.42″ 1,000 0.10
S0158-0002 0.51″ 0.75″ 0.25″ 1.98″ 2.75″ 0.51″ 1,500 0.21
S0158-0003 0.68″ 1.10″ 0.31″ 2.30″ 4.00″ 0.76″ 2,000 0.50
