Suncor Delta Quick Link
Suncor Delta Quick Link

Suncor Delta Quick Link

SuncorSKU: S0160-DX03
Price:
$3.95

Description

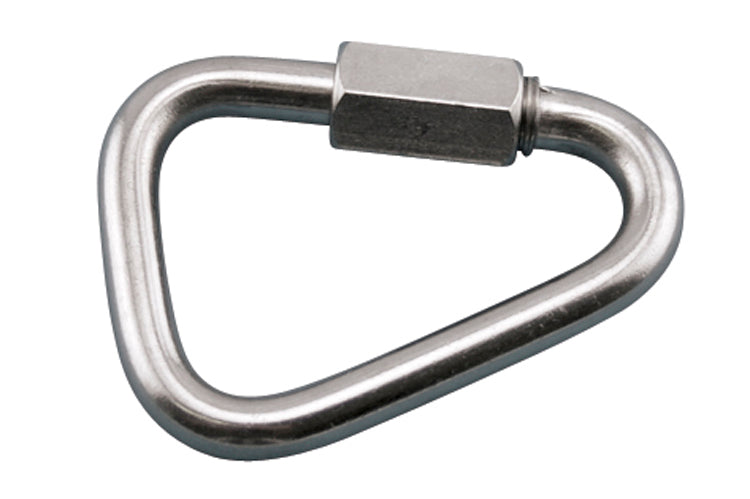

The Delta Quick Link is available in sizes ranging from 1/8″ to 23/32″ to ensure a perfect fit for every project. This link is made from grade 316 stainless steel for maximum corrosion resistance and durability. It is ideal for marine and industrial rigging and linking applications.



ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.



ITEM A
(size)		 B C D X Y Z WLL
(lb)		 WT
(lb)
S0160-DX03 1/8″ 1.17″ 0.93″ 0.23″ 1.21″ 1.40″ 0.27″ 175 0.02
S0160-DX04 5/32″ 1.33″ 1.07″ 0.23″ 1.37″ 1.58″ 0.31″ 300 0.03
S0160-DX05 3/16″ 1.53″ 1.18″ 0.23″ 1.60″ 1.96″ 0.34″ 400 0.05
S0160-DX06 1/4″ 1.70″ 1.37″ 0.31″ 1.83″ 2.18″ 0.42″ 750 0.08
S0160-DX08 5/16″ 2.25″ 1.53″ 0.42″ 2.21″ 2.82″ 0.53″ 1,400 0.18
S0160-DX10 3/8″ 2.66″ 1.83″ 0.50″ 2.62″ 3.41″ 0.65″ 2,100 0.35
S0160-DX12 1/2″ 3.26″ 2.08″ 0.56″ 2.96″ 4.06″ 0.71″ 3,200 0.55
S0160-DX14 9/16″ 3.77″ 2.26″ 0.67″ 3.38″ 4.85″ 0.87″ 5,400 0.93
S0160-DX16 5/8″ 4.21″ 2.42″ 0.75″ 3.68″ 5.53″ 1.02″ 7,000 1.40
S0160-DX18 23/32″ 4.72″ 2.62″ 0.91″ 4.07″ 6.05″ 1.18″ 9,200 1.95
