Description
Grade: 316-NM Stainless Steel
Specifications: Fed. Spec. RR-C-271, Type IVA, Class 2 | ASME B30.26-2010 | MIL-DTL-32655

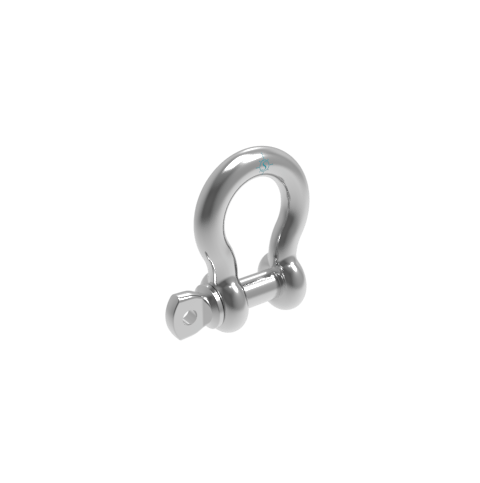

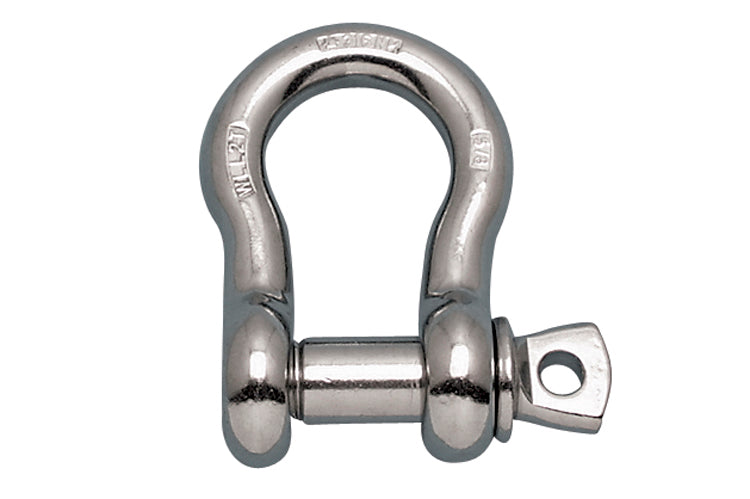

This Anchor Shackle is made from grade 316-NM stainless steel and features an oversize screw pin. The stainless steel Anchor Shackle is ideal for salt water applications. The Anchor Shackle is primarily used to connect the anchor to the chain.

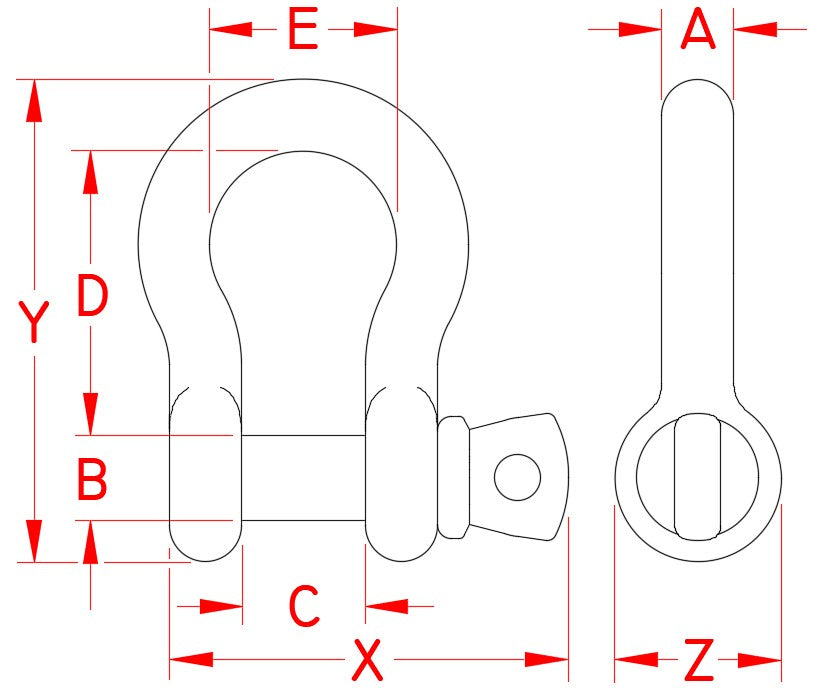

ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.
ITEM
A (size)
B
C
D
E
X
Y
Z
WLL (lb)
WT (lb)
S0116-FS05*
3/16″
0.26″
0.41″
0.83″
0.61″
1.25″
1.43″
0.53″
650
0.06
S0116-FS07
1/4″
0.31″
0.47″
1.11″
0.75″
1.56″
1.80″
0.61″
1,000
0.10
S0116-FS08
5/16″
0.38″
0.53″
1.20″
0.80″
1.84″
2.06″
0.73″
1,300
0.16
S0116-FS10
3/8″
0.44″
0.66″
1.41″
1.00″
2.26″
2.42″
0.92″
1,500
0.29
S0116-FS12
7/16″
0.50″
0.72″
1.77″
1.10″
2.89″
2.50″
1.01″
2,000
0.42
S0116-FS13
1/2″
0.63″
0.82″
1.83″
1.20″
2.90″
3.20″
1.17″
3,000
0.67
S0116-FS16
5/8″
0.75″
1.02″
2.41″
1.60″
3.41″
4.18″
1.46″
4,000
1.27
S0116-FS20
3/4″
0.88″
1.25″
2.84″
1.90″
4.90″
3.90″
1.74″
6,000
2.11
S0116-FS22
7/8″
1.00″
1.48″
3.30″
2.20″
5.75″
4.78″
1.92″
8,000
3.23
S0116-FS25
1″
1.13″
1.70″
3.80″
2.60″
5.35″
6.44″
2.20″
10,000
4.62
S0116-FS32
1-1/4″
1.38″
2.03″
4.69″
3.20″
6.69″
7.85″
2.77″
14,000
9.58
*Meets the requirements of MIL-DTL-32655 (excluding S0116-FS05)
