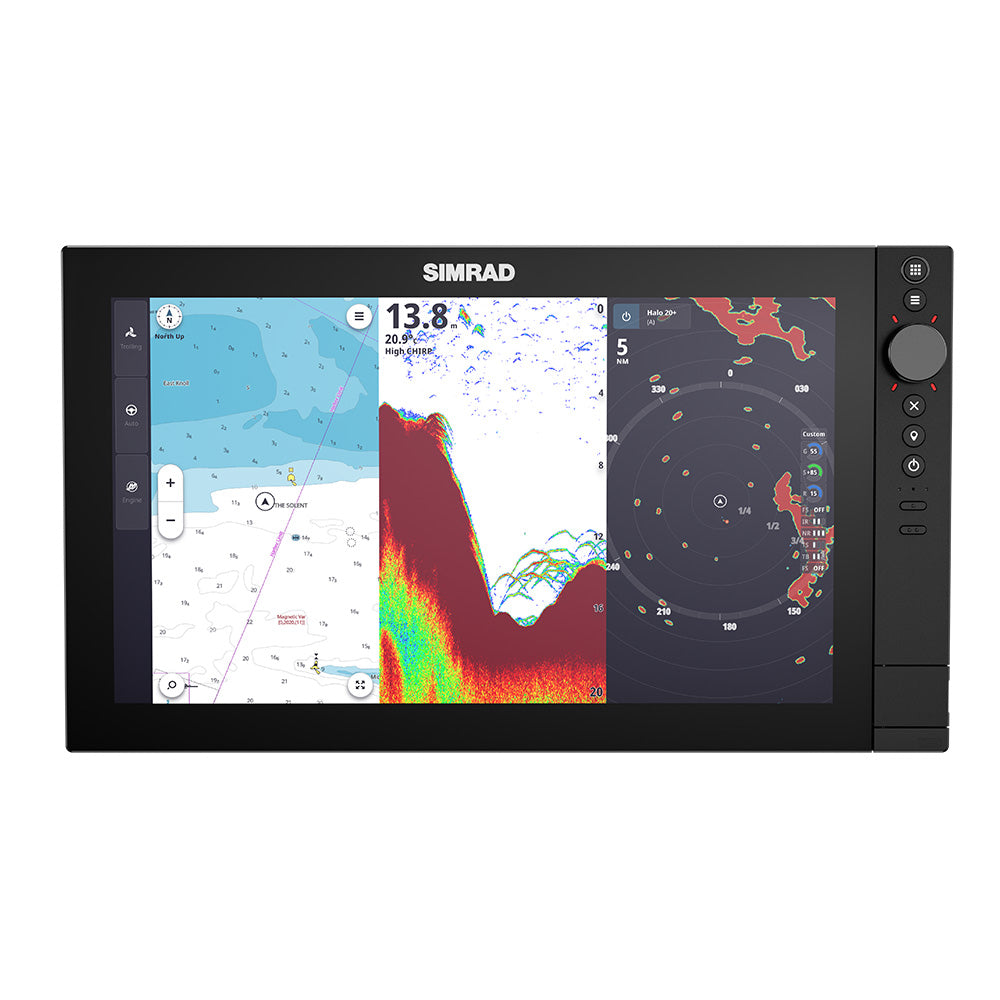

NSS 4-16 16" Combo with U.S. C-MAP
Redesigned inside and out, NSS® 4 is SLEEKER, FASTER and SMARTER. The touchscreen, rotary dial, and keypad all work in harmony for superior control. Inside, our most powerful 8-core processor delivers smoother transitions and faster updates. Advanced fishfinding capabilities such as dual channel 1kW CHIRP sonar, Active Imaging™ HD support, and enhanced customization complete the package for our premium, all-in-one sports chartplotter and fishfinder. Perfect for sportfishing enthusiasts and cruisers.
SLEEKER - Next-gen design, inside & out
NSS® 4 looks stunning from the moment you lay eyes on it. A trio of hybrid control options revolutionizes the way you interact with your display, and an updated glass-to-edge design delivers a more premium look to the helm, revolutionizing dashboards instantly.
FASTER - Lightning-quick user experience
At the heart of NSS® 4 lies our most powerful Qualcomm® 8-core processor, delivering smoother page transitions, faster auto-routing, and ultimately, faster boating. Speed is also built into the latest operating system, which is quicker at every touchpoint with a streamlined UI.
SMARTER - Advanced angling
A dual channel 1kW CHIRP echosounder provides enhanced target separation and a clearer and more complete picture of the waters below, and support for the stunning Active Imaging™ HD means images of underwater structure and fish are clearer than ever.
Integrated for the future
Our latest OS has integration at its core. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...
NSS® 4 also boasts extensive (and always expanding) support for third-party techs such as Mercury® SmartCraft Connect, SiriusXM®*, CZone® digital switching, and much more.
Features:
- A trio of hybrid controls: touch, rotary, and keypad
- Premium glass-to-edge design
- Lightning fast Qualcomm® 8-core processor
- Redesigned operating system
- Built-in dual channel 1kW CHIRP echosounder
- Support for Active Imaging™ & Active Imaging™ HD
- Support for C-MAP® X-gen charts and others
- Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible
- Compatible with Simrad suite: S3100H & S5100 sonar modules, radar, and more...
- Support for Mercury®, CZone®, SiriusXM®, and more...
Specifications:
- Ethernet: 1 port (X-Coded M12 GbE)1 port (yellow, 5-pin)
- NMEA 0183: No
- NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN
- PC Connectivity: No
- Video: HDMI Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera
- WiFi: Wi-Fi 5 (IEEE 802.11ax)
- Backlight Color: White
- Resolution: 1920 x 1080
- Screen Brightness: >1200 nits
- Size and Type: 16" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses
- Viewing Angles: 80° top/bottom, 80° left/right
- Power Consumption, max.: 43.5 W
- Recommended Fuse Rating: 5 A
- Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max)
- Operating Temperature Range: -15°C to 55°C (5°F to 131°F)
- Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
- Waterproof rating: IPX6 and IPX7
- AIS: Receive AIS data over NMEA 2000
- Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible
- Cartography included: Discover X chart card of North America
- Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content)
- Digital Switching: Czone / DDS
- External Storage: 2x (microSD®, SDHC®)
- GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS SBAS (WAAS)
- Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars
- Sonar (inc. compatibility): Two 9-pin Xsonic 1 kW Sonar ports. Sonar port: Low, Medium, and High Chirp up to 1kW RMS: Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Imaging port: Sonar: Low, Medium, and High Chirp up to 1kW RMS. Downscan: 455 kHz, 800 kHz, 700 kHz CHIRP, 1200 kHz CHIRP. Sidescan: 455 kHz, 800 kHz, 455 kHz CHIRP, 1200 kHz CHIRPNetwork Sonar modules S3100, S5100
- Weather: Sirius XM via WM4 module (USA only) *Subscription required, sold through SiriusXM
- Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network
- Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft)
- Dimensions (W x H x D): Display only: 423.5 mm x 241.6 mm x 88.6 mm (16.67″ x 9.51″ x 3.49″)With bracket: 453.4 mm x 266.4 mm x 88.6 mm (17.85″ x 10.49″ x 3.49″)
- Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied)
- Weight: 3.8 kg (8.38 lb)
- Warranty Period: 2 Years
- Interface: Hybrid multi-touch screen, buttons, and rotary knob
Specifications:
- Cartography Brand: C-Map Reveal X
- Screen Size: 16"
- Touchscreen: Yes
- Transducer Included: No
- Box Dimensions: 7"H x 14"W x 25"L WT: 15.1 lbs
- UPC: 9420064129980
