Description

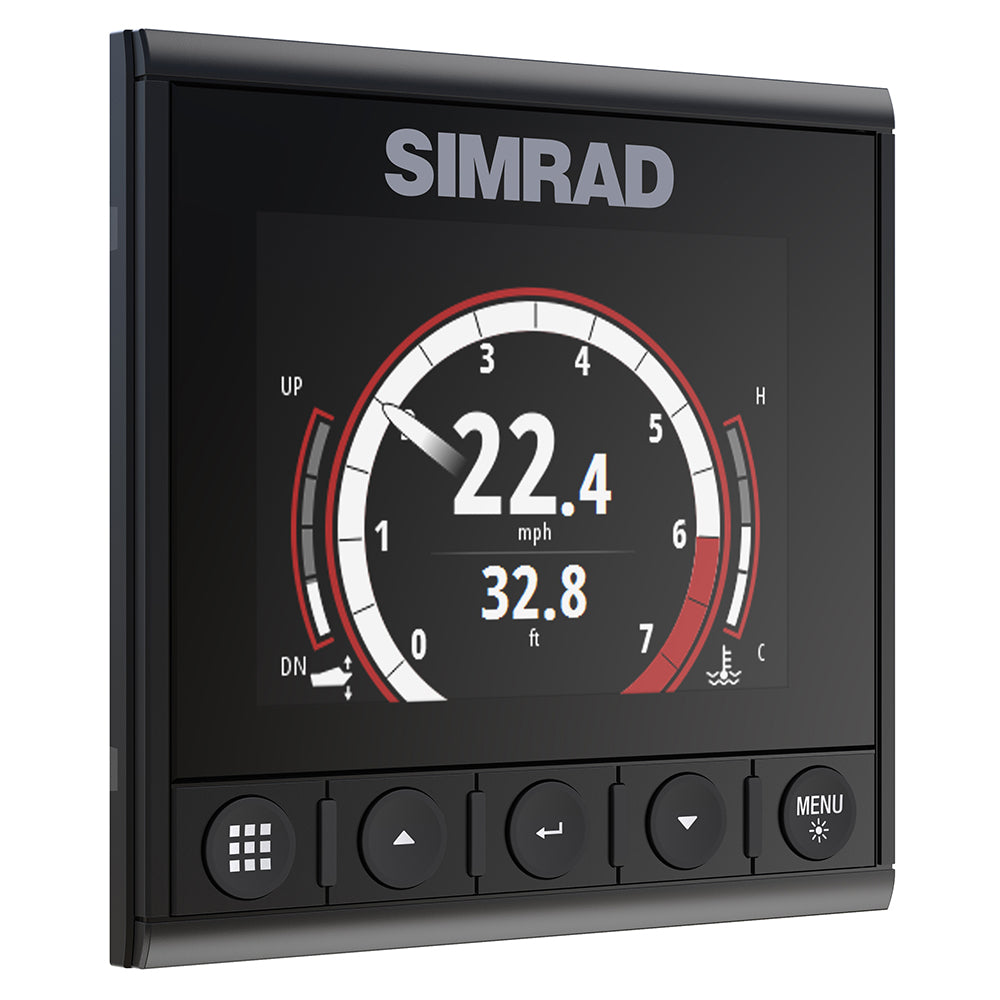

IS42 Smart Instrument Digital Display
The IS42 is a smart multi-purpose instrument featuring a full color display and modern glass helm styling. View wind, speed, depth, engine data, autopilot status and more at a glance, or add the optional OP12 keypad to take full control of your Simrad autopilot system. The IS42 integrates brilliantly with Simrad multifunction displays and glass helm systems, or can function as a standalone instrument display and autopilot controller aboard smaller vessels.
Features:
Optically bonded 4.1" color display
Multi-purpose digital instrument
Display wind, speed, depth, engine data, autopilot status and more
Intuitive operation
Easy installation
Add an OP12 keypad for full Simrad autopilot control
Compatible with Simrad AC12, AC42, NAC-2 and NAC-3 autopilot computers
Low-profile glass helm design
Low power consumption
Certified NMEA 2000® connectivity
Specifications:
Dimensions: 118 x 115 x 28mm (4.6" x 4.5" x 1.1")
Weight: 0.32kg (0.7lbs)
Power Consumption: 1.8 Watts (MAX)
Network Load: 3 LEN
Color: Black
Display Size: 4.1" (diagonal). 4:3 Aspect ratio
Display Type: Transmissive TFT-LCD, bonded. White LED backlight
Dsiplay Resolution: 320 x 240 pixels
Illumination: White for day mode. Red, green, blue or white for night mode
Environmental Protection, Waterproof: IPx7
Environmental Protection, Humidity: up to 95% RH
Compass Safe Distance: 300mm (1.0")
Temperature Operating: -15 to +55°C (5°F to +131°F)
Temperature Storage: -30 to +70 °C (-22 to +158° F)
