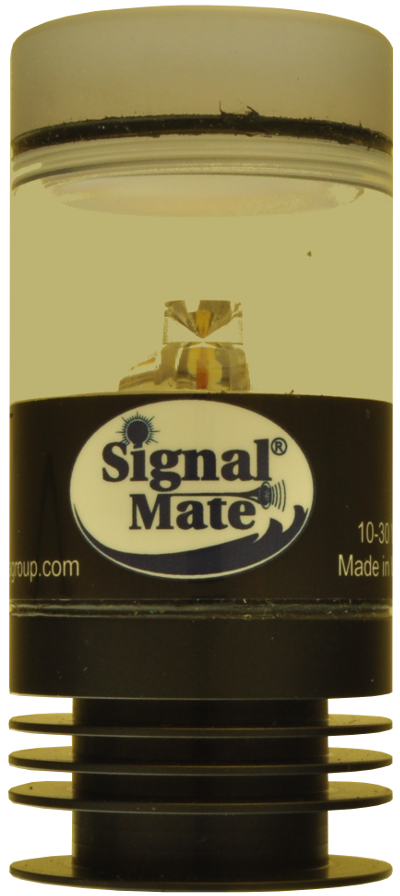

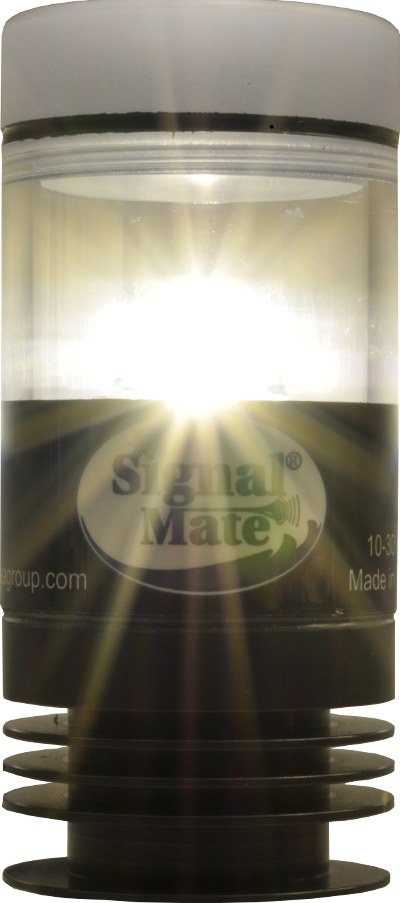

Signal Mate 3NM White Anchor Navigation Light without photo-cell

Designed for maximum reliability and performance, the Signal Mate 3NM White Anchor Light is a USCG-certified, all-round LED navigation light ideal for commercial, recreational, and military vessels. Engineered for powerboats and sailboats up to and over 50 meters (164 feet), this light delivers exceptional 360° visibility and long-lasting durability in even the harshest marine environments.

Key Features:

• Visibility Range: 3 Nautical Miles (360° all-round light)

• Certification: USCG Certified, ABYC A-16, 72 COLREGS compliant

• Boat Size Compatibility: Suitable for vessels up to and over 50 meters (164 ft)

• Voltage Range: 10–30 VDC

• Current Draw: 0.160 amps @ 12 VDC

• LED Lifespan: 50,000 hours – high-brightness white LED

• LED Specs: 1W, constant current driver, passive EMI filtering

• Construction: Hard-coated anodized aluminum body with polycarbonate lens

• Wiring: 2.5 ft of 20 AWG UV-protected, tinned marine-grade wire

• Durability: Water and vibration proof

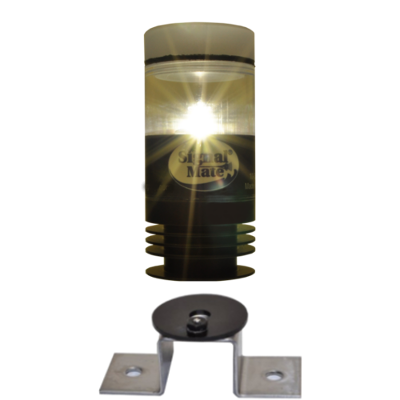

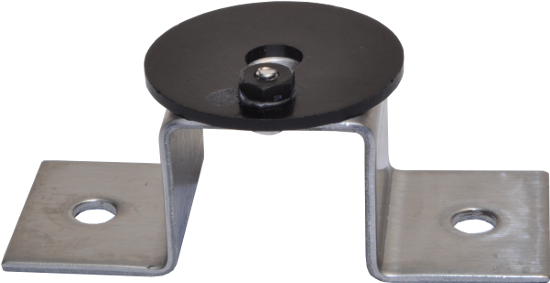

• Mounting: ¼”-20 female threads with included BRKT360 mounting bracket

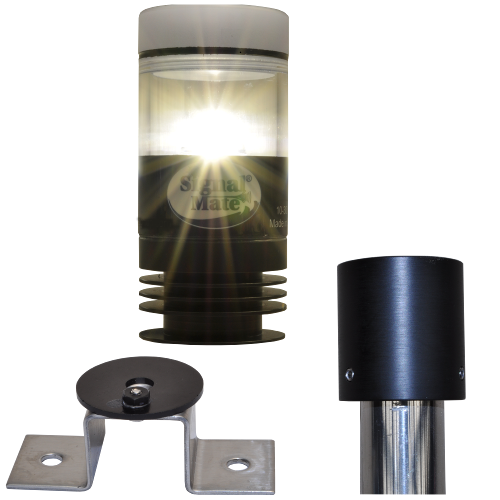

• Optional Adapters: 1” PADPT1 & ¾” PADPT75 pole adapters available

• Dimensions: 3.25" (H) x 1.5" (D)

• Weight: 6.4 oz

• Warranty: 5-Year Limited Warranty

• Made in the USA

Photo-Cell Option:

Choose the 3NM360WP model to add a built-in photo-cell for automatic dusk-to-dawn operation—ideal for extended deployments and energy efficiency.

Regulatory Notes:

This light meets or exceeds all requirements for inspected vessels under 20 meters. For inspected vessels over 20 meters, Underwriters Laboratories Standard UL 1104 certification is required. Signal Mate offers UL 1104 Certified models upon request.

 Signal Mate commercial UL 1104 Certified lights.
