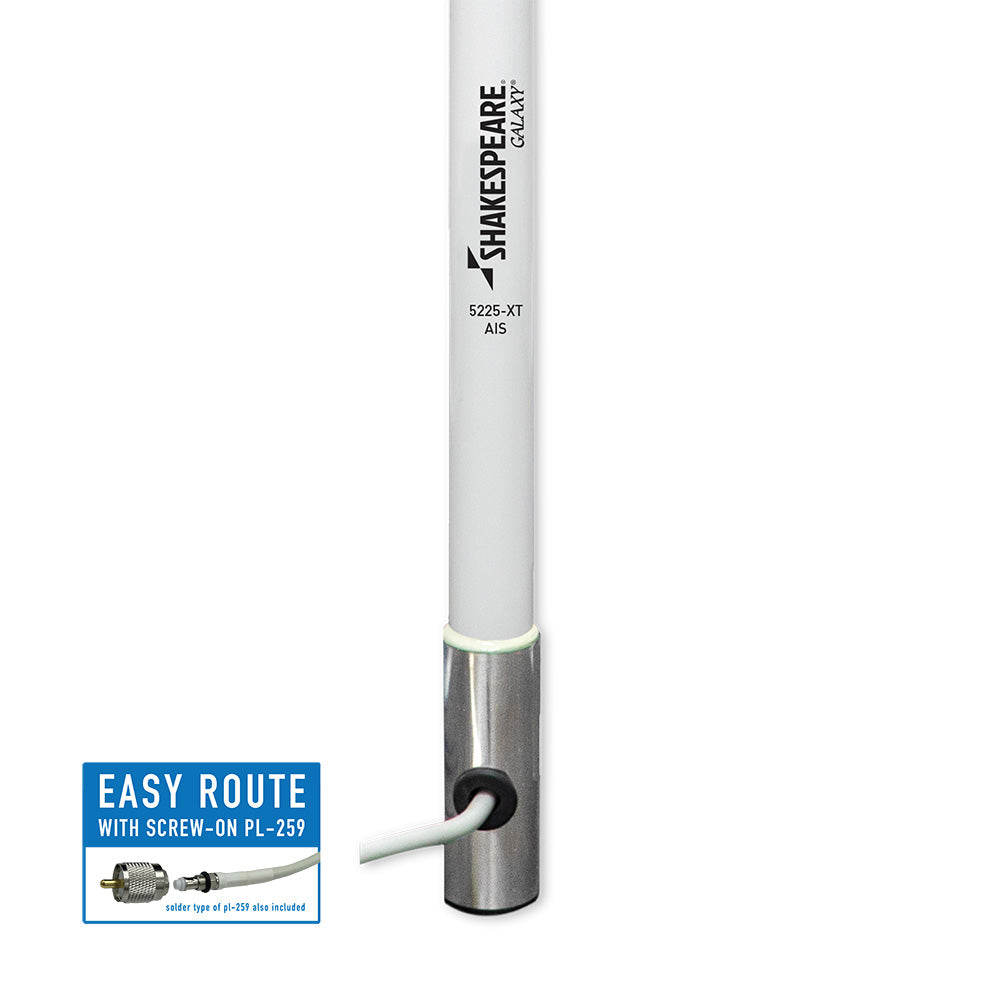

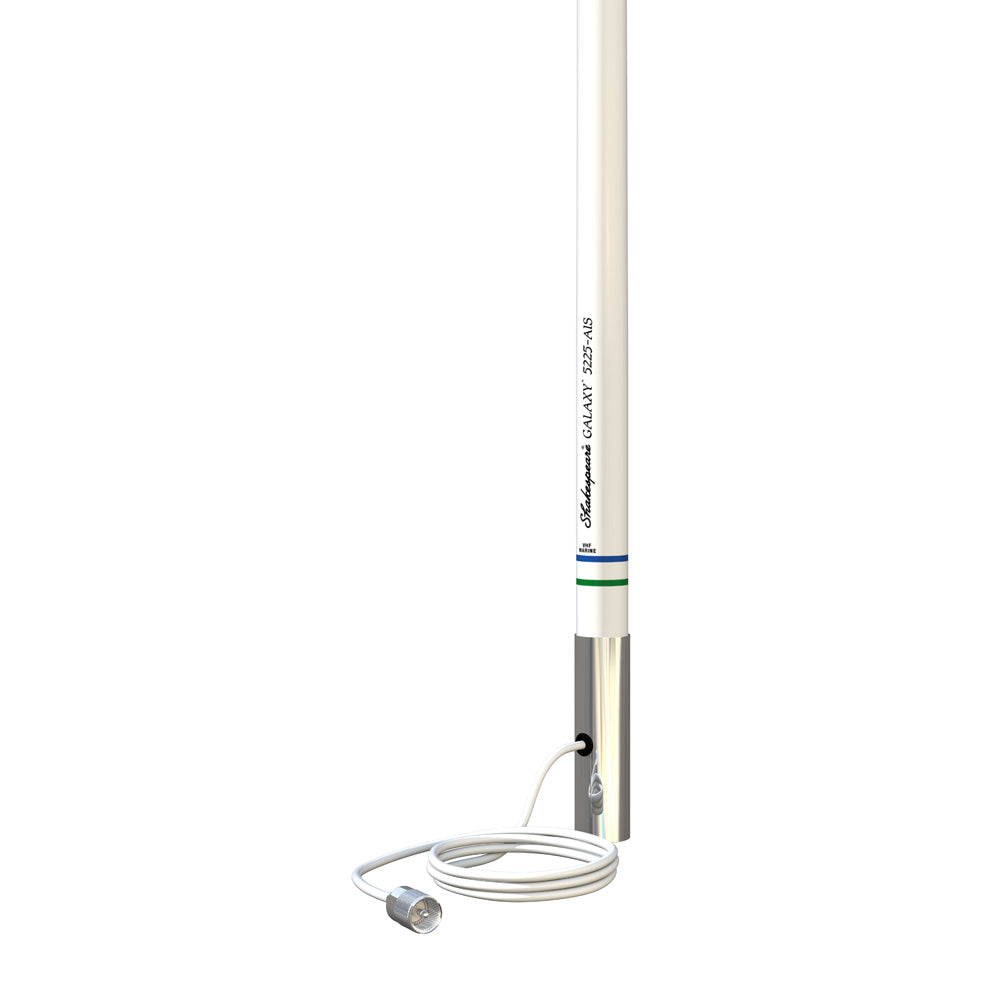

Cruise with confidence and communicate reliably over the AIS band using the Galaxy® AIS antennas. Specifically designed and tuned to work with all popular AIS transceivers.
Features:
Reduced length version
Specifications:
manuf part number 5225-XT-AIS
Antenna Length: 8ft.
Band: Broadband VHF
Antenna Gain: 6dB
Max. Input Power: 50 watts
SWR: Nominally 1.5:1 at 158 MHz
Bandwidth: 5 MHz within 2.0:1 VSWR
Ferrule: Stainless steel
Coax Supplied: 20ft. of RG-8/X
Connector Supplied: PL-259, not installed
Color/finish: Galaxy White
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: DC Grounded - The antenna will read shorted on continuity test
