Description
THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

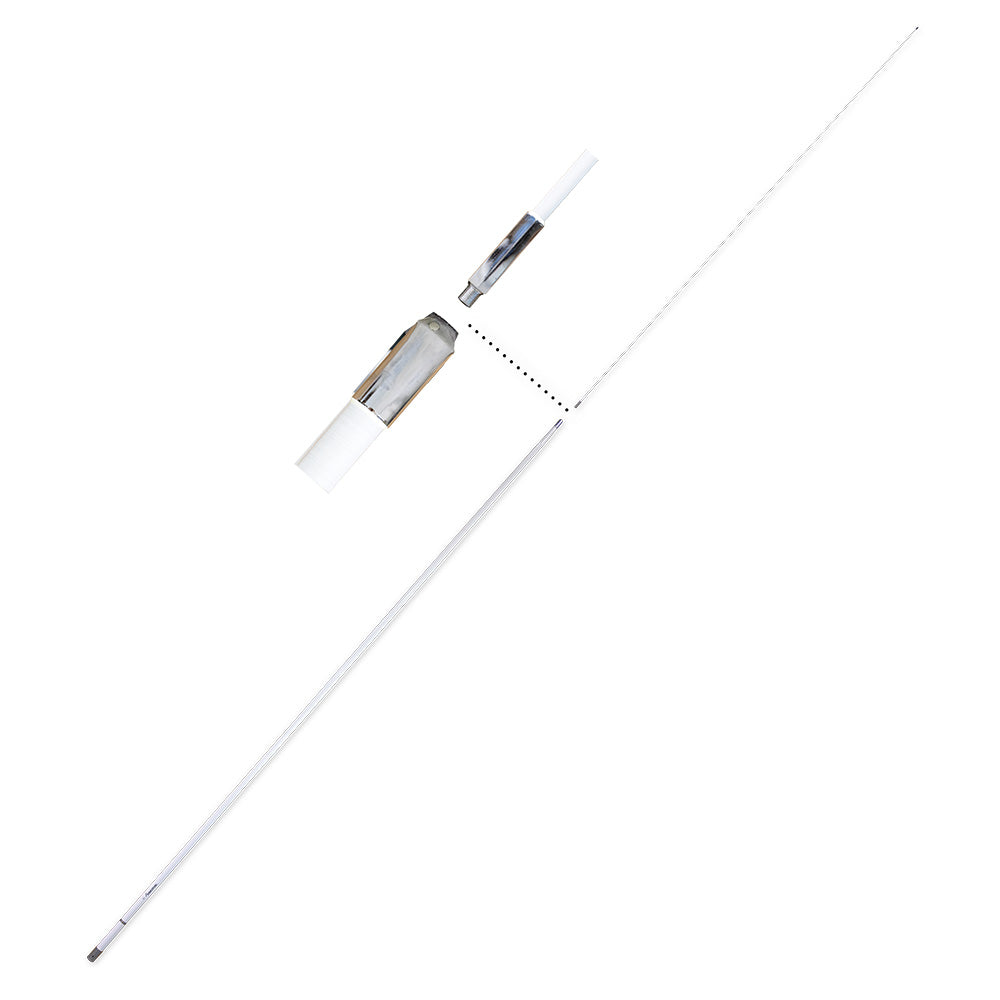

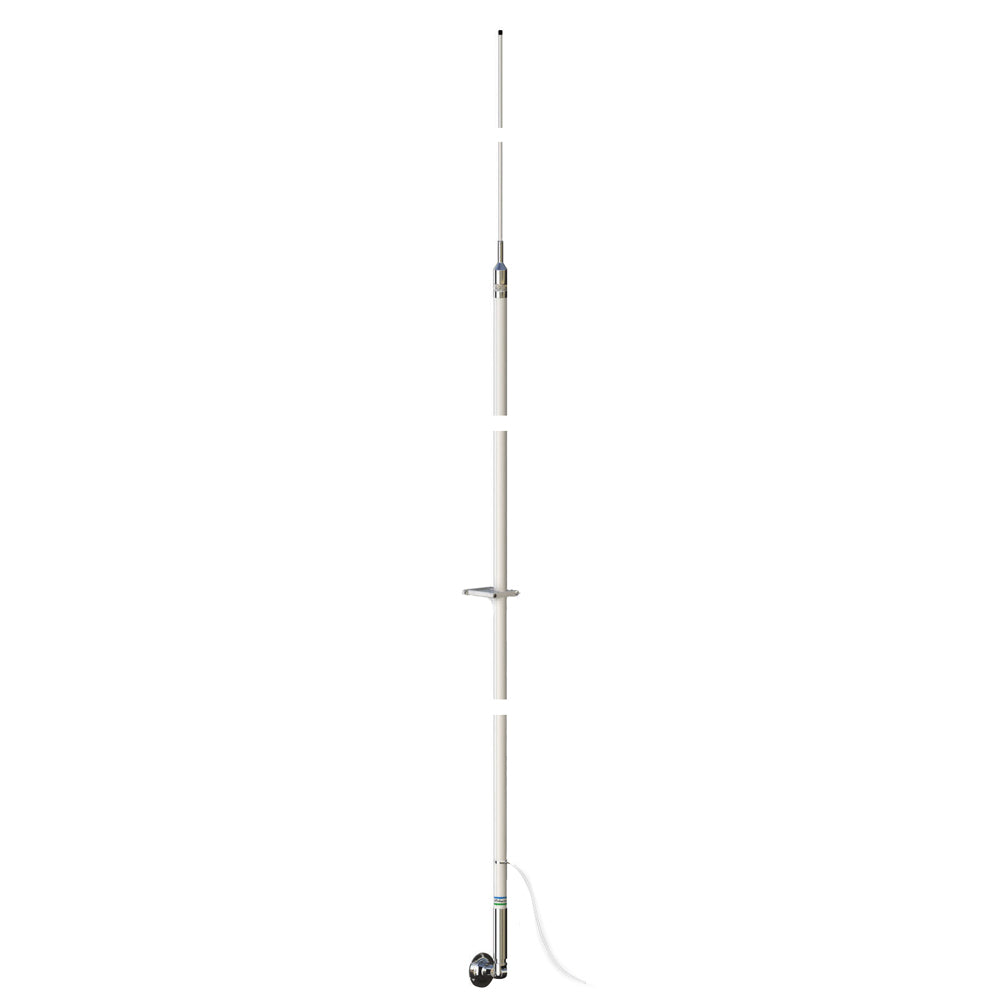

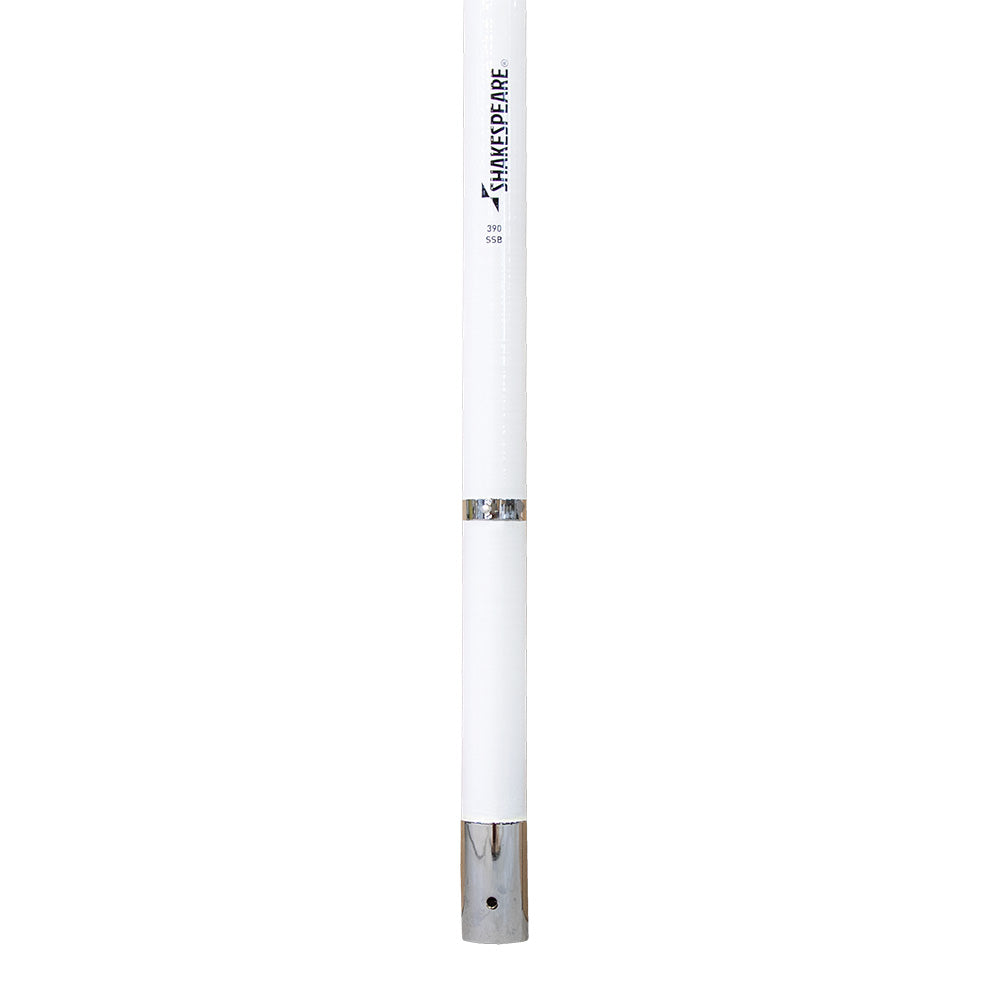

Shakespeare Style 390 SSB 23' LENGTH
WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)
This award-winning performer is often referred to as "the standard of the industry" by virtue of its capabilities and popularity. Reinforced insulating qualities allow input power up to 1 kw. Conductors are permanently sealed in Shakespeare white fiberglass.
Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread
Side feed termination band
Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting
Two sections: Base 162"; Tip 112"
Shakespeare Limited Warranty: 2 years
Technical Specifications:
Frequency:
2-30 MHz HF band with tuner
Bandwidth:
Resonant frequency 10.8 MHz
SWR:
N/A
Impedance:
(Ohms): N/A
Gain:
N/A
Max Input (Watts):
1000
DC Ground:
N/A
Termination:
Side Termination
Height (feet):
23
Polarization:
Vertical
Radiation pattern:
Omni-directional
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
