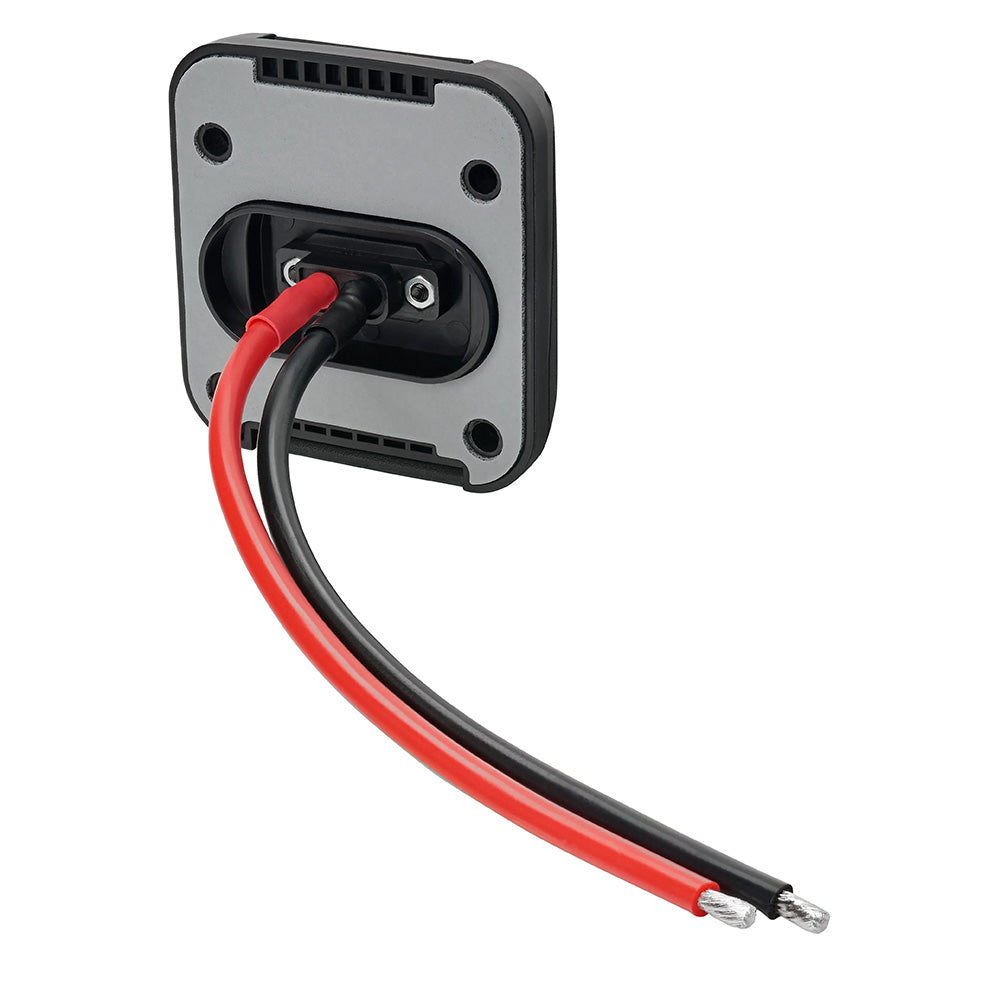

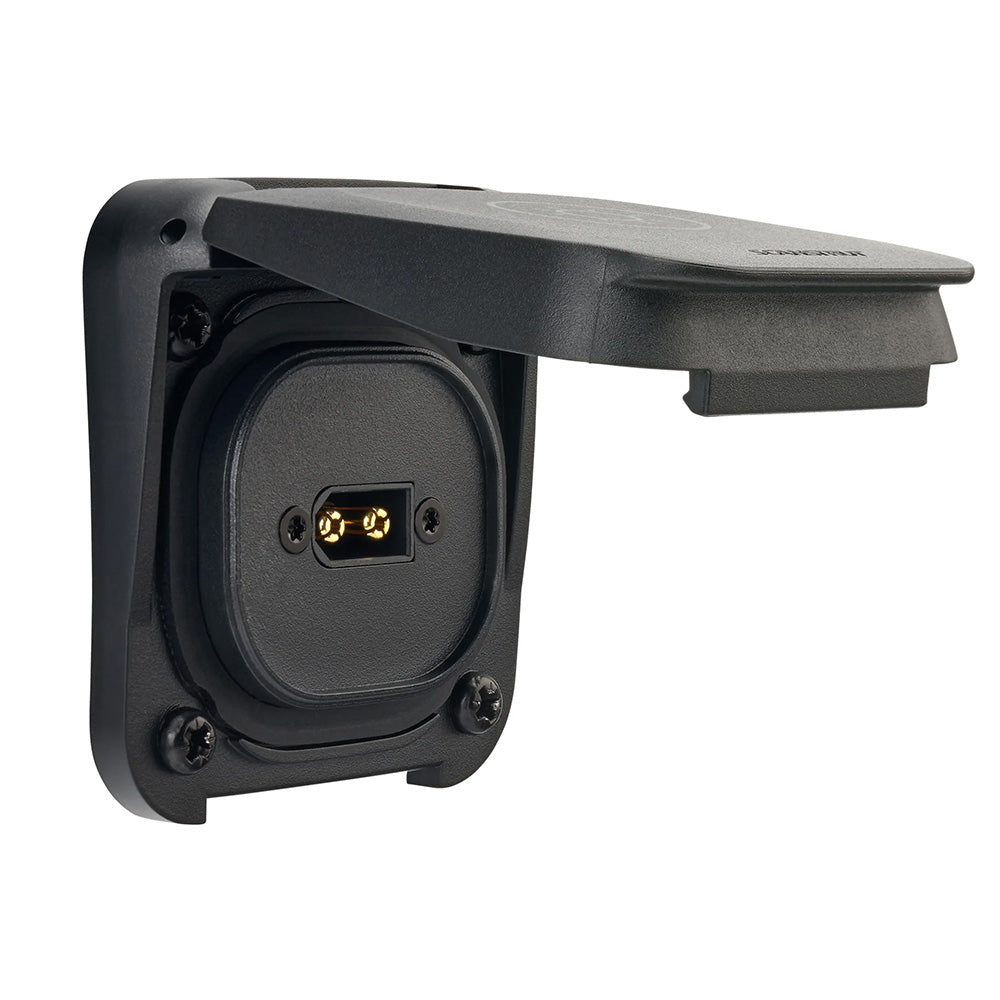

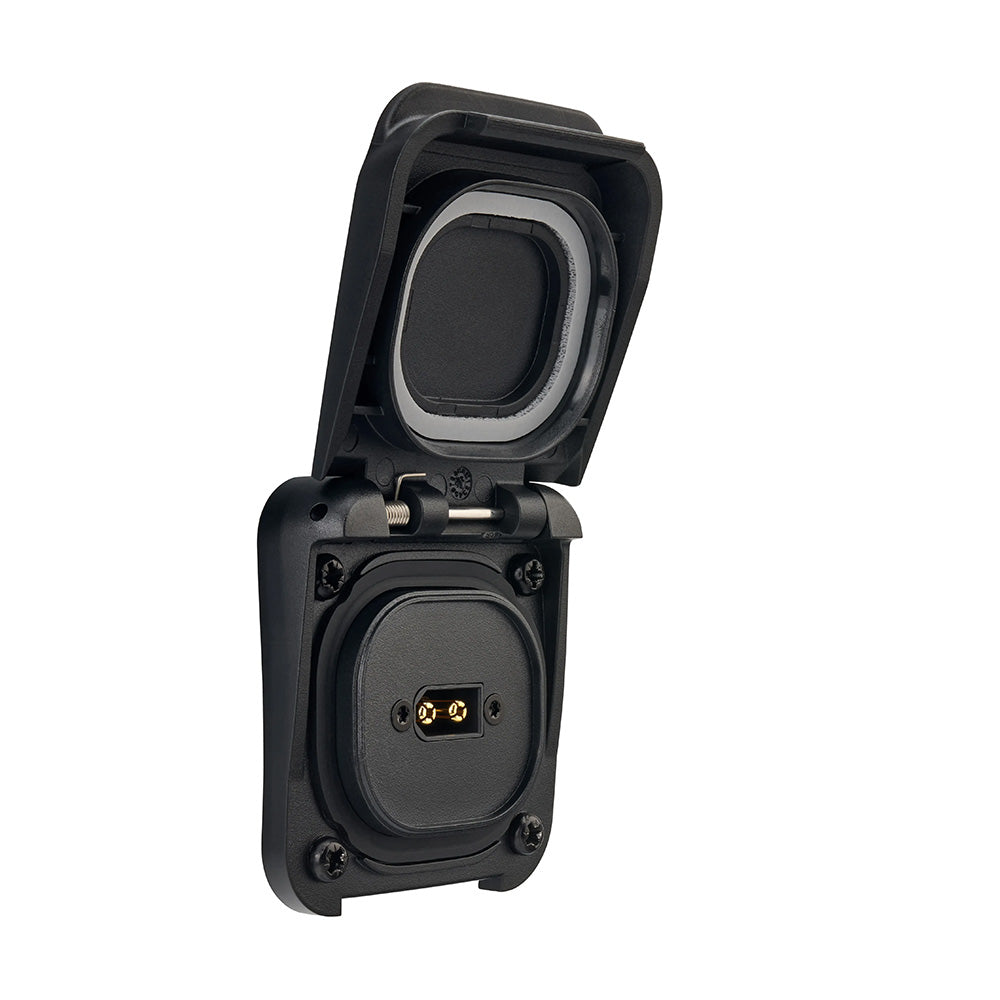

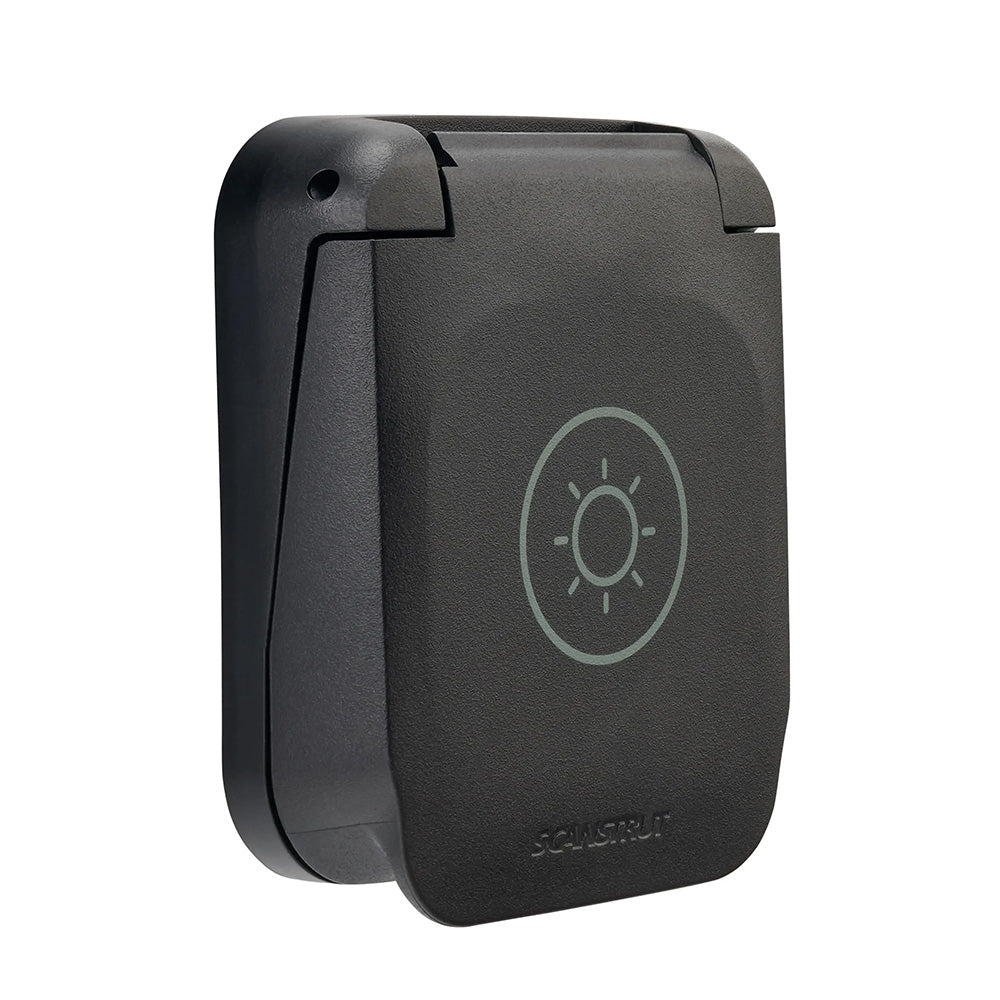

Ventura Series XT60 Solar Connection
Need quick and dependable outdoor access to an XT60? Meet the Scanstrut Ventura Series XT60 Solar Connection, your go-to power link for life off the beaten track.
Working seamlessly with the rest of the Ventura Series, integrating power, water, solar, and more into a single, cohesive design language.
Whether you're charging from solar panels at a remote campsite, powering a fridge in the back of your 4x4, or running gear from your overland trailer, Ventura delivers rock-solid reliability in every environment.
Built for the outdoors, its rugged, fixed design stays secure no matter the terrain, while the optimized cable fit supports higher voltages with ease.
From wild weekends in the mountains to long-haul road trips through the desert, Ventura keeps your adventure powered and ready to go.
Engineered with Scanstrut marine-grade innovation, these sockets undergo rigorous UV and waterproof testing (Waterproof Rating: IP68, IP69K) to withstand the harshest conditions. Crafted from 316 stainless steel, they ensure long-lasting durability and top-tier performance in any environment.
Backed by extensive research and development, the Ventura Series offers a sleek, compact, and uniform design, seamlessly integrating with other exterior sockets for power, water, and solar connections.
Stay powered and adventure-ready, choose the Scanstrut Ventura Series for uncompromising outdoor connectivity.
Features:
Connector Type Amass XT60EW-M Male Waterproof Type
IP68, IP69K Waterproof (with lid closed)
Premium click-to-close design
Easy install
Standard 25mm (1.00”) Holesaw Installation
Built-in gasket for a watertight seal
Cover Sprung to Fully Open 180°
Marine-Grade 316 Stainless Steel Components
90° Holding Bump-Feature
UV Resistant
Specifications:
Connection Type: Amass XT60EW-M Male Waterproof Type
Compatible Connectors: XT60W-F Female Waterproof Type (IP65 in use), XT60-F Standard Female Type
Connector Max Current: 30A Continuous, 60A Instantaneous
Connector Max Voltage: Rated 500V DC
Max Power Delivery (12V Input): 360W
Max Power Delivery (24V Input): 720W
Max Power Delivery (48V Input): 1440W
Cable Size: 4mm² / 12AWG
Cable Length: 150mm (6”) Tinned Copper Wire
Cable Bend Radius (4xD): 18mm (0.71”)
Waterproof Rating: IP68, IP69K Front only when lid closed
