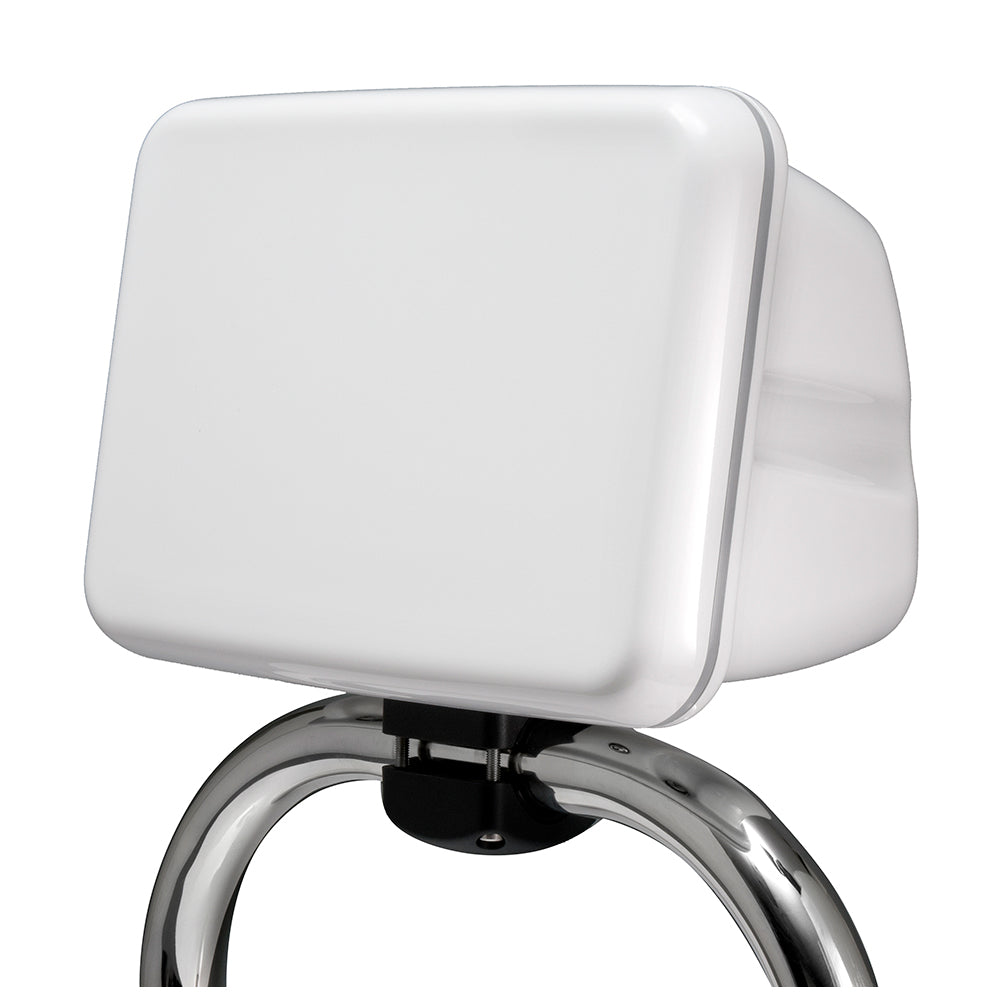

Scanstrut Rail Mounted Pod Compact - Up to 8" Displays

Rail Mounted Pod Compact - Up to 8" Displays

Rail Mounted Pod for 8” Displays or Standard Instruments

Designed with the latest generation screens in mind, the new Scanpod Range is as low profile as it can get. Achieve a neat and streamlined look overall, perfect for installations where there is limited space available.

Solve the challenge of finding a level mounting surface to install your displays onto your powerboat, RIB or sailboat wheelhouse.

Features:

Added Strength

Inner bracing plate secures the Deck  base to the pod and gives increased rigidity to the assembly eliminating potential damaged from shock and vibration.

Hassle Free Install & Service

Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.

Increased Protection

Pod seal is manufactured from a high tear strength silicone; it has a very high resistance to heat and UV so you can have confidence that it won’t deteriorate over time.

Supplied Uncut

As standard you will receive your Scanpod uncut (for tips on cutting, please view the FAQ tab). For larger orders, a factory cutting service is available.

Universal Fixing

Fits pedestal rails from 25mm to 33.7mm (0.98” to 1.33”). Fit your display onto standard and curved rails.

Great Viewing Options

Viewing angle can be set upon installation. Cables are routed internally through the clamp and onto the rail.

Specifications:

• Mounting Style: Rail
• Usable Face: 10.5"W x 6.6"H
• Box Dimensions: 9"H x 10"W x 13"L WT: 4.9 lbs
• UPC: 5060114796294
