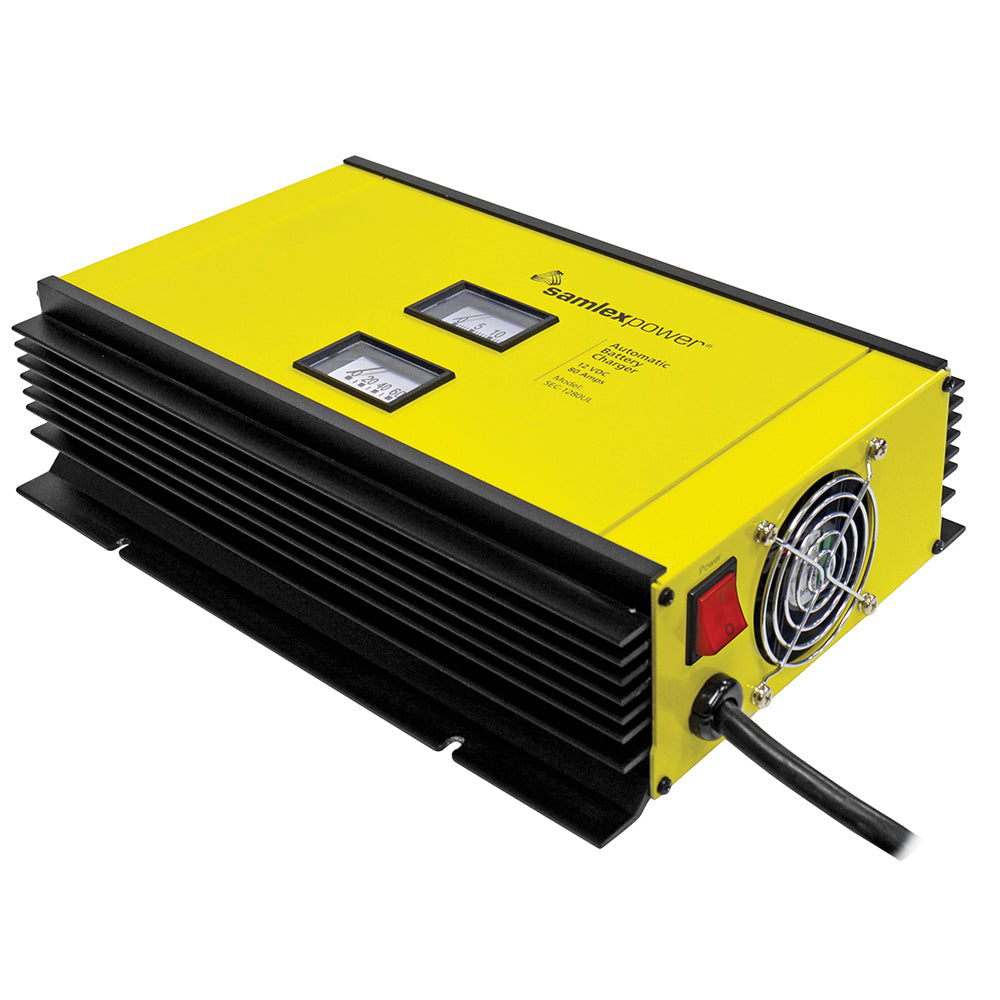

This advanced fully automatic three-stage 80 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.
Features:
Switch mode technology for high efficiency, lightweight and quiet operation
Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
Can charge 2 banks of batteries simultaneously, no isolator necessary
Can be used as a power supply or DC UPS when used in conjunction with a battery
User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries
“Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
Voltmeter and Ammeter for monitoring
Fan cooled based on output current
Protections: Short circuit, overload, reverse battery connection and over temperature
Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively
Specifications:
Input: 120 VAC 60 Hz or 230 VAC 50 Hz
Output: 12 VDC
Amps: 80
Remote Control: 900-RC
Weight: 9 (lbs)
Weight: 4.1 (kg)
Dimensions: 15 x 9.61 x 3.82 (in)
Dimensions: 381 x 244 x 97 (mm)
Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
Warranty: 2 Year Limited
Applications:
Automotive
Recreational vehicles
Marine
Communications sites
Battery back-up systems
