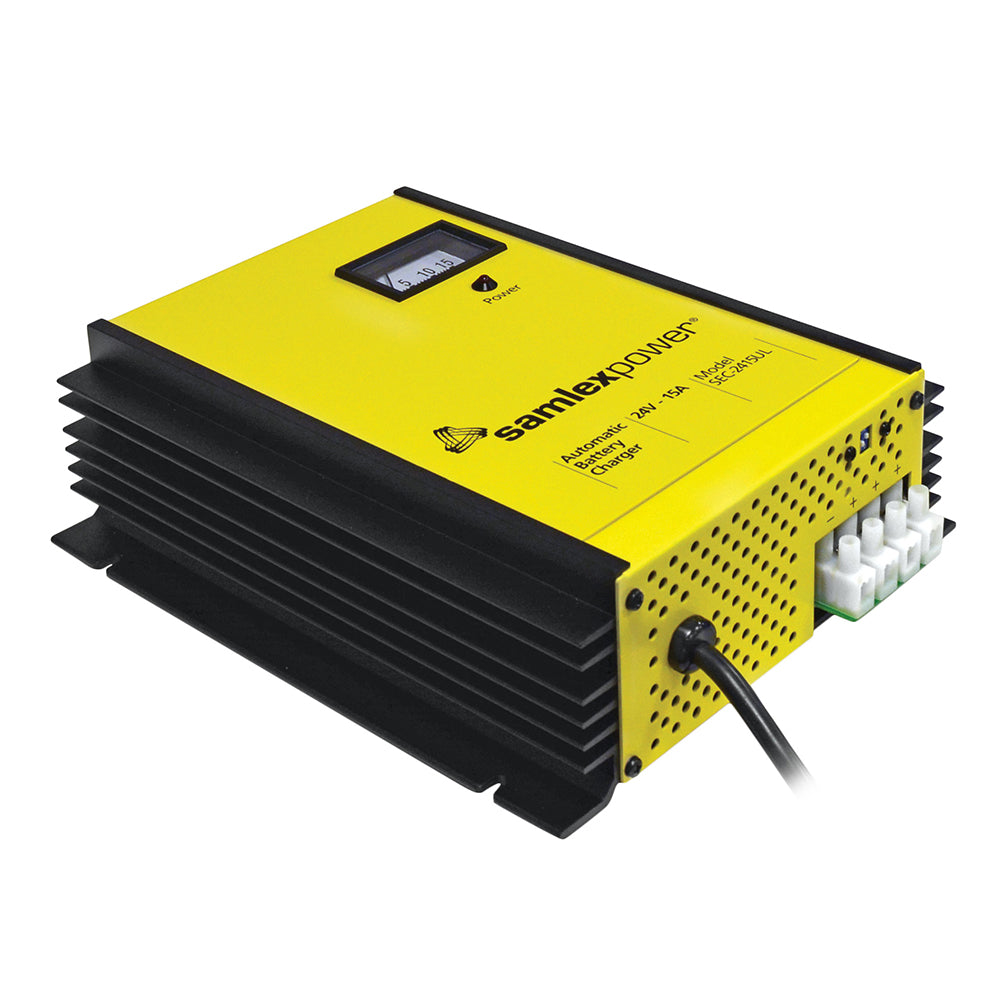

This advanced fully automatic three-stage 15 Amp battery charger is ideal for charging all types of 24 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 3 separate battery banks.
Features:
High efficiency
Commercial Grade
Lightweight
Quiet operation
Industry Proven Design – 1000s of units in operation
2 or 3 stage charging (user selectable)
120 or 230 VAC, 50/60 Hz (user selectable)
Voltage meter display – Ammeter and LED power status
Charge 3 banks of batteries at once – no isolator necessary
Specifications:
Input: 120 VAC or 230 VAC
Output: 24 VDC
Amps: 15 Amps
Remote Control: 900-RC
Weight: 6 (lbs)
Weight: 2.72 (kg)
Dimensions: 10.5 x 8.5 x 3 (in)
Dimensions: 26.7 x 21.6 x 7.6 (cm)
Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
Warranty: 2 Year Limited
Applications:
Automotive
Recreational vehicles
Marine
Communications sites
Battery back-up systems
