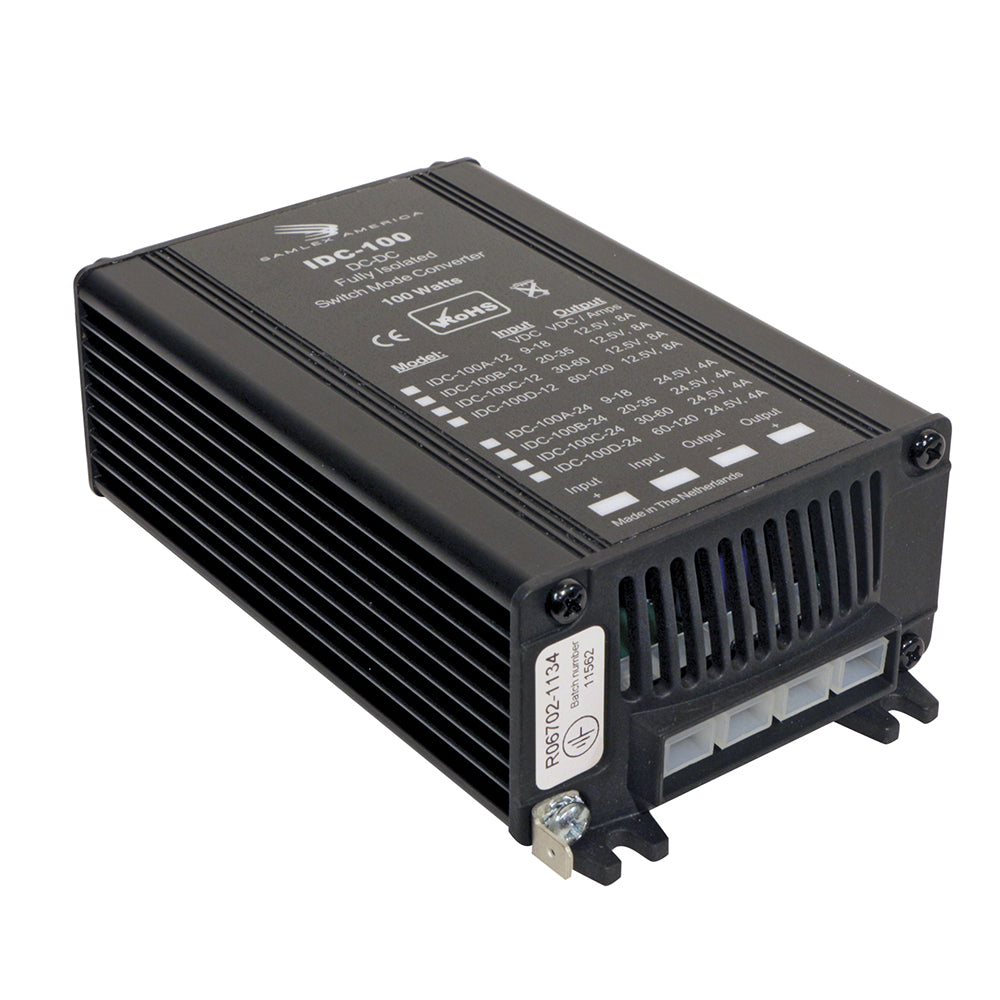

IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100D-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 60-120 Volts and rated output current of 8 Amps (at 120 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors.
Features:
Fully Isolated
Short Circuit Protected
Current Limited
Specifications:
Input: 60-120 VDC
Output: 12.5 VDC
Amps: 8 Amps
Weight: 1.2 (lbs)
Weight: 0.54 (kg)
Dimensions: 6 x 3.5 x 1.9 (in)
Dimensions: 15.2 x 8.9 x 4.8 (cm)
Warranty: 2 Year Limited
Applications:
Earth moving equipment
Heavy trucks
Buses
Marine vehicles
CB radios
12 Volt lighting systems
AM/FM sound systems
