Description

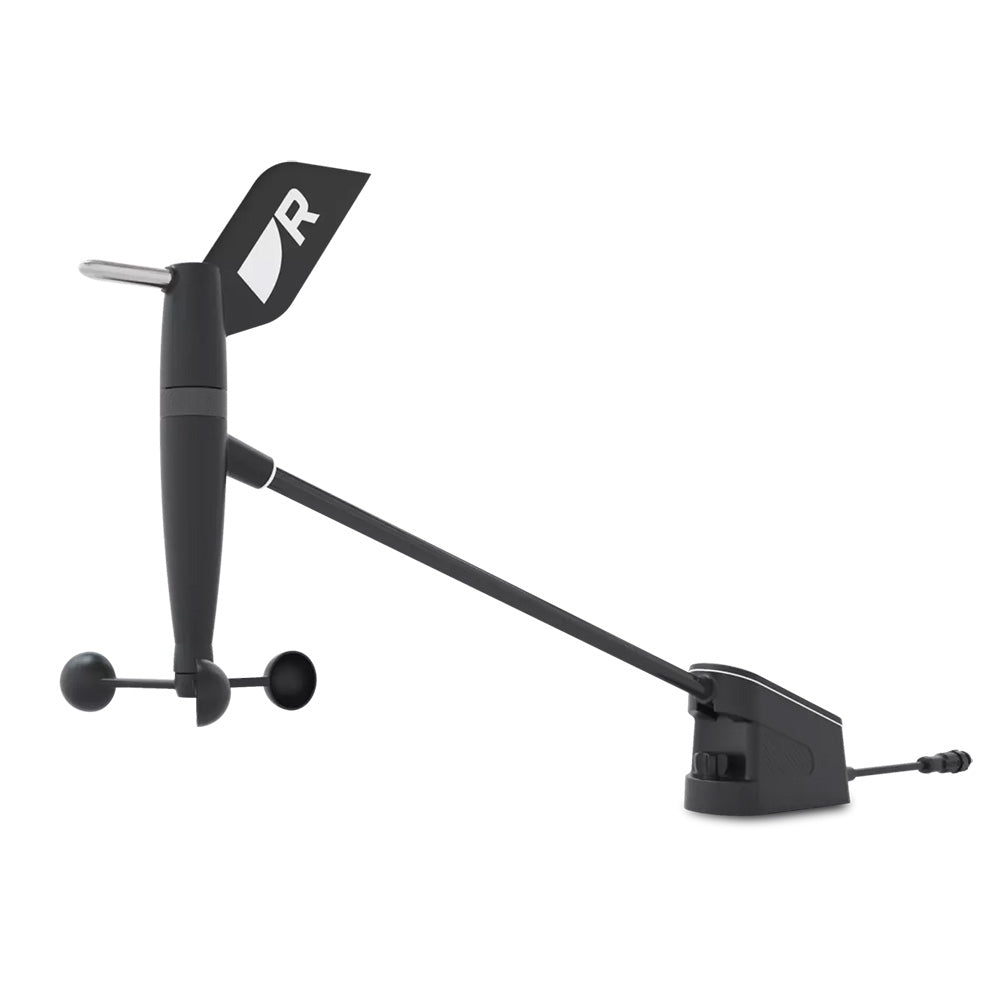

RSW Wired - Smart Performance Wind Transducer - Short Arm with 30M Cable
The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30-meter Smart Wind mast cable as standard.
Install & Go!
Raymarine Smart Wind technology delivers expert-level accuracy without the need for additional, expensive processors or extensive calibration and set-up.
Finely Tuned
Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the masthead is accurate and consistent.
Sail Smarter
Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.
Specifications:
Length
Wind transducer (including cable): 657.762 mm (25.90 in)
Wind transducer (excluding cable): 540.712 mm (21.29 in)
Wired gateway: 155.61 mm (6.13 in)
Width
Wind transducer: 46.96 mm (1.85 in)
Wired gateway: 47.38 mm (1.88 in)
Height
Wind transducer: 305.86 mm (12.04 in)
Wired gateway: 30.61 mm (1.21 in)
Power
Nominal supply voltage: 12 V dc (via SeaTalk NG)
Operating voltage range: 9 V to 16 V dc
Power Consumption: < 100 mW
Fuse rating: Ensure that the SeaTalk NG backbone is protected by a 5 A fuse
NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating: 1
Environmental
Operating temperature range: -25°C to +55°C (-13°F to +131°F)
Storage temperature range: -30°C to +70°C (-22°F to +158°F)
Relative humidity: Masthead: 100%/Below deck: up to 93% @ 40°C
