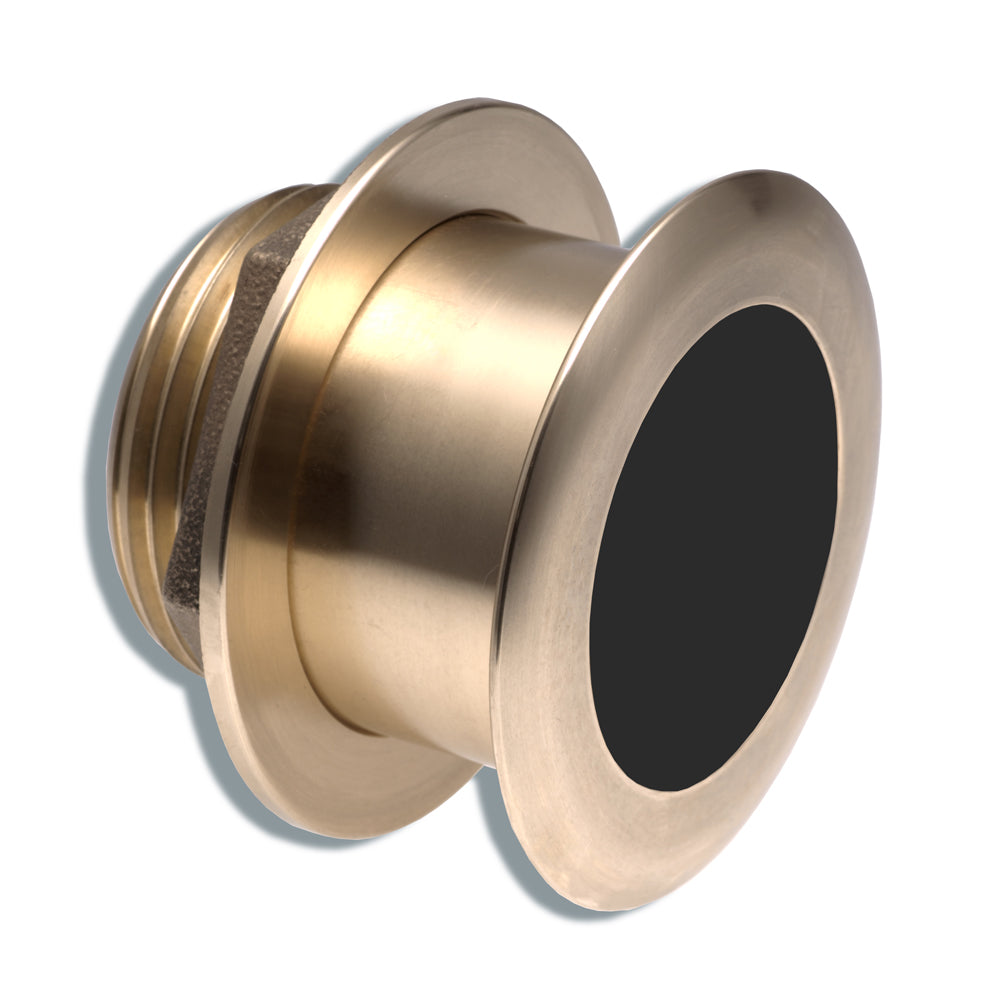

B175L Bronze Low Profile Thru Hull 20° Tilted Element Transducer 1kW
Features
- Material: Bronze
- For use with CP450C or CP470 Chirp Sonar Module
- Power (RMS): 1Kw
- Max Depth(ft): 2,500
- Frequency (khZ): 40-60
- Beam Width(L/H): 32°-21°
- Records: Depth / Temperature
- Approved Hull Material: Fiberglass / Wood
- Cable Length (Ft/M): 33ft / 10M
- Supported Deadrise / Transom Angles: 16-24° Deadrise
- Note: Using a Single B175 or B75 requires the A80328 Single Operation Cable
Specifications:
- Chirp: Low
- Temperature: Yes
- Mounting Style: Thru-Hull
- Imaging: Standard
- Speed Included: No
- Box Dimensions: 8"H x 10"W x 12"L WT: 11.6 lbs
- UPC: 723193729113
