Description

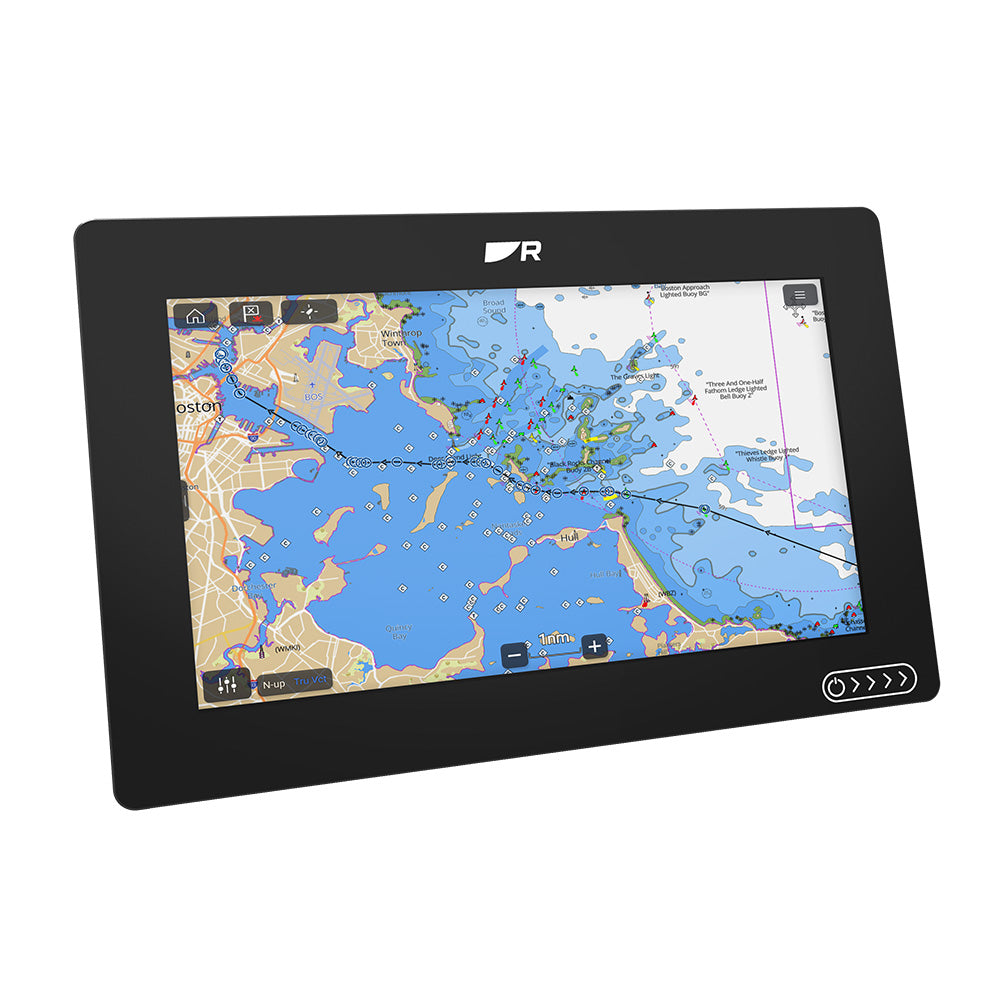

Axiom 2 9" Multifunction Display
Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough™ displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarine’s signature durability and ease of use.
Features:
Rugged all-weather, marine-ready design backed by a 3-year warranty.
6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
7, 9, and 12-inch HydroTough™ IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
64 GByte of onboard storage for apps, charts, video, and user data.
Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.
Technical Specifications:
Dimensions (Trunnion mounted) - 10.43" (W) x 7.39" (H) x 7.01" (D)
Dimensions (Surface / Flush mounted) - 9.61" (W) x 6.21" (H) x 7.01" (D)
Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
Power Consumption (max) - 8.95W
Inline fuse / thermal breaker rating - 7A
Size & Type - 9" (diagonal), IPS
Resolution - HD 1280 x 720
Brightness/luminance - 1500 bits / 1500 cd/m²
Protective Coating - HydroTough™ (Oleophobic)
NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
