Description

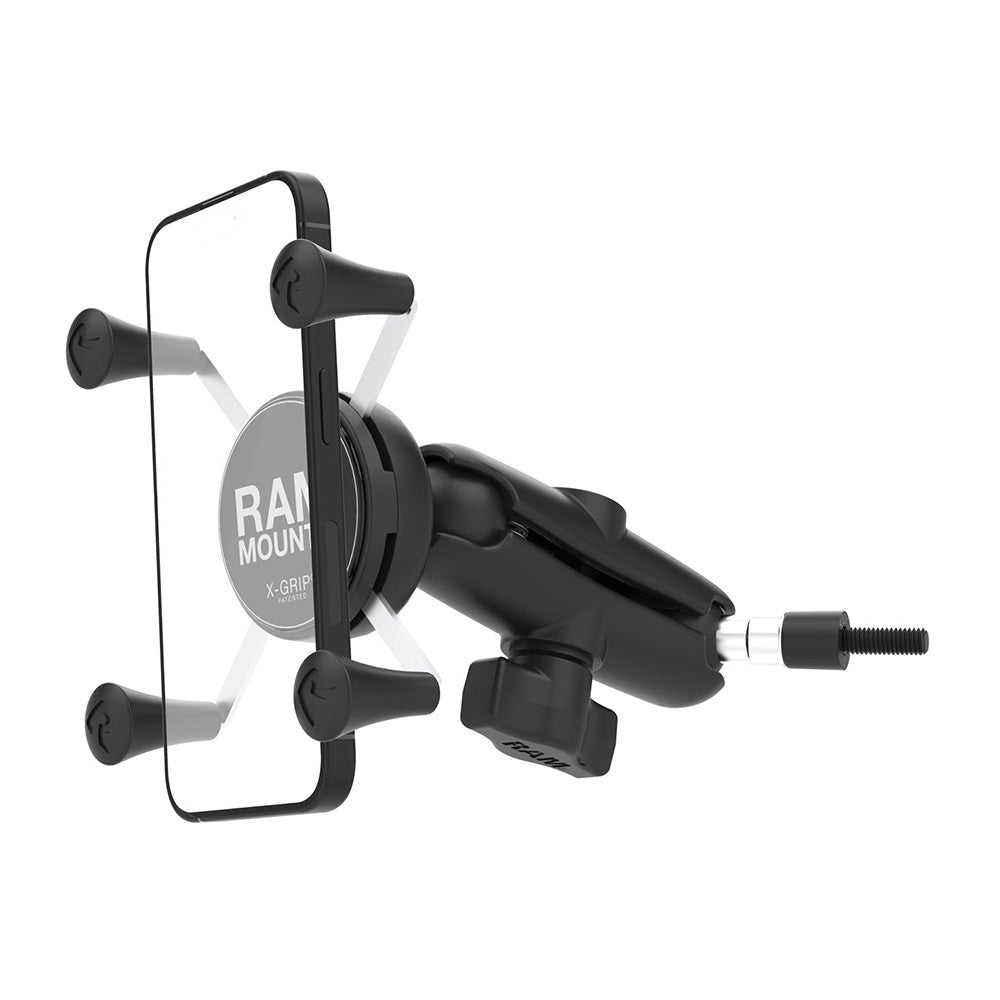

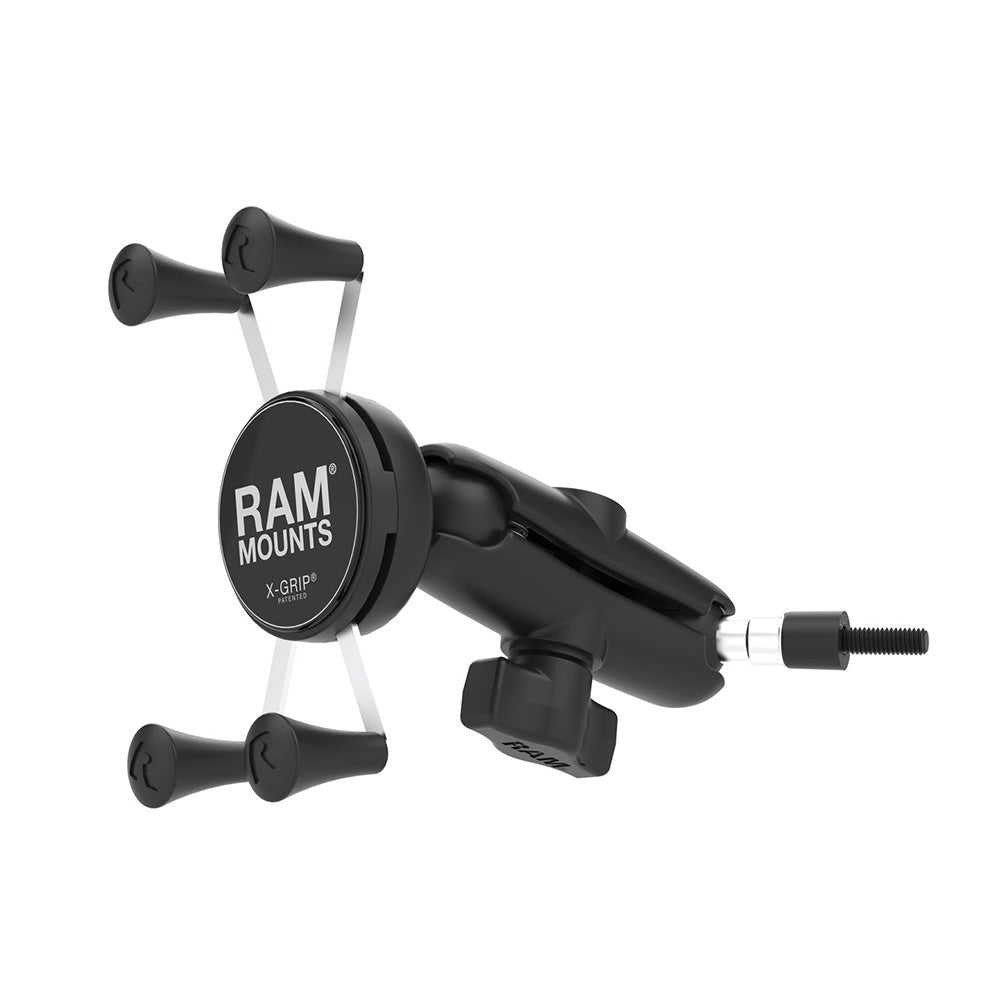

RAM® X-Grip® Phone Mount with Grab Handle M6 Bolt Base
The RAM® X-Grip® Phone Mount with Grab Handle M6 Bolt Base (RAM-B-186-M6-UN7U) is easily installed on any vehicle's grab handle that features an M6 threaded bolt. This solution includes a medium-length double socket arm, the popular spring-loaded RAM® X-Grip® phone holder, and a RAM® ball base. With a hollow center, users can feed the 6mm bolt or smaller to screw into a vehicle's grab handle for a stable mounting base with no drilling required.

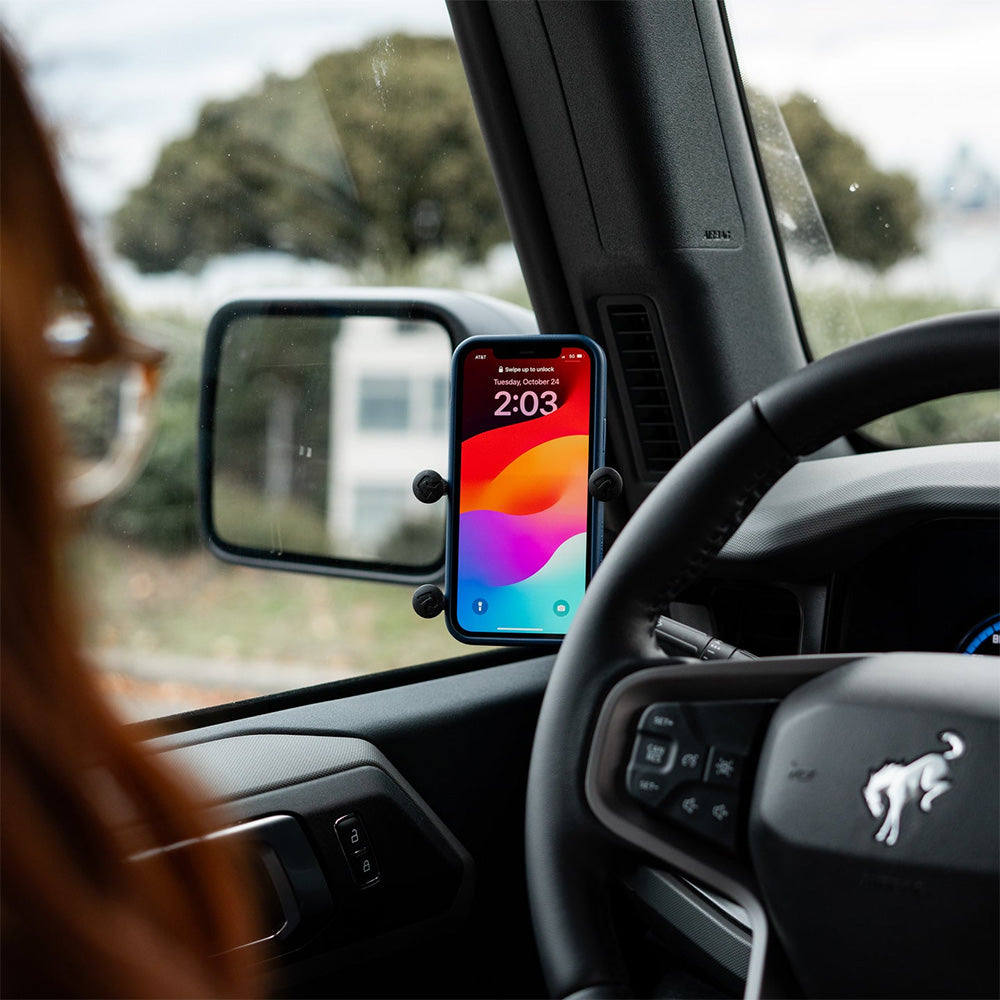

Keep a windshield clean and the phone mount out of the way with this grab handle mount for phones, GPS devices, and more! Confirmed fitments for this product include the Toyota Tundra and all Ford Bronco models, including the base model, Big Bend, Black Diamond, Outer Banks, Badlands, Wildtrak, Everglades, Heritage, and Raptor—however, any vehicle that employs a 6mm bolt or smaller on its structure is compatible with this product. A smaller bolt can be used, though the load capacity decreases with the bolt size.
Features:
- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes an optional device tether for peace of mind during rugged use
- Compatible with any vehicle grab handle with removable hardware & M6 threaded bolt; hardware included
- B size 1" RAM® rubber ball; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Specifications:
- Hardware Included: (1) Optional Tether, (1) Glue Tube for Rubber Caps, (1) M6 x 60mm Socket Head Cap Screw, (1) M6 Split Lock Washer, (1) 1/2" Spacer
- Holder Dimensions: Width Range: 1.85" - 3.25"; Depth Range: .875" max
- Socket to Socket Length: 3"
- Ball Size: B Size (1")
- Weight Capacity: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
- Materials: Marine-grade aluminum, high-strength composite, stainless steel
- Packaging Type: Polybag
- Weight: 0.6 lbs
Compatible Devices:
- Apple: iPhone 6s, iPhone 7, iPhone 8, iPhone SE, iPhone X, iPhone Xs, iPhone Xr, iPhone 11, iPhone 11 Pro, iPhone 12, iPhone 12 mini, iPhone 12 Pro, iPhone 13, iPhone 13 mini, iPhone 13 Pro, iPhone 14, iPhone 14 Pro, and iPhone 15 Pro
- Blackberry: DTEK 50, DTEK 60, and KEYone
- Garmin: Approach G8, Edge 1030, and Edge Explore 1000
- Google: Pixel, Pixel XL, Pixel 2, Pixel 3, Pixel 3a, Pixel 4, Pixel 4 XL, Pixel 4a, Pixel 5, Pixel 6, Pixel 6 Pro, Pixel 7, and Pixel 8
- HTC: U11 and U11 life
- Huawei: Mate 20 Pro and P30 Pro
- LG: Aristo, Aristo 2, Exalt LTE, G5, G5 Silver, G6, G6+, G7 ThinQ, G8 ThinQ, Grace LTE, K20, K20 Plus, K20 V, K3, K3 2017, K8 2017, Phoenix 3, Q6, Rebel 2 LTE, Rebel 3 LTE, Risio 2, Tribute Dynasty, Tribute HD, V30, V35 ThinQ, V40 ThinQ, Wine LTE, and Zone 4
- Motorola: moto e4, moto g5s plus, moto g6, moto g7 power, moto X2, moto X4, and razr
- Nokia: 1, 2, 3, 5, 6, 8, 9 PureView, 216, 230, 150 Dual SIM, 3310 Dual SIM, 7 plus, 8 Sirocco, and 8110 4G
- OnePlus: 6T, 7, 7T, 7T Pro, 7 Pro
- Razer: Phone 2
- Samsung: Galaxy A3, Galaxy A3 (2016), Galaxy A3 (2017), Galaxy A5, Galaxy A5 (2016), Galaxy A5 (2017), Galaxy A6, Galaxy A6+, Galaxy A7 (2016), Galaxy A8+, Galaxy A8 (2018), Galaxy A8+ (2018), Galaxy A10, Galaxy A10e, Galaxy A10s, Galaxy A11, Galaxy A20e, Galaxy A30, Galaxy A40, Galaxy A50, Galaxy A50s, Galaxy AMP 2, Galaxy AMP Prime, Galaxy AMP Prime 2, Galaxy C5, Galaxy E5, Galaxy Express 3, Galaxy Express Prime 2, Galaxy Grand Max, Galaxy J1, Galaxy J1 (2016), Galaxy J2, Galaxy J2 (2016), Galaxy J2 (2017), Galaxy J3 (2016), Galaxy J3 (2017) International, Galaxy J3 Emerge, Galaxy J3 Prime, Galaxy J3 V, Galaxy J5, Galaxy J5 (2016), Galaxy J5 (2017), Galaxy J7 (2016), Galaxy J7 (2017), Galaxy J7 Perx, Galaxy J7 Prime, Galaxy J7 Prime 2, Galaxy Luna, Galaxy Note 8, Galaxy Note Fan Edition, Galaxy Note 10, Galaxy Note20, Galaxy On NXT, Galaxy On5, Galaxy On7 Prime, Galaxy On8, Galaxy S5, Galaxy S5 Neo, Galaxy S6, Galaxy S6 Active, Galaxy S6 Edge, Galaxy S6 Edge+, Galaxy S7, Galaxy S7 Active, Galaxy S7 Edge, Galaxy S8+, Galaxy S9, Galaxy S9+, Galaxy S10, Galaxy S10+, Galaxy S10e, Galaxy S20, Galaxy S20+, Galaxy S20 FE 5G, Galaxy S20 Ultra 5G, Galaxy S22 5G, Galaxy S22+ 5G, Galaxy S23, Galaxy S24, Galaxy V Plus, Galaxy XCover 3, Galaxy XCover 4, Galaxy XCover 5, Galaxy Z Fold2, Galaxy Z Fold3, W2017, Z1, Z2, Z3, and Z4
- Sony: Xperia L1, Xperia X, Xperia X Compact, Xperia X Performance, Xperia XA, Xperia XA1, Xperia XA1 Plus, Xperia XA2, Xperia XZ, Xperia XZ1, Xperia XZ1 Compact, Xperia XZ2, Xperia XZ2 Compact, Xperia XZ3, Xperia XZs, Xperia Z3, Xperia Z3+, Xperia Z5, and Xperia Z5 Compact
- Xiaomi: Mi 9, Mi 9 Explorer, Mi Mix 2S, and Mi Mix 3
- ZTE: Axon 9 Pro and Axon 10 Pro
Compatible Vehicles:
- Ford: Bronco (2021-2023)
- Toyota: Tundra (2022)
*Safety Precaution: Do not install this product near or over an airbag deployment area or in a location that obstructs the driver’s vision or interferes with vehicle operation. National Products, Inc. does not assume responsibility or liability for any such personal injury, death, or property damage.
