Includes band 71 (617 to 698 MHz) and 3.5 GHz 5G bands
Wideband (617 to 6000 MHz) operation makes the antenna future proof
Antenna is purpose built for marine and coastal applications
UV and saltwater protected enclosure with IP68 rating

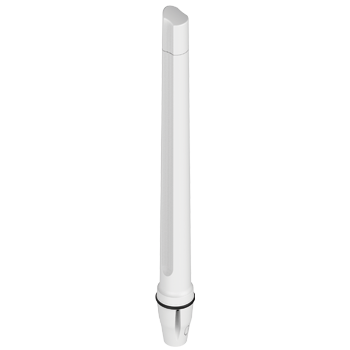

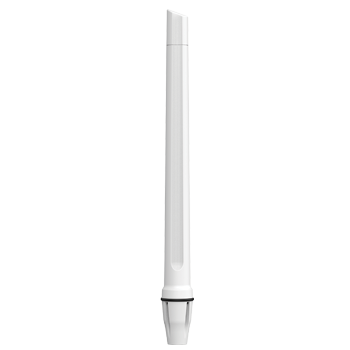

The OMNI-493 is a high-performance omni-directional antenna designed to support contemporary 4G/LTE and future 5G operating frequencies. With ultra-wideband coverage from 617 to 6000 MHz and a peak gain of 8 dBi, this antenna ensures strong and stable connectivity across all regions. Its superior pattern control and rugged design make it ideal for marine and coastal applications.Ultra-Wideband Frequency Coverage:Operates from 617 to 6000 MHz, supporting 4G/LTE and future 5G networks.High-Gain Performance:Delivers a peak gain of 8 dBi, ensuring reliable signal reception across all supported bands.Omni-Directional Design:Provides 360° coverage for enhanced connectivity in marine and coastal environments.Advanced Pattern Control:Utilizes multiple dipoles and a patented feed network for superior signal stability.Future-Proof Technology:Covers the 617 – 698 MHz, 3400 – 4200 MHz and 5000 - 6000 MHz bands, ensuring compatibility with emerging 5G applications.Global Connectivity:Designed for use worldwide, ensuring seamless integration across multiple network providers.Marine-Grade Durability:Built for extreme conditions, making it suitable for offshore platforms, ships, and other maritime installations. The OMNI-493 is a reliable and future-proof solution for marine and coastal applications, offering ultra-wideband performance and superior signal reception for uninterrupted connectivity in demanding environments.
Ideal Applications
Marine applications / Yachts / Boats / Ferries
Enhanced 4G/LTE and 5G reception
IoT & M2M applications
Areas with poor data signal reception
Improve data transmission connection reliability & stability
