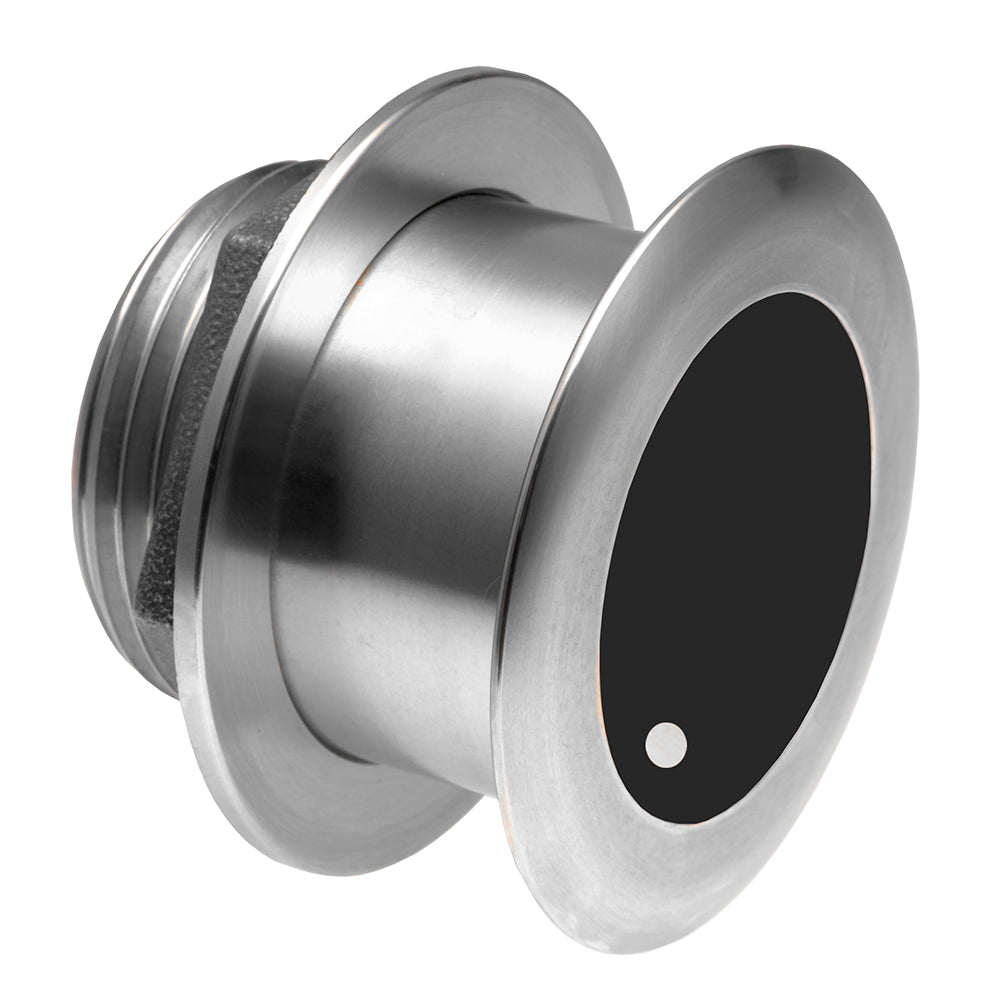

Navico xSonic SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 12 Element - 9-Pin

xSonic SS175M Stainless Steel Thru-Hull Tilted Medium CHIRP Transducer - 12° Element - 9-Pin

Features:

• Black 9-Pin Connector
• Cable Length - 10M (33.0')
• SS175M - 1-Internal Broadband Ceramic Assembly
• Depth & fast-response water-temperature sensor
• Stainless Steel transducer housing
• Hull Type: Steel or aluminum
• Boat Size: Up to 11M (36’)
• Useable shaft length 71mm (2.80”)

Medium-Frequency (M)

• Medium—Chirps from 85 kHz to 135 kHz, 24° to 16° beamwidth
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
• Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency

Specifications:

• Temperature: Yes
• Pins: 9
• Mounting Style: Thru-Hull
• Imaging: Standard
• Chirp: Medium
• Cable Length (Feet): 33'
• Speed Included: No
• Box Dimensions: 8"H x 10"W x 12"L WT: 10.8 lbs
• UPC: 9420024161890
