Description
Features
Beautiful with classic lines Polished 316 stainless steel Precision welded joints Easily rotated or removed Easy Installation Mounting hardware included with backing plates Universal base mount (no special base mounts required) Mounts to straight, curved, vertical, or angled surface
Includes

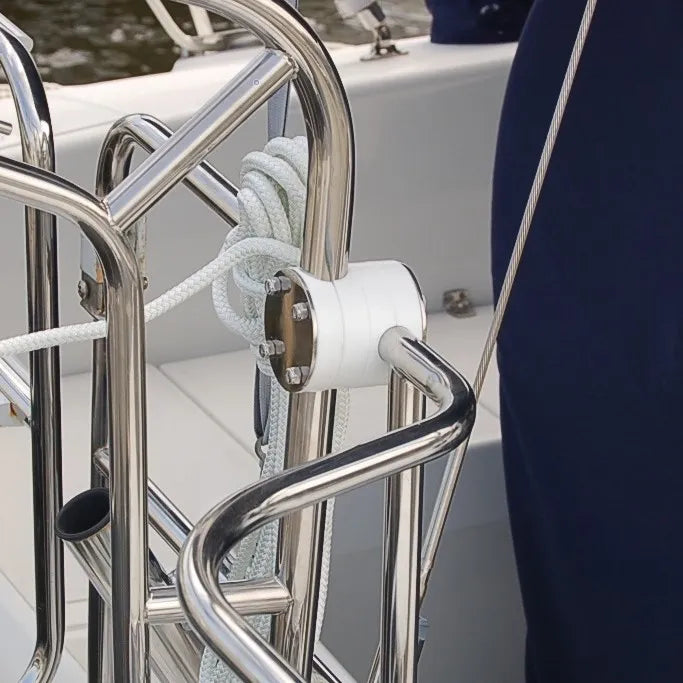

Two davit arms with welded chain eye end, stainless steel cleat, and harness clip rings Stern rail mounts with stainless steel reinforcing plates Universal deck/transom mounting brackets with backing plates

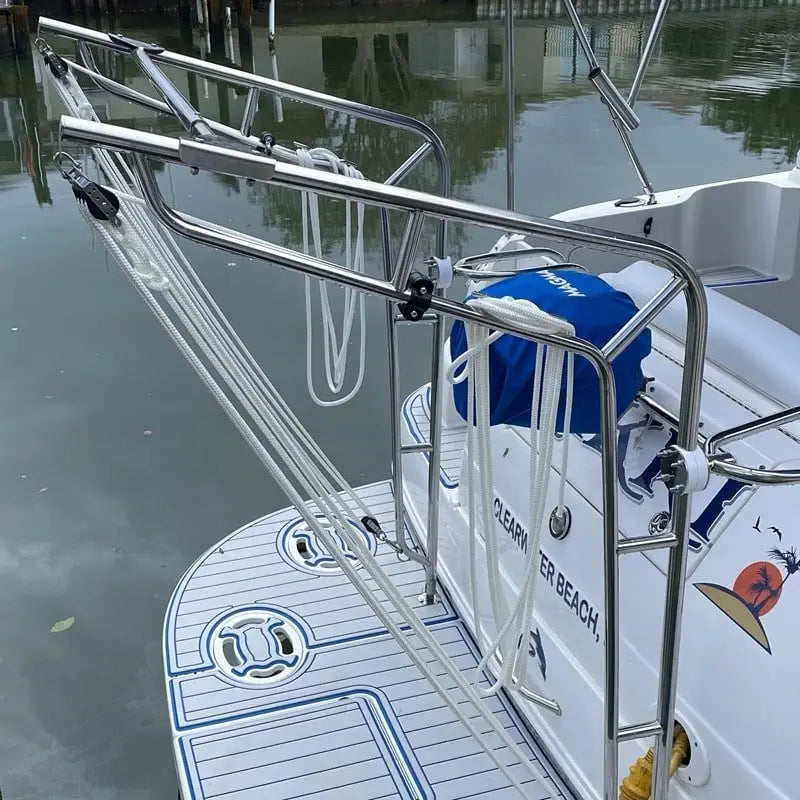

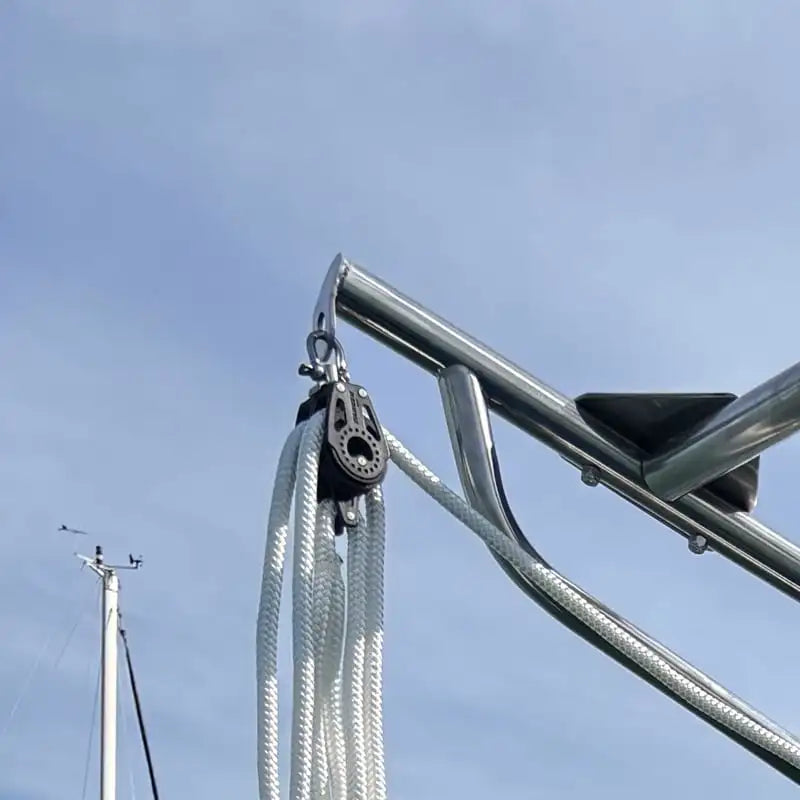

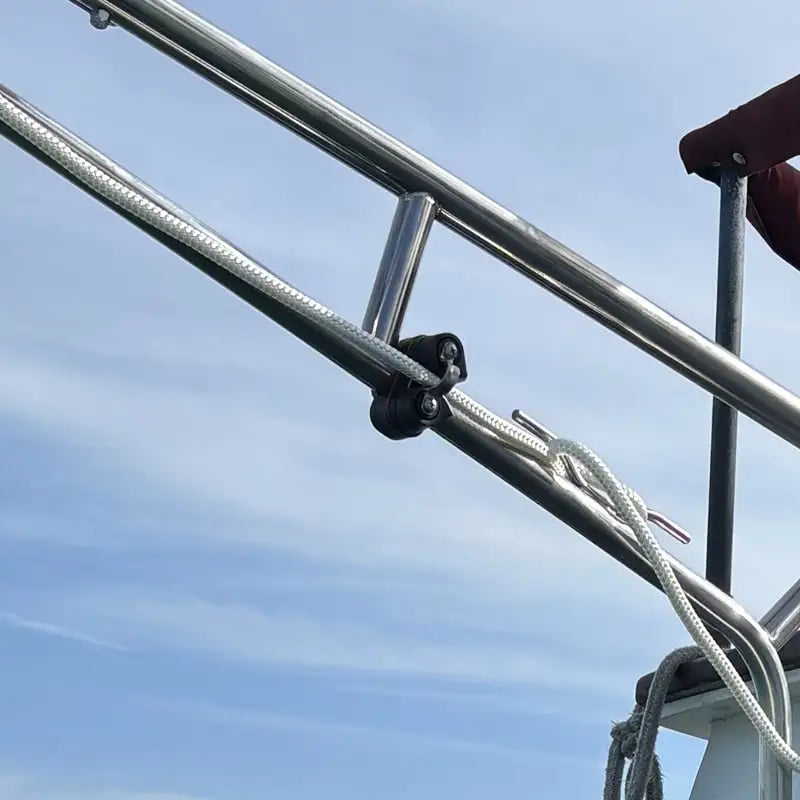

Note: The photo shows an optional stabilizing strut bar, cam cleat, and hoisting tackle.
Specifications
Load: 600 lbs total, 300 lbs per arm Construction: heavy-duty, 1.25-inch diameter x .120 wall, polished 316 stainless steel tube, continuously welded Davit end plates, cleats, and hook eyes Height: 66.5 inches (including base mount) Reach: 38 inches Rise: 15 Degrees from horizontal Rail Connection: 1.0 or 1.25-inch diameter rail, 36 to 50 inches from base mount to connection point. Base Mount: 2 3/4 inch diameter, 3 hole
