Description

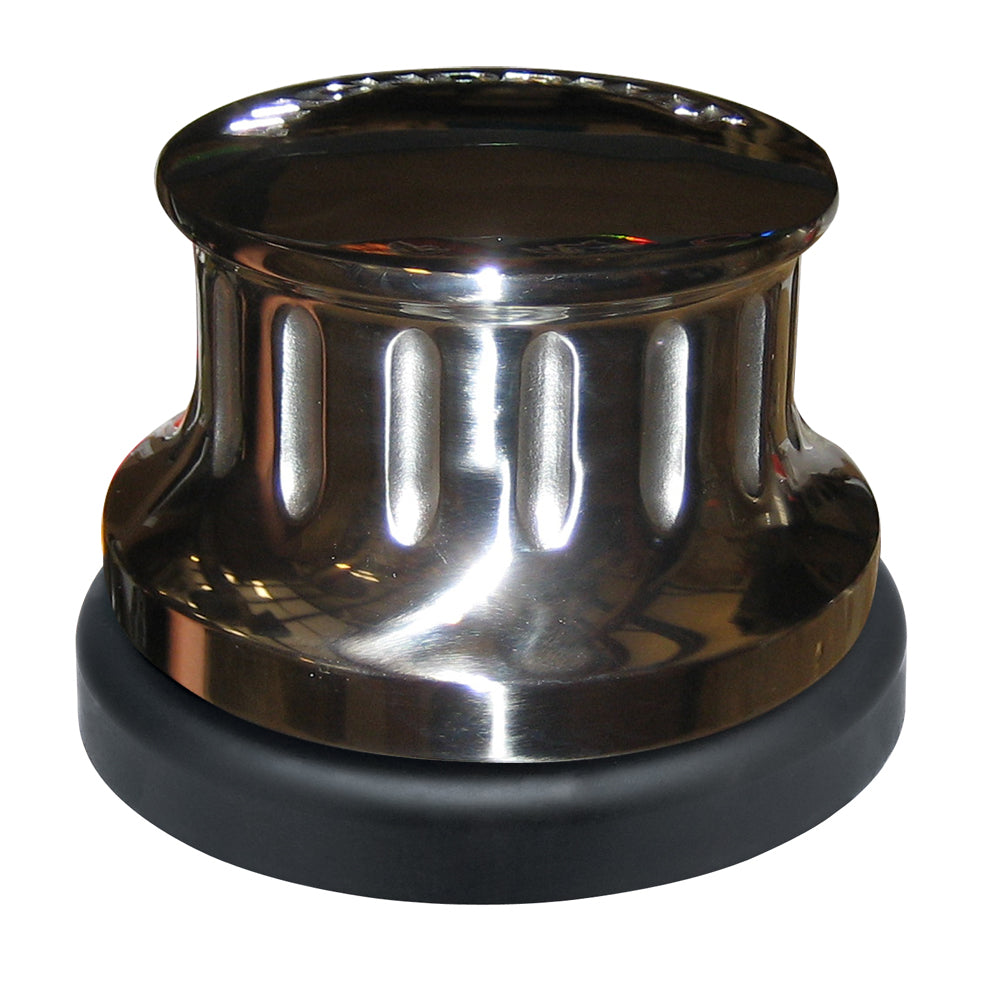

ANCHORMAX™ Windlass
Features:
Has an extremely high power to weight ratio
ompact, fully sealed gearbox is driven by a vertically mounted, permanent magnet motor
Intrusion below decks is minimised making the design ideal for boats from 5m (16ft) to 10m (32ft)
Fitting to the boat is simplicity itself as no dismantling of the winch is required
Gear housings are marine-grade alloy and the drum is stainless steel
Supplied as a single direction (clockwise) unit, complete with deck switch, fastenings, template and fitting instructions
Not recommended for use to haul halyards
Not recommended for use to haul chain
Note: Each winch is supplied as a single direction (clockwise) fully tested unit complete with fitting instructions, deck switch, templates and fastenings.
STANDARD EQUIPMENT
Footswitch
SPECIFICATIONS
Maximum Line Pull
386kg (850lb)
Speed @ nominal working load
24m/min (76ft per min) (80 amps with 100kg/220lb load)
Voltage
12v
Power
600w
Weight
8kg(17.6lb)
Maximum Boat Load
10m (33ft)
Max. Boat Weight
4 Tons
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf) Brochure (pdf)
