Description

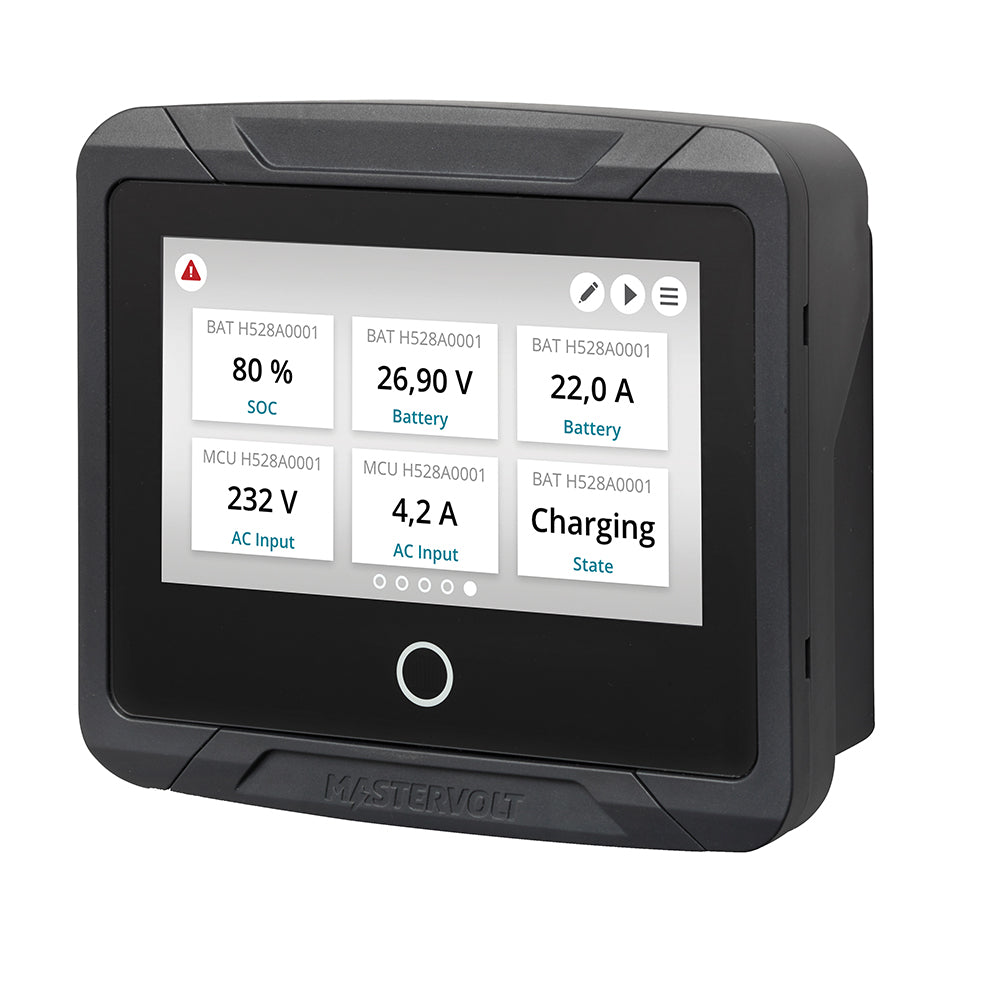

EasyView 5
Waterproof system monitor with daylight display and intuitive touch control.
Controlling your Mastervolt system has never been easier. The EasyView 5 features a sharp, waterproof display which is clearly readable in daylight. Thanks to the color touch screen and multi-language menu, the display is a pleasure to operate. Easily customizable favorite pages show all relevant system information at a glance.
Features
Water proof, daylight readable color display
Intuitive touch control
Customizable favorite pages
Log book for warnings and alarms
Buzzer and Home button
Easy mounting: Front mount, wall mount or retrofit
MasterBus powered or MasterBus powering by 12 V DC input
Easy updating through integrated USB
Applications
The EasyView 5 completes any MasterBus system. Applications include yachts, vehicles and stationary systems. Markets include marine, mobile (recreational & professional), infra-structure, offshore, off-grid and industrial markets.
Specifications
Display: 4.5 inch high contrast display with capacitive touch control. Resolution: 480x272 pixels, Color depth: 16 bits
Power supply: MasterBus powered or MasterBus powering through 12/24 V input
Power Consumption: < 160 mW (idle mode)
Alarm: Buzzer integrated
Connections: 2 x MasterBus, USB, 12/24 V auto ranging input for optional external power
Mounting: Front mount, wall mount and MasterView Easy retrofit
Dimensions, HxWxD: 113 x 127 x 43 mm
