Description

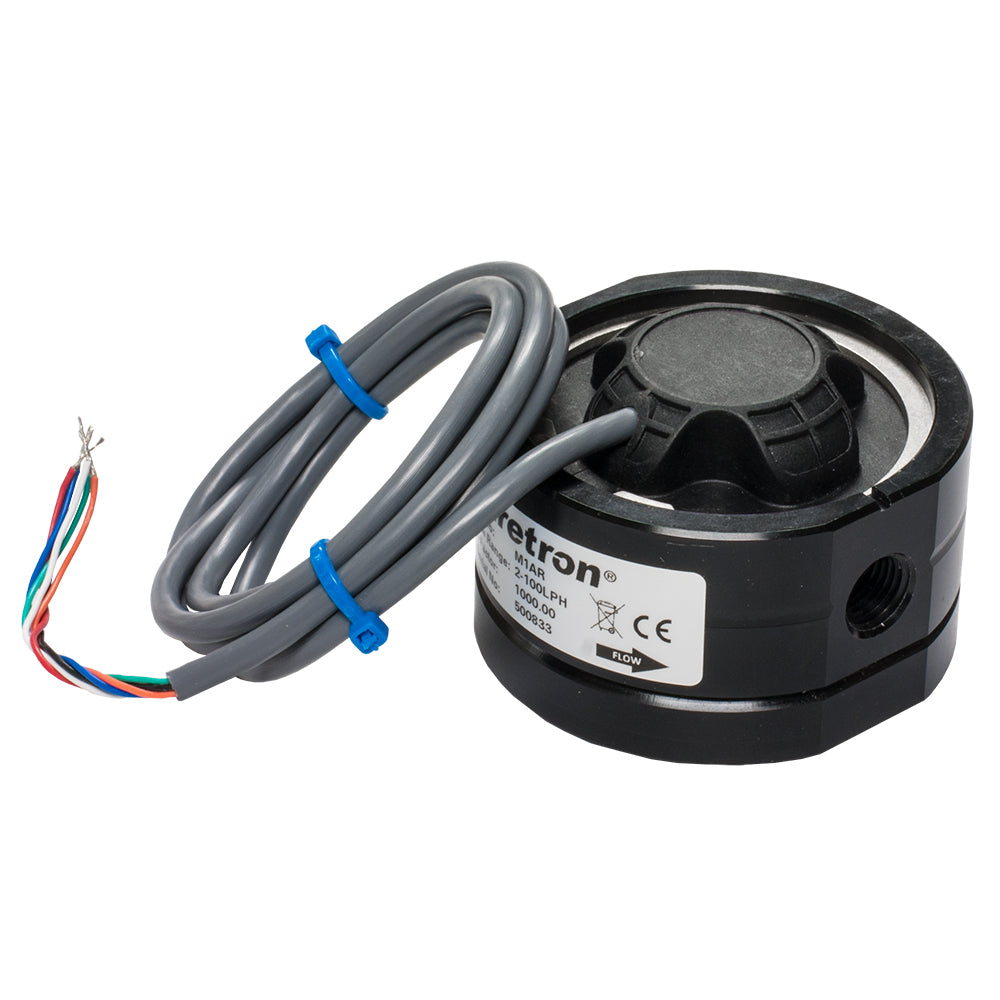

Fuel Flow Sensor - 2-100 LPH
Features:
Flow Range: 2 LPH to 100 LPH (0.53 GPH to 26.4 GPH)
All M1AR fuel flow sensor accessories for the FFM100 are fitted with 1/4" NPT female threads
Nominal K Factor: 1000 pulses/L (3785.4 pulses/Gal)
Cable Length: 1m (3.28')
Strainer Size: 200 Mesh (If not already installed after fuel filter)
Port Size: 1/4" NPT Female
Maximum Viscosity: 1000 cPs
Maximum Operating Pressure: 68.95 Bar (1000 PSI)
Weight: 775g (1.71 lb)
Construction: Aluminum Housing Material
Rotors: PPS (Ryton)
Shafts: 316/304 Stainless Steel
Magnets: Samarium Cobalt
O-Ring: FKM (Viton™)
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
