Description

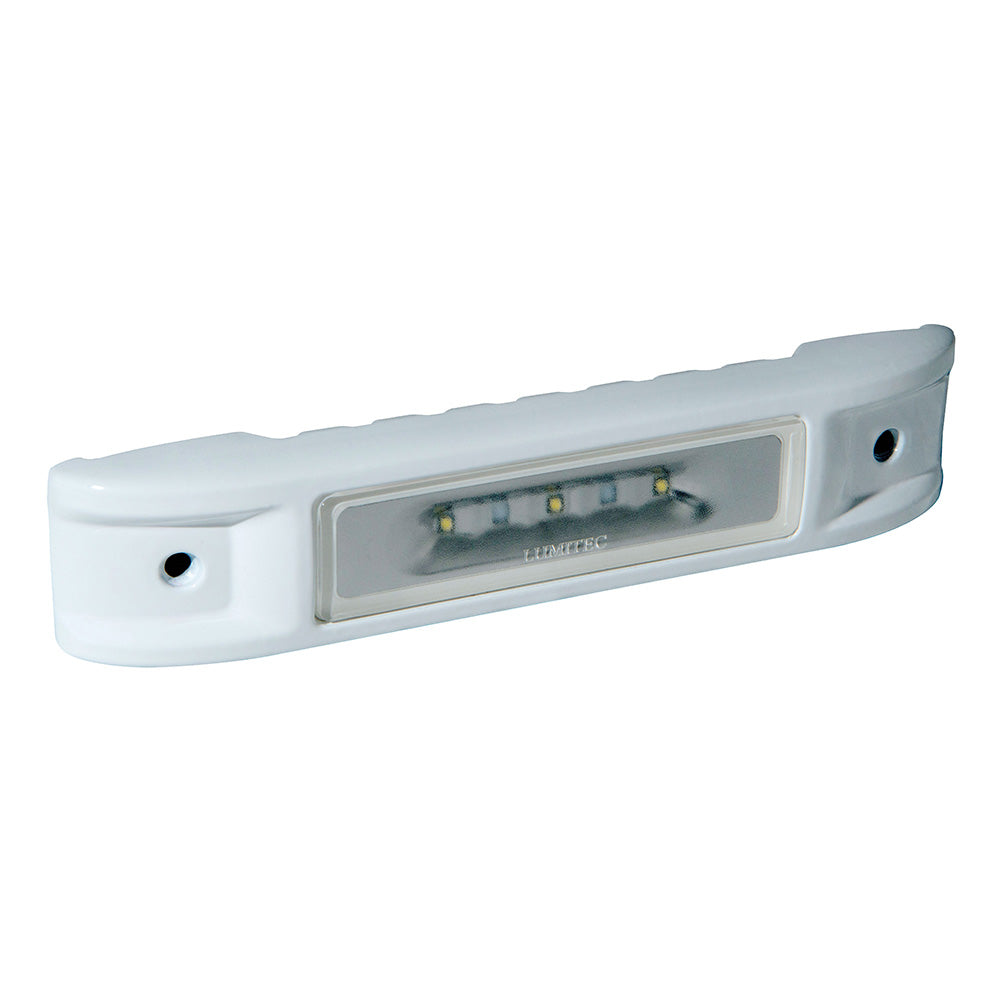

Ibiza LED Engine Room Light - Blue/White Dimming - White Finish
As beautiful as it is brilliant, you may be surprised that Ibiza is tough enough for an engine room. But it is. And it’s just as bright, reliable, and easy to install as it’s sibling, the wildly popular Nevis. Delivering 1,000 integrating-sphere-measured lumens and dual-color output options, Ibiza is IP67 compliant, completely sealed and compatible with most PWM LED dimmers. And like Nevis, Ibiza’s carefully engineered optical system delivers a nearly perfect 180-degree beam pattern to illuminate even the farthest, darkest corners.
Specifications:
Lumens (White): 1000
Voltage: 10-30V DC
12V DC Amps: 1.3A
24V DC Amps: 600mA
Rated Watts: 16
CCT: 5000
CRI: 70+
Op. Temp F/C: -31/35 to + 131/55 F
Timed Toggled Protocol (TTP): Yes
Third Party Dimmer Compatibility (3PD): Yes
Color Match Commitment (CM): Yes
Mounting Hole Diameter: N/A

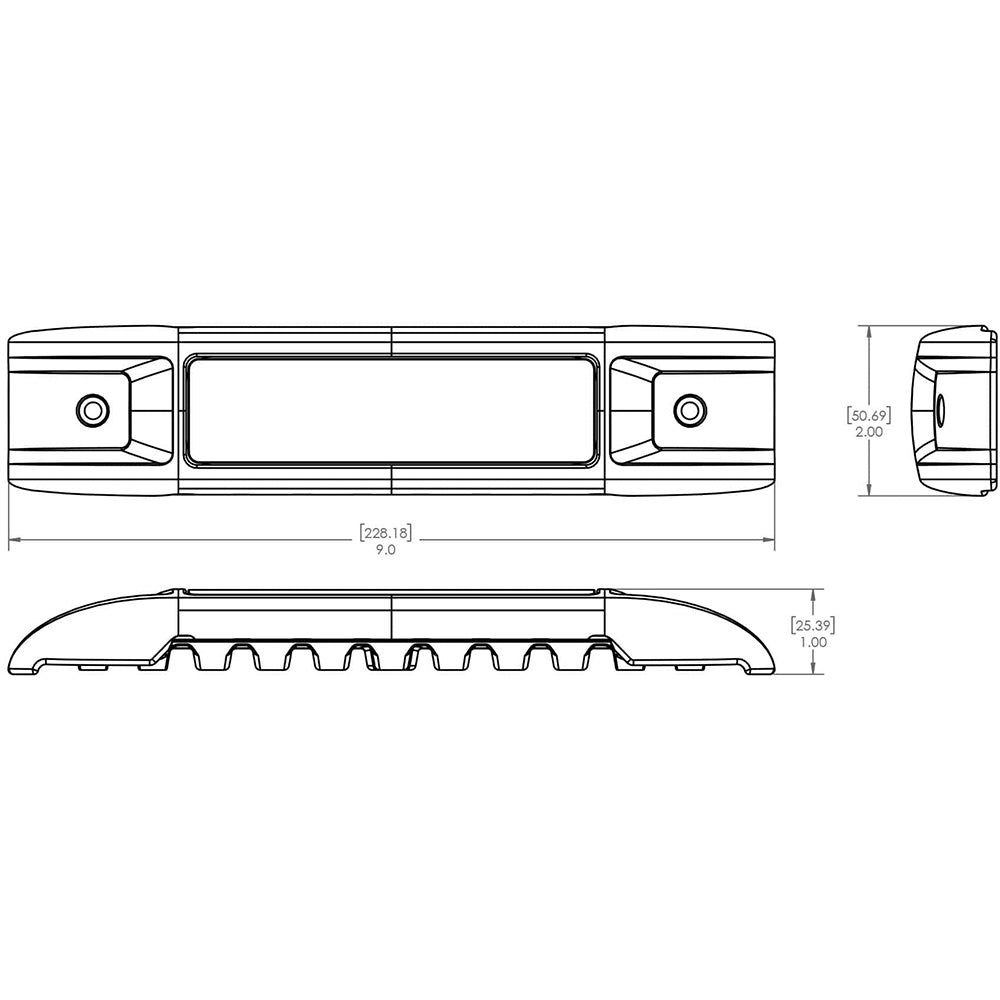

Length: 2in (5.08cm)
Width: 9in (22.86)
Depth: 1in (2.54cm)
Diameter: N/A
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
