Description

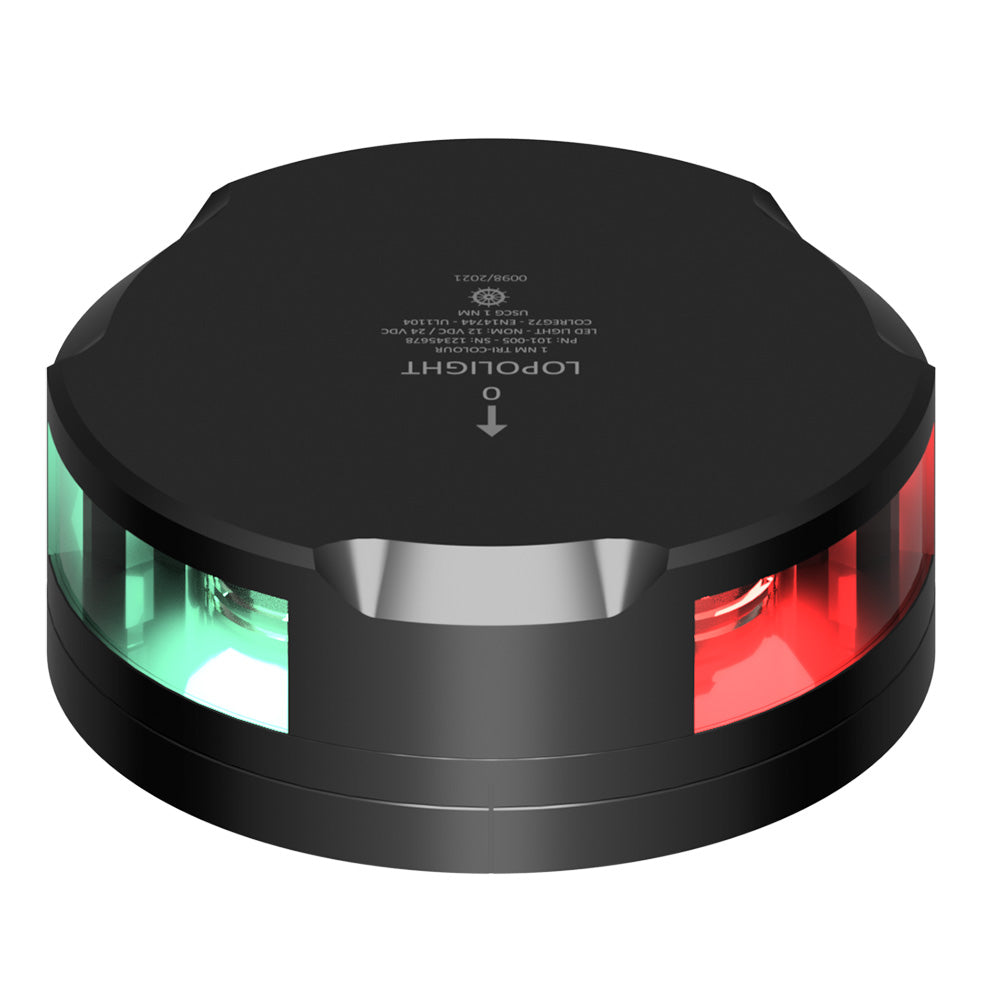

Tri-Color Nav Light - 1NM - Black Housing with FB Base
This tri-color navigation light is horizontally mounted and has a one-nautical mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.
Features:
Black anodized housing
0.75m cable is included
Specifications:
Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Mounting: Horizontal
EAN: 5704438042643
Min. Feed Wire Gauge: 0.5mm2 AWG22
Light Color: Red, green, and white
Visibility: 1NM
Included In the Package: 1 Navigation light, 0.75 meters shielded marine grade cable and installation guide
IP rating: IP68
Connection: 0.75m cable
Current Consumption (mA @ 24VDC): 81
Current Consumption (mA @ 12VDC): 150
Dimensions Metric: Ø92,5mm x 36mm
Dimensions Imperial: Ø3.6" x 1.4"
Operating Temperature: -25 degrees C to 55 degrees C
