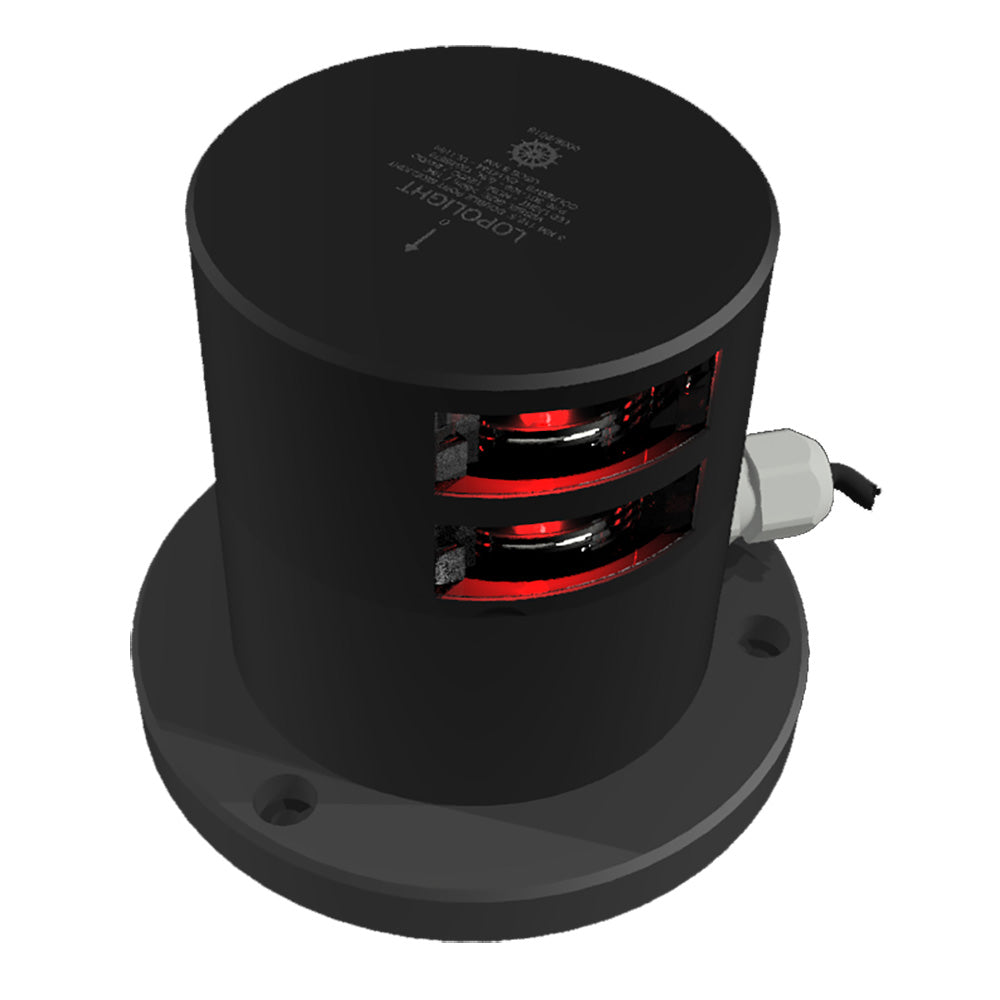

Lopolight 3NM Double Stacked Ice-Class Port Light

3NM Double Stacked Ice-Class Port Light

This double-stacked light has a visibility of 3NM and is meant for the port side of a vessel. The de-icing function is automatic and controlled by the sensor in the light.

Includes Three Cable Glands:

• 9-17mm (3/8-11/16 in.) cable diameter
• 7-13mm (1/4-1/2 in.) cable diameter
• 4.5-10mm (5/32-3/8 in.) cable diameter

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Mounting: Horizontal
• EAN: 5704438014114
• Light Color: Red
• Intensity: >15cd
• IP rating: IP68
• Connection: Plug connector
• Visibility: 3NM
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
• Current Consumption (mA @ 12VDC): 153
• Current Consumption (mA @ 24VDC): 92
• Dimensions Metric: Ø92,5mm x 125,5mm
• Dimensions Imperial: Ø3.6" x 4.9"
• Certification: This navigation light conforms to USCG Commandant Instruction M16672.2.
• Operating Temperature: -60°C to 55°C
• Operating Voltage: 20-32VDC
• Power Draw (W): 2,2
• Vessel Size: Over 50M
• Min. Feed Wire Gauge: 1.5mm2 AWG18
• Weight (kg): 1.4 Kg
• Weight (oz): 49.38 Oz

Specifications:

• Housing: Black
• Visible Range (Miles): 3NM
• Voltage - Input Range (Volts): 20-32
