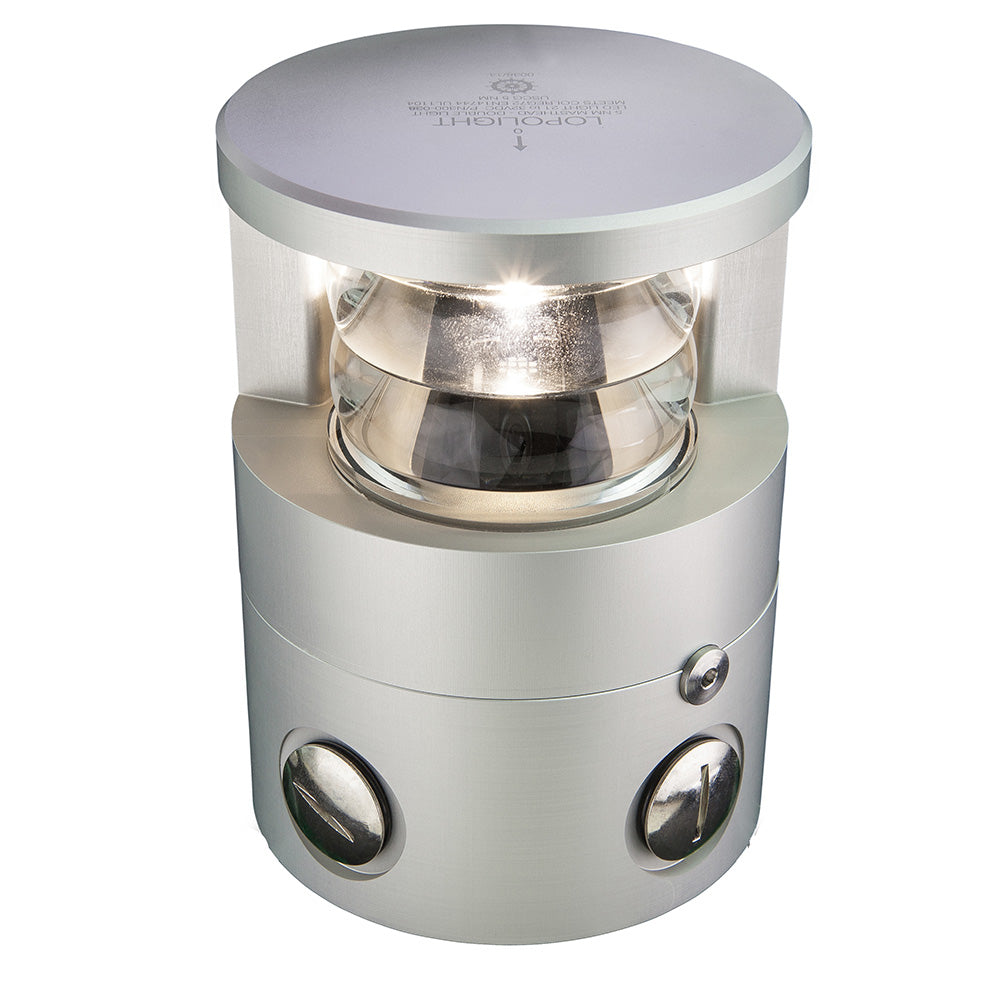

Lopolight 225 Double Masthead Light - 6NM - Silver Housing

225° Double Masthead Light - 6NM - Silver Housing

The double LED light consists of two (2) individual lights which can be activated separately. One is dedicated as the primary, the other the secondary. The precision machined 6082 aluminum housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within. The interior is completely filled with a special potting resin making it water and vibration-proof.

Specifications:

• Light Color: White
• Dimensions Metric (mm): 92 diameter, 5mm x 128mm
• Dimensions Imperial (inch): 3.6" diameter x 5"
• Certification: This Navigation Light is certified by DNV
• Intensity: >94cd
• Approved to: COLREG72, EN14744, IEC, 60945, IACS, E10, USCG, ABS, M.E.D., DNV, LR
• Visibility: 6 Nautical miles
• Operating Temperature: -25°C to 55°C
• Mounting: Horizontal
• Materials: Silver anodized aluminum 25u PMMA lens, A4 stainless steel screws, epoxy, polyurethane
• Operating Voltage: 20-32VDC
• EAN: 5704438007086
• IP Rating: IP68
• Power Draw (W): 13
• Connection: Plug connector
• Current Consumption (mA @ 12VDC): 0

Specifications:

• Housing: Silver
• Lens Color: White
• Visible Range (Miles): 6
• Voltage - Input Range (Volts): 20-32
• Box Dimensions: 4"H x 6"W x 8"L WT: 3.4 lbs
