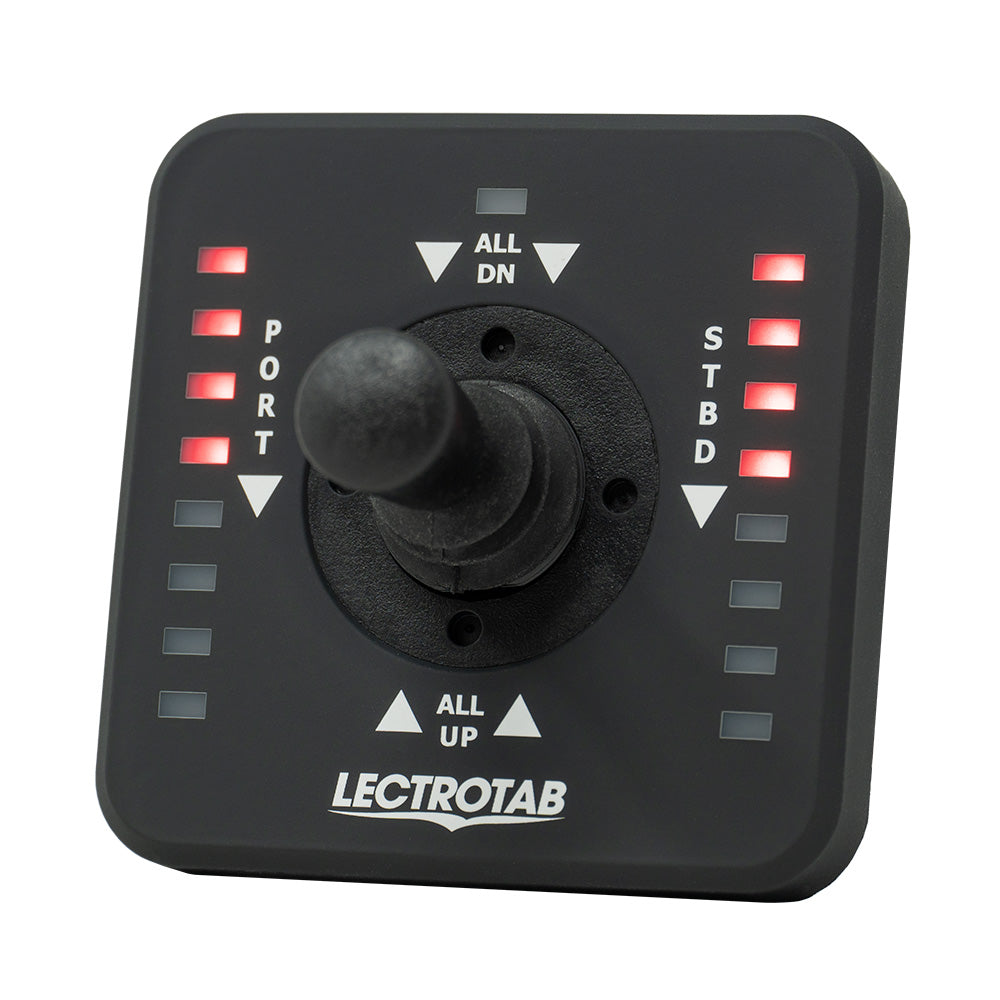

Joystick LED Trim Tab Control
Lectrotab’s Joystick LED control incorporates features requested by boat owners to provide user-friendly control for a more enjoyable boating experience.
Features:
Single “Joystick” control
NMEA 2000 compatible
LED display of each trim tab position
Microprocessor-based trim tab control with LED tab position indicators
NMEA 2000 compatible with JLC-NMEA adapter
Move both tabs up or down simultaneously with a single motion
Dual station ready – just add a second JLC-11 and JR-* cable (sold separately)
Automatic return to last tab position if the ignition key is turned off and back on again
Completely sealed, completely waterproof, and will not deteriorate in sunlight
Automatic tab retraction and calibration with key or accessory switch off
Easy upgrade from any of our Lectrotab controls
No external power module required
LED tab position indicators dim automatically in darkness and brighten in sunlight
Single or Dual Actuator per tab
Operates on 12 or 24 VDC systems
Specifications:
Display Color: Black
Number of Stations/Actuators: Single or Dual Station/1 or 2 Actuator/tab
Overall Width: 3.0"/77mm
Overall Height/Thickness: 3.0" (77mm)/2.0" (50mm)
Mounting Hole Cutout (Diameter): 2.625"/66.7mm
DC Voltage: 12/24
Fuse Size Power Input (1 Actuator Per Tab): 12 VDC-15 or 20 AMPs 24 VDC = 10 AMPs
Fuse Size Aux. (Must Connect): 1 to 2 AMPs
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)
