Description

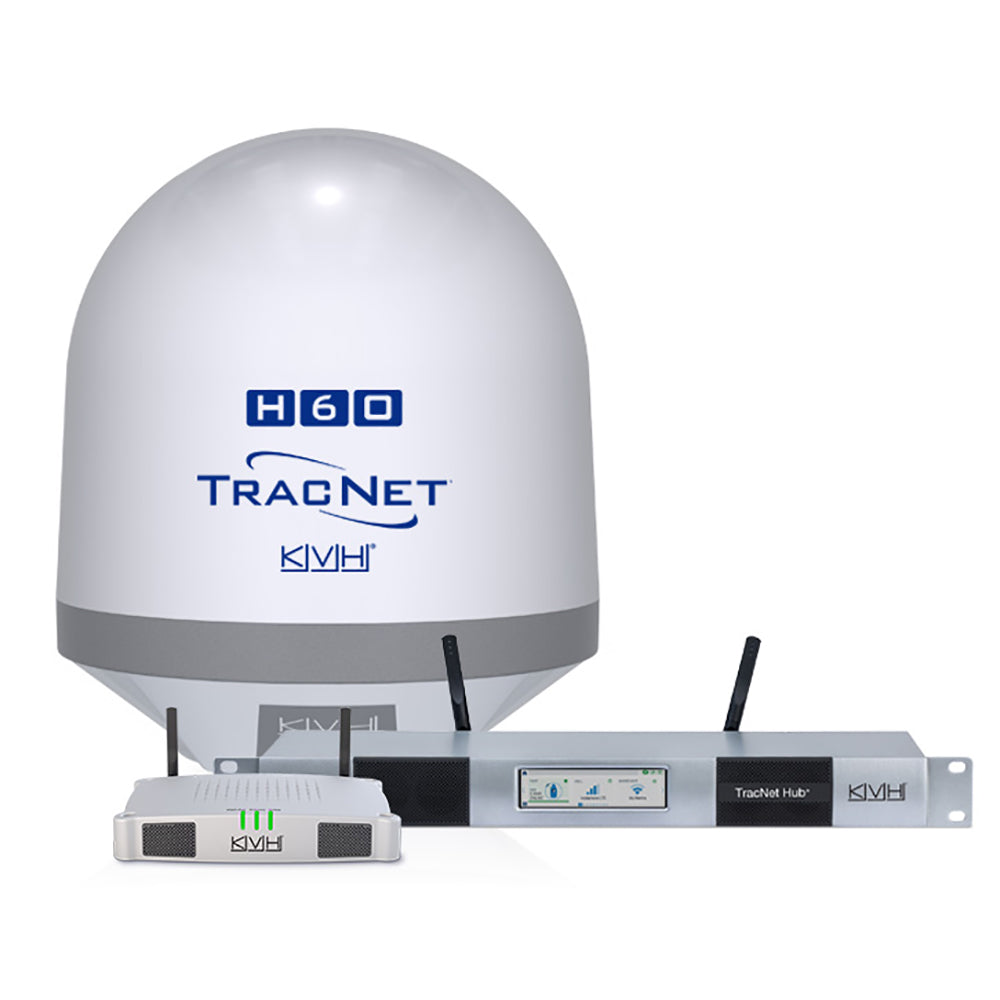

TracNet™ H60 Ku-Band Antenna with TracNet Hub
The TracNet™ H60 provides the fastest, most reliable connectivity with the KVH ONE™ hybrid network. The groundbreaking TracNet H60 is 42% lighter than leading competitors and includes integrated satellite, cellular, and Wi-Fi technology with intelligent, automatic network switching that will keep you connected to the best communication options at all times, in all sea states.
*Subscription required
KVH ONE Hybrid Network
Global HTS Ku-band satellite network, with 276 million sq km (106+ million sq miles) of coverage, powered by Intelsat
Cellular support in 150+ countries as far as 32+ km (20+ miles) offshore
Compatible with shore-based Wi-Fi networks
Features:
Automatically switches to the best connectivity option based on cost, data quality, and more
Hybrid connectivity options (VSAT, Cellular, and WiFi)
Stabilization - Three axis, stabilized skew
Single cable install with DC and AC power BDUs (below deck units)
Cybersecurity - Integrated terminal and network security; optional enterprise-level upgrade
Up to 42% lighter than competitive systems
For boats 60+ feet (18+ meters)
Tuned antenna paired with KVH’s exclusive RingFire™ technology ensures superior reception
Technical Specifications:
Dome Diameter - 24" (60cm)
Dome Weight - 53.6 lbs (24.3 kg)
Maximum Speed Download/Upload - 10 Mbps/3 Mbps
Elevation/Azimuth Range - 24° to 116°/commercial-grade rotary joint for unlimited azimuth rotation
Operating Temperature - -22°F to 131°F (-30°C to 55°C)
Power Source - DC provided by the TracNet Hub or Hub+
