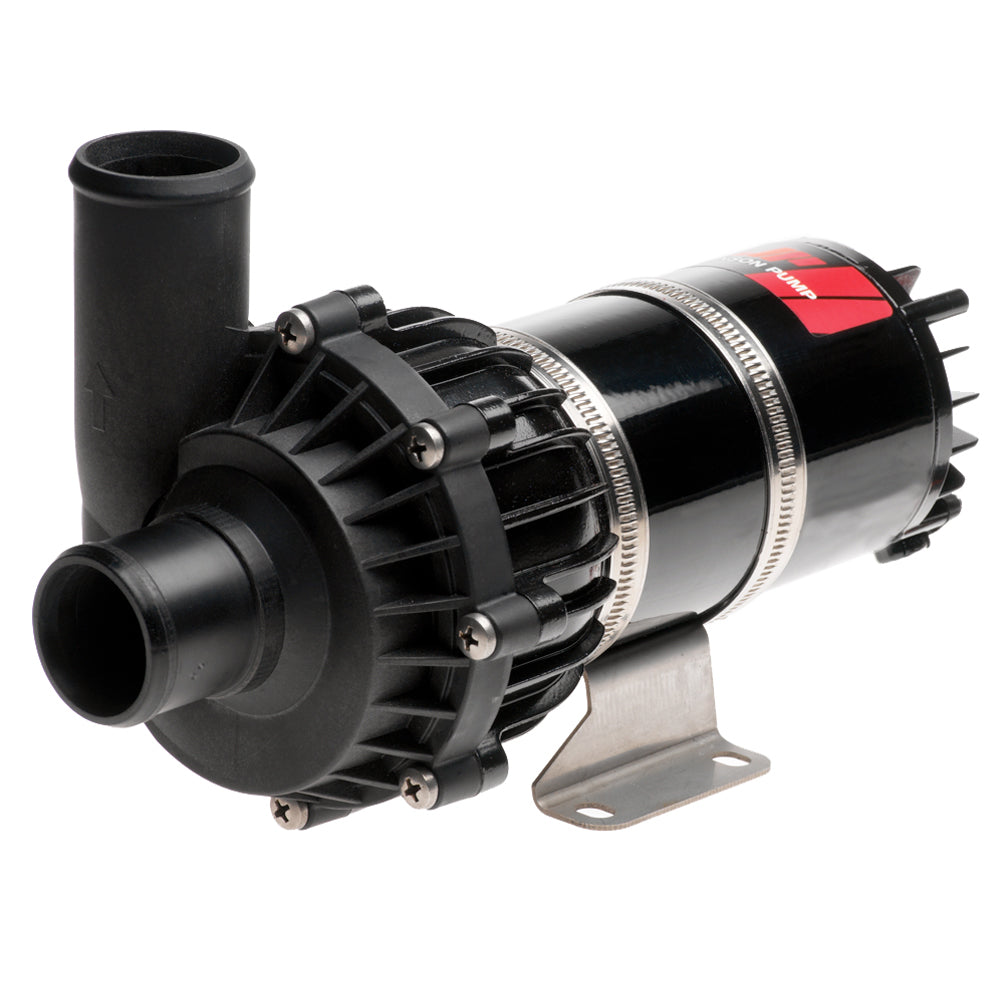

A line of compact magnetic driven centrifugal pumps which combine high flow rates with very low electric current consumption. Suitable for fresh water, ethylene glycol and salt water circulation.
System Pressure: -0.3 to +3.0 bar; stationary max. 4.0 bar Liquid: water/glycol mixture; max. 60% glycol, fresh and salt water Motor Service Life: More than 5,000 hours at nominal voltage 10,000 start/stops. Interchangeable motor. Motor, Voltage: Nominal 13.6V DC for use between 10-16V Nominal 27.2V DC for use between 20-32V Input Power: Max. 125W Dry Running: 30 minutes Dimensions: 244mm (L) x 120mm (W) x 150mm (H) Ports:Ø 20mm (3/4") & Ø 38mm (1-1/2") Weight: 3.0kg (6.6lbs) Body: PPA, glass-fiber reinforced Mounting: Separate universal bracket for flat surfaces
Lots of wiring - no leaks! Be sure to run ALL the wires through BEFORE completing the run!
Seaview White Plastic Vertical Cable Seal f/Multiple Wires Up to 10.6mm/0.5"
Ari Storch
"Currently" super happy.
Installed on Yanmar 4JH57 engines with Zeus Controllers - HOLY WOW power. Losing some power at top end but overall very satisfied. Will do a long term review later. Talk about power - hope to never need my generator again!
ARCO Zeus A8000 48V High Output Alternator - Isolated Ground
Magalie Laniel
Great design but fail fast in the caribbean sun...
We bought these boots in 2022, and are buying new ones 3 years later. We love the design and the fact that they are easy to remove for inspection of the rig.
Spreader Boots
Jon
Victron
Review for electrical system components:
• Victron Lithium Battery 24VDC 300Ah NG Smart LifePO4 (x4)
• Victron Lynx Smart BMS 500 NG (M10)
• Victron Lynx Distributor w/M10 Terminals (x2)
• Victron MultiPlus-II 24/5000 120-95 120V (x2)
• Victron Phoenix Smart IP43 Charger 24/25 (1+1) 120-240VAC (x5)
• Victron Cerbo GX MK2 w/ Victron GX Touch 70 Flush Mount Display
• Z Bar - Class T battery link Bundle w/ Blue Sea 5119 300AMP Class T Fuse (x4)
• Victron Orion XS 1400 DC-DC Battery Charger (x2)
• Victron SmartSolar MPPT Charge Controller - 100V - 30AMP - UL Approved (x4)
Complete upgrade of my Irwin 54 Sloop electrical system –
Phase 1 – Remove 9KW generator, install 30KW LifePO4 battery system, inverter chargers, battery chargers, etc. wired for worldwide shore power capability to ABYC standards. Installation made possible with guidance and support from Andre Cormier and The Yacht Rigger.
Victron Lithium Battery 24VDC 300Ah NG Smart LifePO4
Lacy Bryan White
Great Product!
I was amazed with the product especially, the attention to detail. I was also very pleased with the help and recommendations I received from Chris Wilcher. He made the purchase very easy.
