Description

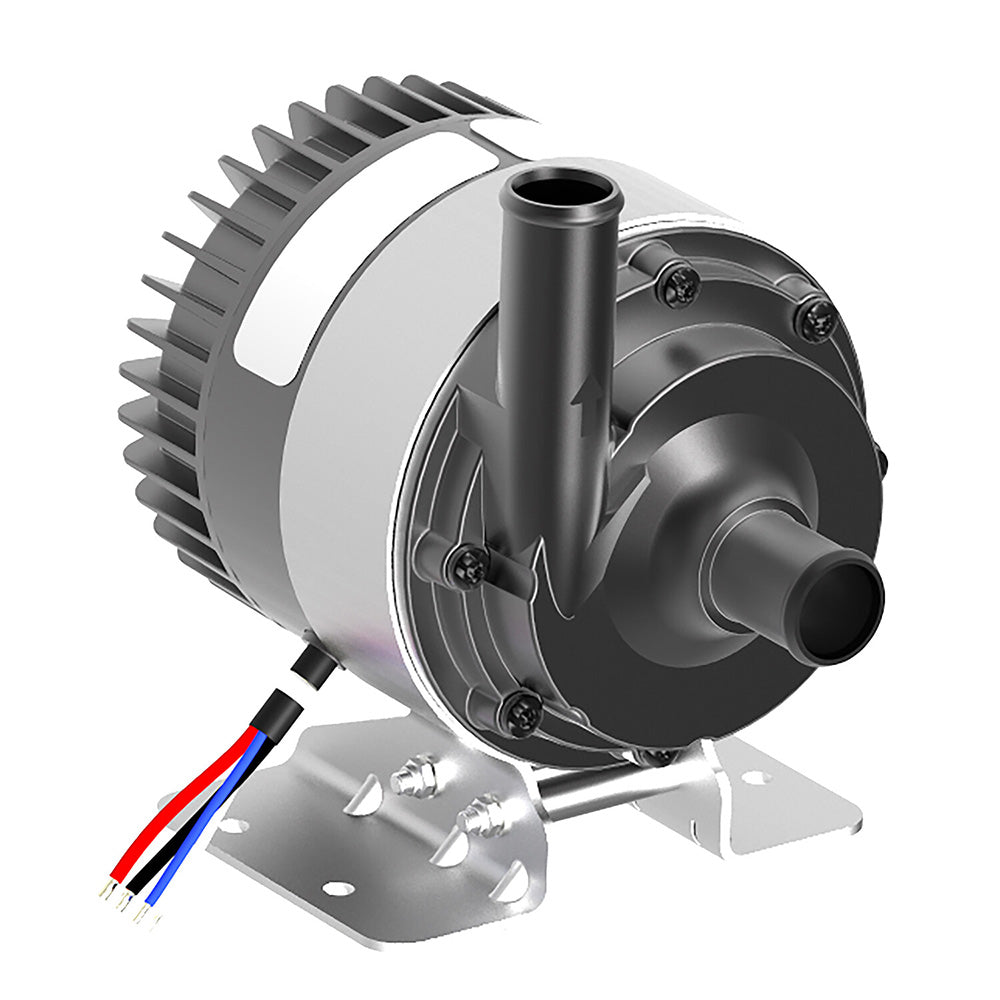

CM100HF Aluminum Brushless Motor 27.2V Circulation Pump High Pressure Diameter 38mm
These heavy-duty, magnetically driven, seal-less circulation pumps feature brushless motors designed for continuous use. They are ideal for circulation tasks in heating and cooling systems for buses, trains, boats, and similar applications. They also function well as general-purpose pumps wherever self-priming is not essential.
Features:
Limited 2-Year Warranty
Centrifugal pump (must be primed)
Magnetic drive (no shaft or mechanical seal)
Brushless motor
Long service life
Wide temperature range
Built-in thermal overload protection
EMC approved according to:
EN 55014-1:2006 + A1:2009 + A2:2011
EN 55014-2:1997 + A1:2001
EN 61000-6-3:2007 + A1:2011; Part 6-3
UN Regulation 10 (2004/104/EC:2004)
EN 61000-6-2:2005
Johnson Pump CM Series Pumps are normal-priming centrifugal pumps and should be mounted to ensure they are always flooded or be primed before being switched on.
These pumps should not be used with soiled water containing hard particles.
Specifications:
Pump Body: Black Anodized Aluminum
Impeller: PA 12
Shaft: Hardened Stainless Steel
Motor: Permanent magnet brushless motor with ball bearings and electronics included (IP6K9K)
Liquid: Water/glycol mixture; max. 60% glycol, fresh water
Liquid temp.: Min. -40°C Max. +102°C (Min. -40°F Max. 216°F)
System pressure: 2.5 bar max (36 psi)
Port size: 38 mm (1 1/2") hose
Dry running: Max. 25 minutes
Input Power: Max. 410 kW
Mounting: Separate universal bracket for flat surfaces
CAUTION: Do not pump gasoline, solvents, thinners, highly concentrated or organic acids. If corrosive fluids must be handled, pump life will be prolonged by flushing with water after each use or at the end of each work day.
