Description

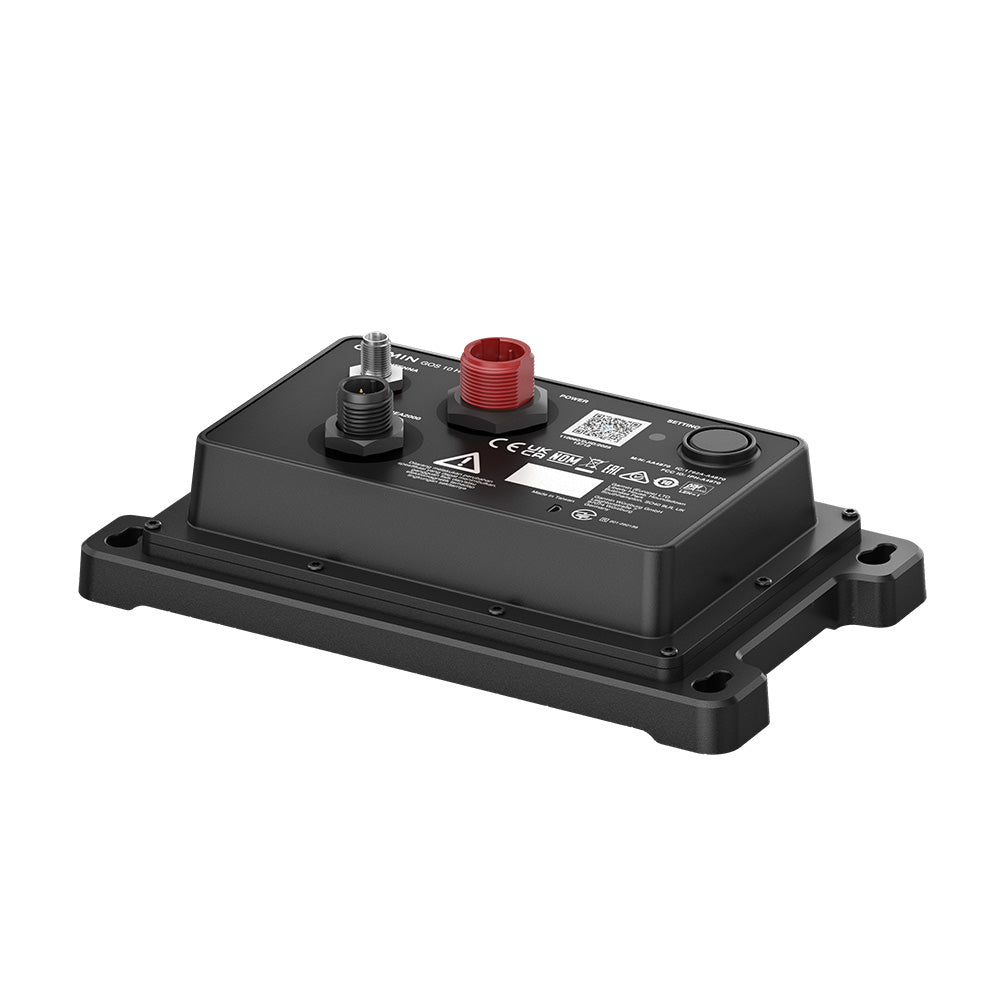

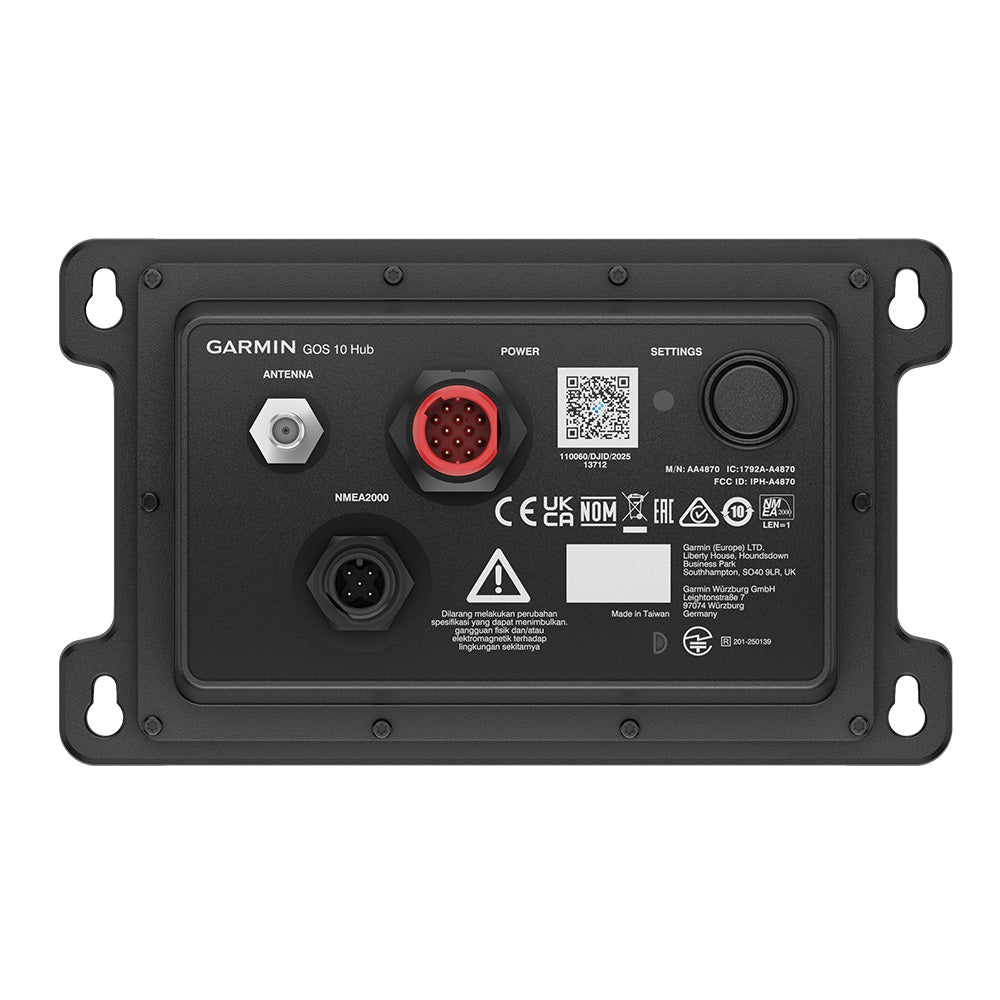

GOS™ 10 Hub for Garmin OnBoard™ System
Protect your passengers and loved ones with the GOS 10 Hub for the Garmin OnBoard system. One of the main components of your Garmin OnBoard system, the GOS 10 Hub communicates wirelessly with the MOB tags and connects to your vessel’s engine harness to provide Engine Cut Off System (ECOS) functionality.
What's In The Box?
GOS™ 10 Hub for the Garmin OnBoard System
12-pin fused power and engine cut-off harness with external buzzer
External antenna for wireless connection to MOB tags
NMEA 2000® T-connector
NMEA 2000 drop cable
Installation hardware
Documentation
Specifications:
Dimensions (HxWxD): 91.55 mm x 155.12 mm x 48.47 mm
Weight: 171.7 g
Wireless range: 66 ft (up to 20 m)
Supply voltage range: 10-32V
Operating temperature range: -15 °C to 70 °C
Typical power consumption: 50mA @ 12V or 0.6W
NMEA 2000 LEN®: 1
Engine compatibility: Inboard, outboard, sterndrive from all major manufacturers
Engine interface: Hardwired, in-line connection to ignition harness
Number of engines supported: Up to 4 close-to-stop or 2 open-to-stop engines
