Description

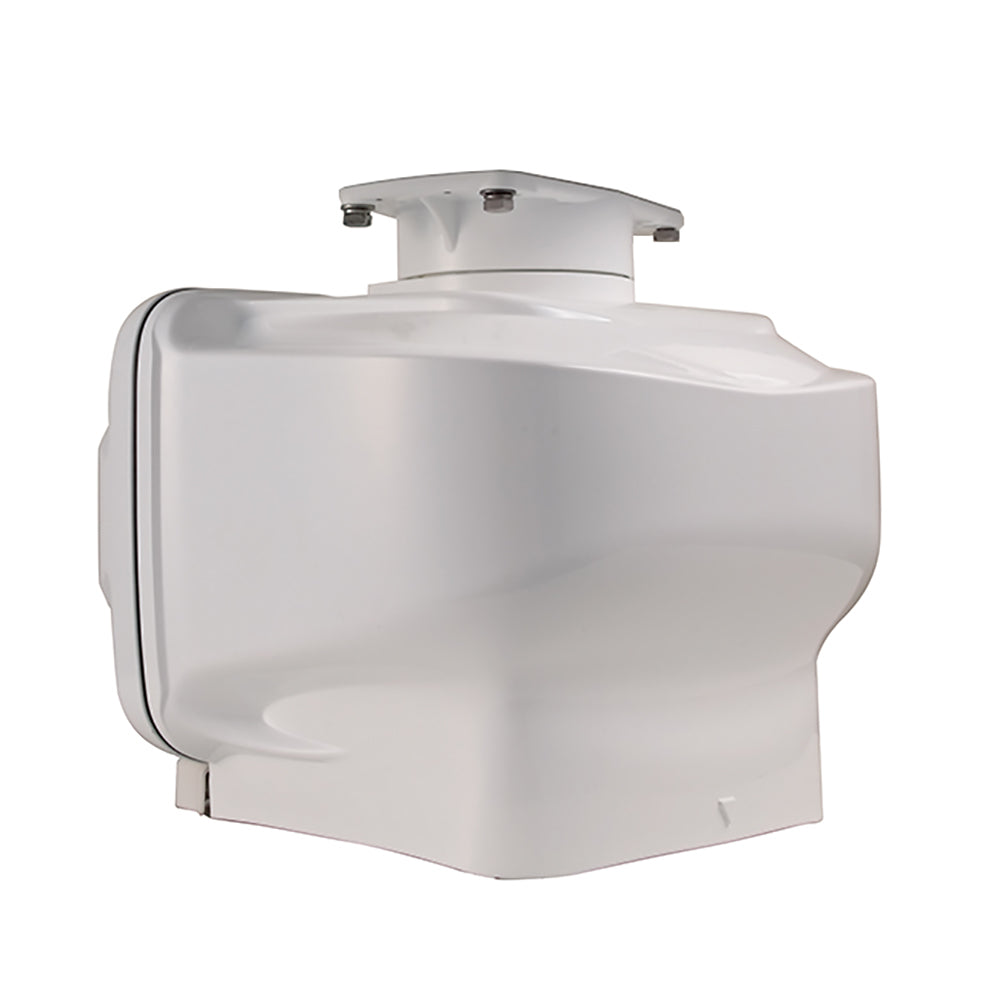

6kW UHD Digital Radar - Less Antenna and Cable
DRS6AX "X-Class", a whole new class of Radar!
Pushing the boundaries of what is possible with conventional Radar technology, DRS6AX "X-Class" marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS6AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.
The redesigned pedestal unit is 20% lighter than previous DRS6AX model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.
Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS6AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.
Features:
6kW Power Output
Enhanced target detection, both short and long range
Minimum detection range of just 20M
Fast Target Tracking™
Bird Mode
Pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor
No PSU required, decreasing total costs
Easy installation without the need to open pedestal unit
New smart-connector cable
Choice of 3.5', 4' or 6' Antenna
Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
The DRS6AX is a 24V system; a converter will be required for use with 12V power systems
