Description

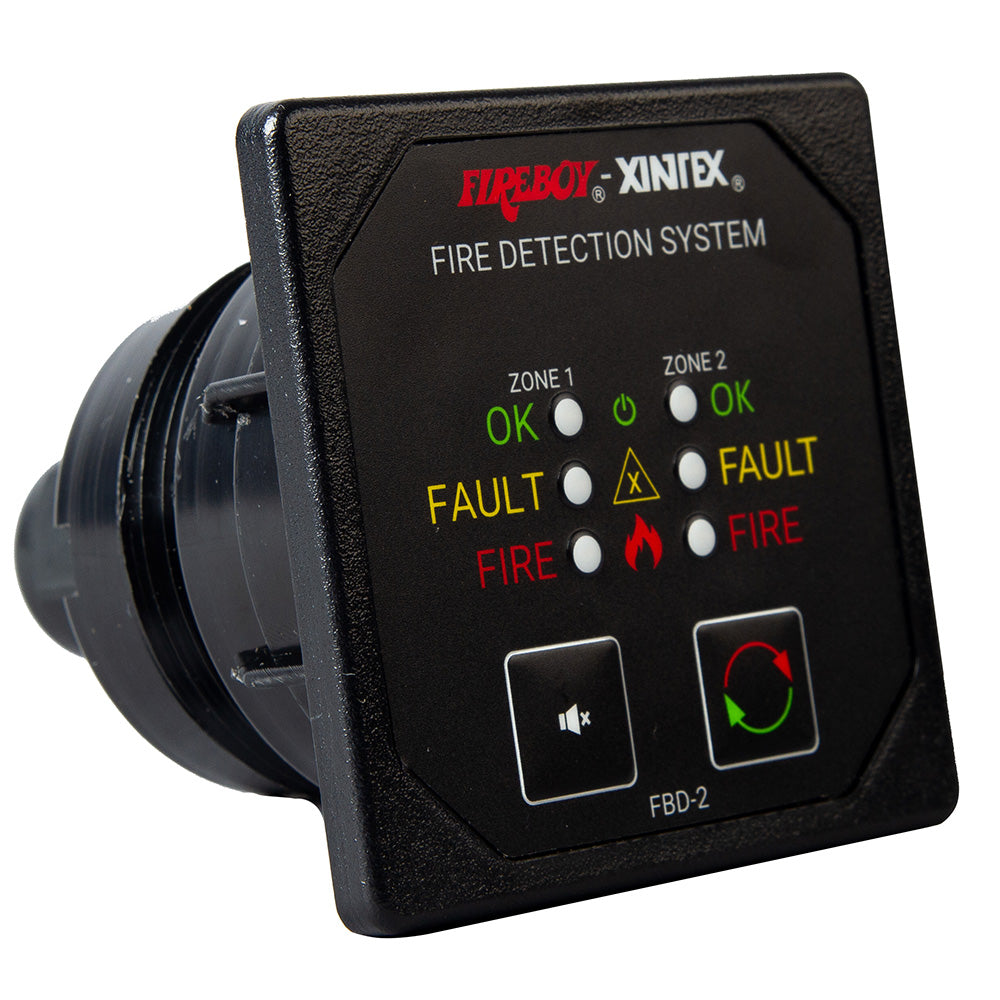

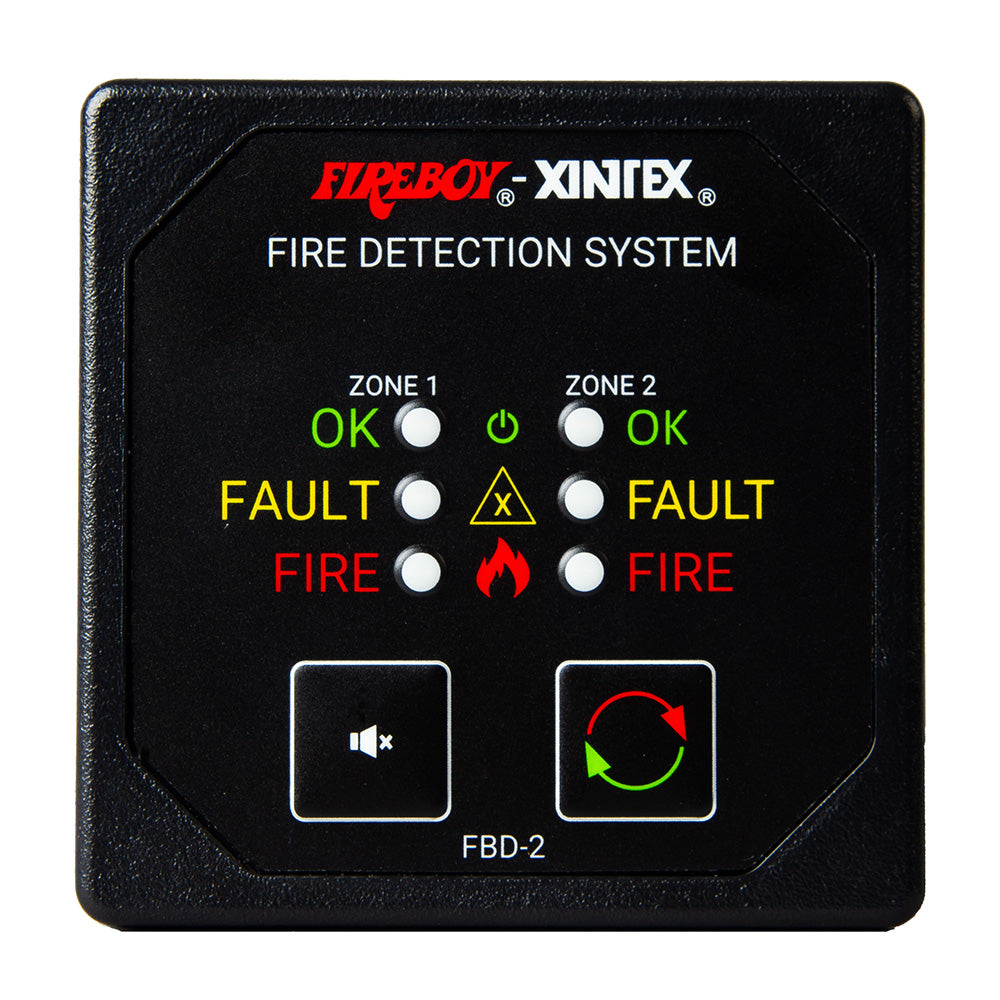

Two Zone Detection & Alarm Panel - 2-5/8" Display - 12/24V DC
Each system consists of a monitor panel and up to 14 smoke or heat detectors and/or rate of rise heat detectors connected to each zone (sold separately.)
Features:
Visual and audible indications of a fire or fault
Water resistant display
Voltage and EMI protected
Reverse polarity protected
Specifications:
Supply Voltage: 9-32V DC
Zone Loop Voltage: 24V DC (regardless of input voltage)
Minimum Alarm Current: 15mA
Maximum Current Per Zone: 400mA
Maximum Sensors Per Zone: 8
EOL Resistor: 5.6kΩ
Potential Free Transistor Output (Fault, Alarm): 50V max
