Efficient Flow AC Controller

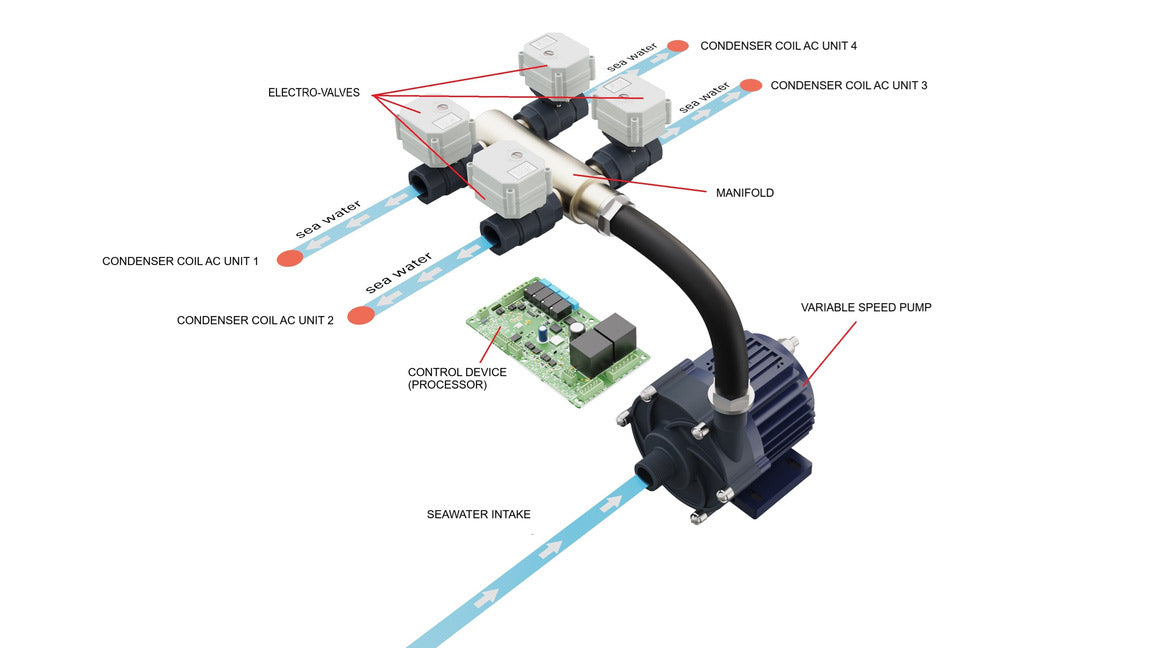

The Efficient Flow AC Controller is engineered to deliver exceptional energy efficiency by managing seawater flow to each air conditioning unit's condenser coil. This precise control is based on real time compressor activity, allowing the system to provide only the necessary cooling, which leads to significant power savings—up to 75%.

Key Features & Benefits

Smart Flow Management:
The dedicated PCB (Printed Circuit Board) ensures real-time control of electro valves and variable-speed pumps. It optimizes the water flow based on actual system demand, enhancing overall efficiency.

Dual Pump Operation :
Dual Pump Operation: The system supports two pumps, which can alternate operations, balancing runtime for extended equipment lifespan.

Descaling Function :
Built-in maintenance feature for easier system cleaning, reducing wear and tear on components and further extending the life of your system.

Enhanced Durability :
A cupronickel manifold and high-quality electro valves ensure long-lasting performance even in demanding marine environments.

Technical Specifications

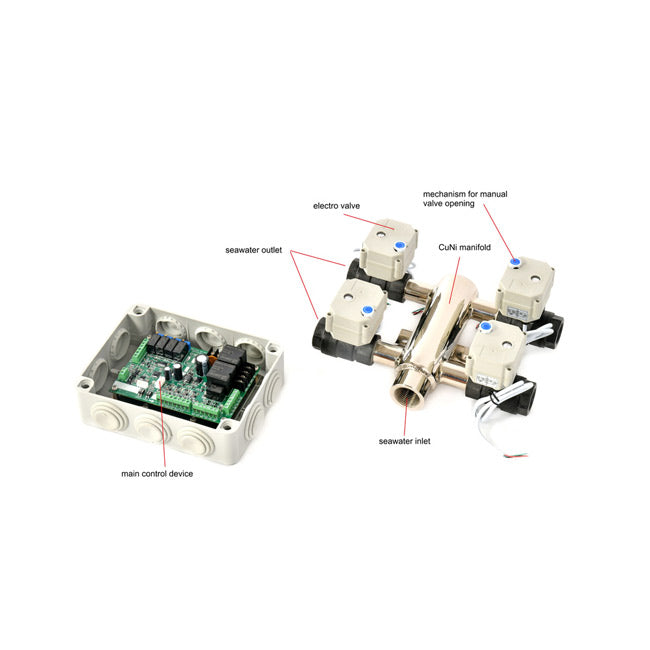

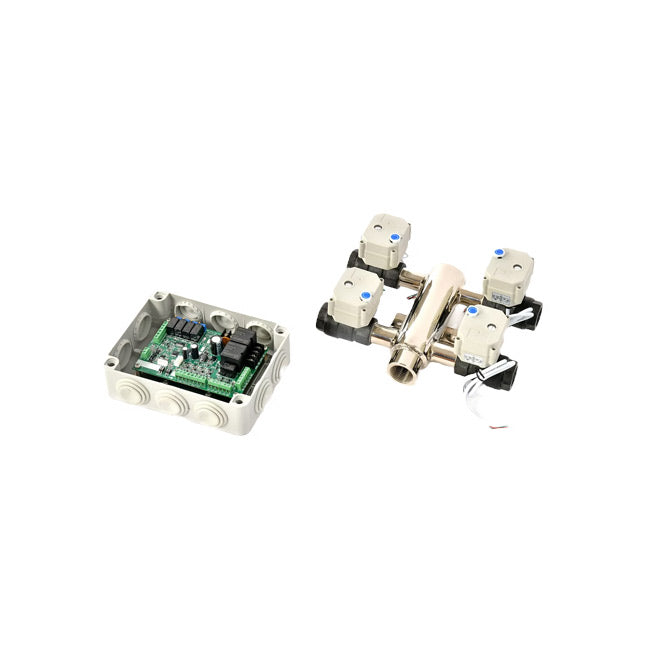

Water Flow Components:
Cupronickel manifold
4 electro valves
1 PCB control device
Supports up to 2 variable-speed pumps and up to 4 electro valves

Power Supply Options:
12VDC
24VDC
48VDC
Suitable for a wide range of installation environments

Seawater Connections:
Inlet: 1’’
Outlets: 3/4’’
