Description

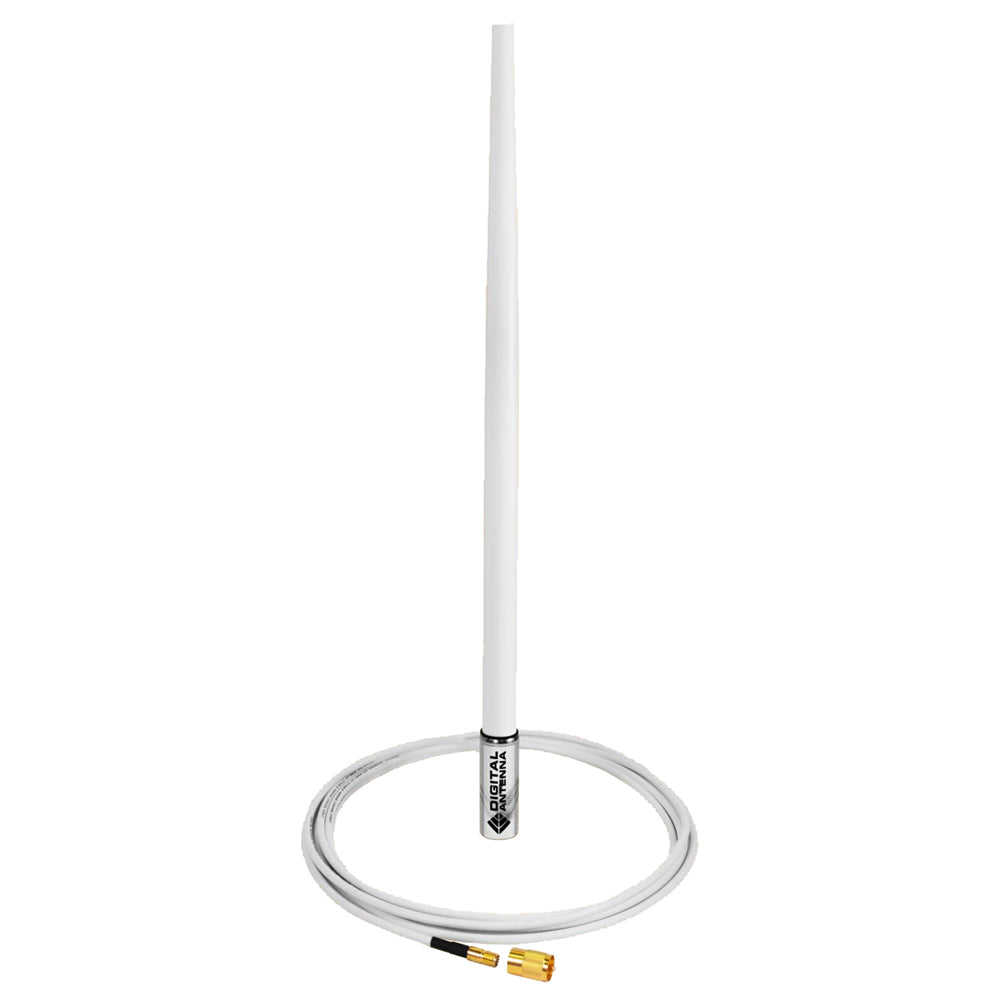

4' VHF/AIS White Antenna with 15' Cable
The 594-MW is one antenna designed for the best performance on VHF and AIS signals. To ensure the most incredible AIS and VHF range, Digital Antenna’s new 4.5dB gain AIS/VHF antenna features a less than 1:5:1 SWR on both the VHF (156MHz) and AIS (162MHz) frequencies.
Digital VHF radio-based transponder systems need antennas designed for digital signals. Digital Antenna is the only manufacturer to design all antennas to maintain and maximize digital signals for the best transmit and receive range.
Ideal for use on any size commercial or recreational vessel. Perfect for use with combined VHF/AIS radios. Factory-installed mini-UHF connector (less than 3/8” OD) and included PL259 adapter make a quick and secure connection to the radio. (no soldering needed).
Cable: 15’ Digital Antenna exclusive low loss RG-8X
Impedance: 50 ohms
Max Input Power: 50 watts
Exterior Finish: White polyurethane high gloss UV stable
Dimensions: 4’ length x 1” OD taper
Weight: 1.7 lbs
RF Connector: Mini-UHF female with included PL259 adapter
Installation: 1”x14tpi female threaded base
Elements: Brass - Hand soldered
Polarization: Vertical
Wind Rating: >160KPH
Operating Temp: 30º F to +175º F
Warranty: 5 Years
Compliance: Automatic Identification System (AIS)
Use with all AIS class A and B transceivers, AIS transponders, Smart AIS transponders, AIS receivers, auxiliary civil services, multi-use radio service (MURS), 2-way land mobile, VHF marine radio, narrow band FM, VHF SATCOM, Automatic Identification System (AIS), and NOAA Weather Stations.
