Description

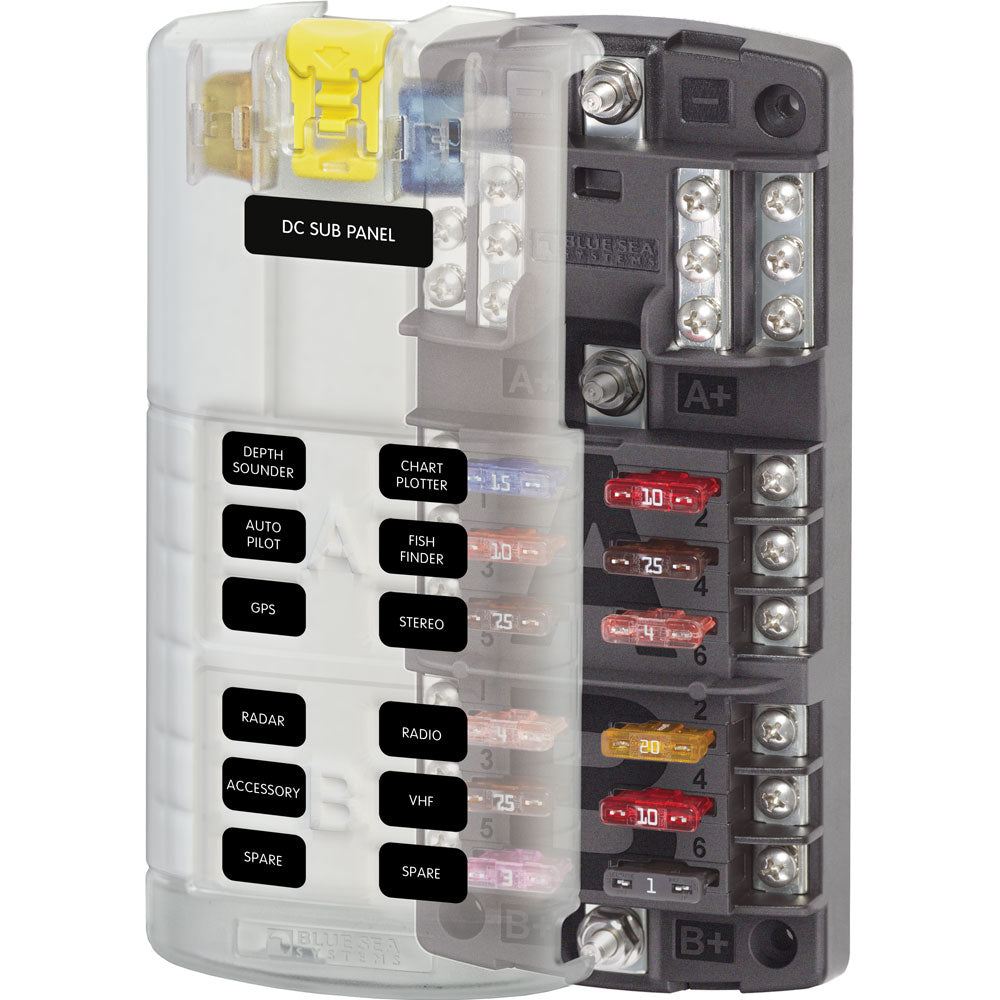

ST-Blade Split Bus Fuse Block
Features:
Provides two isolated groups of six ATO/ATC circuits
For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
Screw terminals for securing wires accept ring terminals
One-piece stainless flange nuts ensure safe and secure connections
Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
Easy to open, push button latch for easy access to fuses
Tin-plated copper buses and fuse clips
Fuses sold separately
Specifications:
Circuits: 12
Maximum Amperage: 100A per block, 30A per circuit
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4)
Negative Bus: #10-32 Stud
Screw Terminal Type: #8-32 Screws with captive star lock washer
