Description

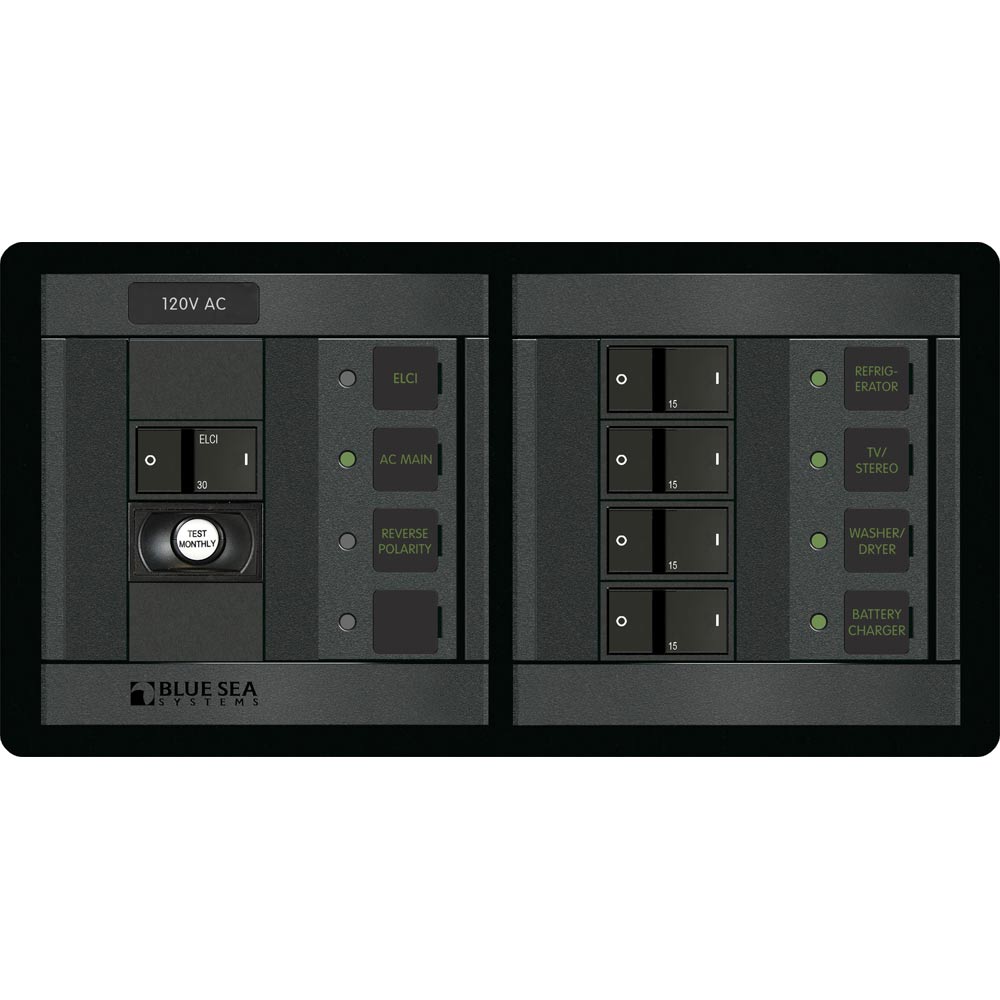

ELCI Main 30A Double Pole + 4 Positions Horizontal
Features:
One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
Four 15A AC Branch Flat Rocker Circuit Breaker
Red " Reverse Polarity" LED
Includes 4206 AC Panel Basic Square Format Label Set
All circuit label positions are backlit
"ON" indicating LEDs
Specifications:
Positions: 1
Nominal Voltage: 120V AC
Height: 4.75" (120.65mm)
Width: 4.88" (123.95mm)
Depth: 3.99" (101.35mm)
Weight: 1.00lb (0.45kg)
Includes: (4) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
