Description

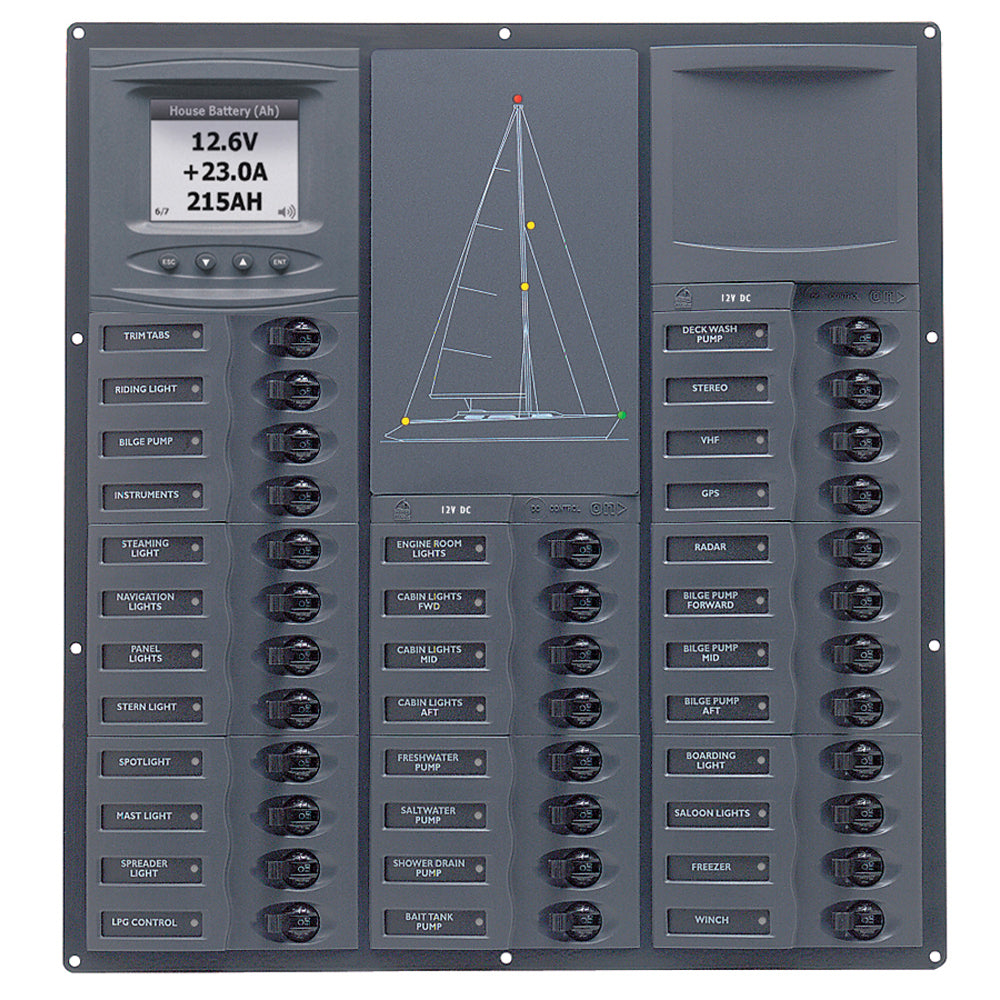

Cruiser Series DC Circuit Breaker Panel with Digital Meters 32SP DC12V DC circuit breaker panel with digital monitoring
BEP Marine uses the highest quality materials in its range of Control Panels, from the marine grade aluminium base plates to the Airpax magnetic hydraulic circuit breakers.
Features
Marine Grade powder coated aluminium
Airpax circuit breaker
Stylish Contour Design fascia
Green LED backlit labels
Red LED indicates systems on
Mimic Panel for quick reference of systems in operation
Blank space for addition of extra meter
Panels meet ABYC standards
Specifications
Total Positions: 32 Loads Circuit Breakers: 7X 5A, 11X 10A, 11X 15A, 1X 20A, 1X 25A, 1X 30A Nominal Voltage: 12V Maximum Amperage: 160A per bus Dimensions: 15" X 13.9" X 2.5" Neg Bus: 24 Way
