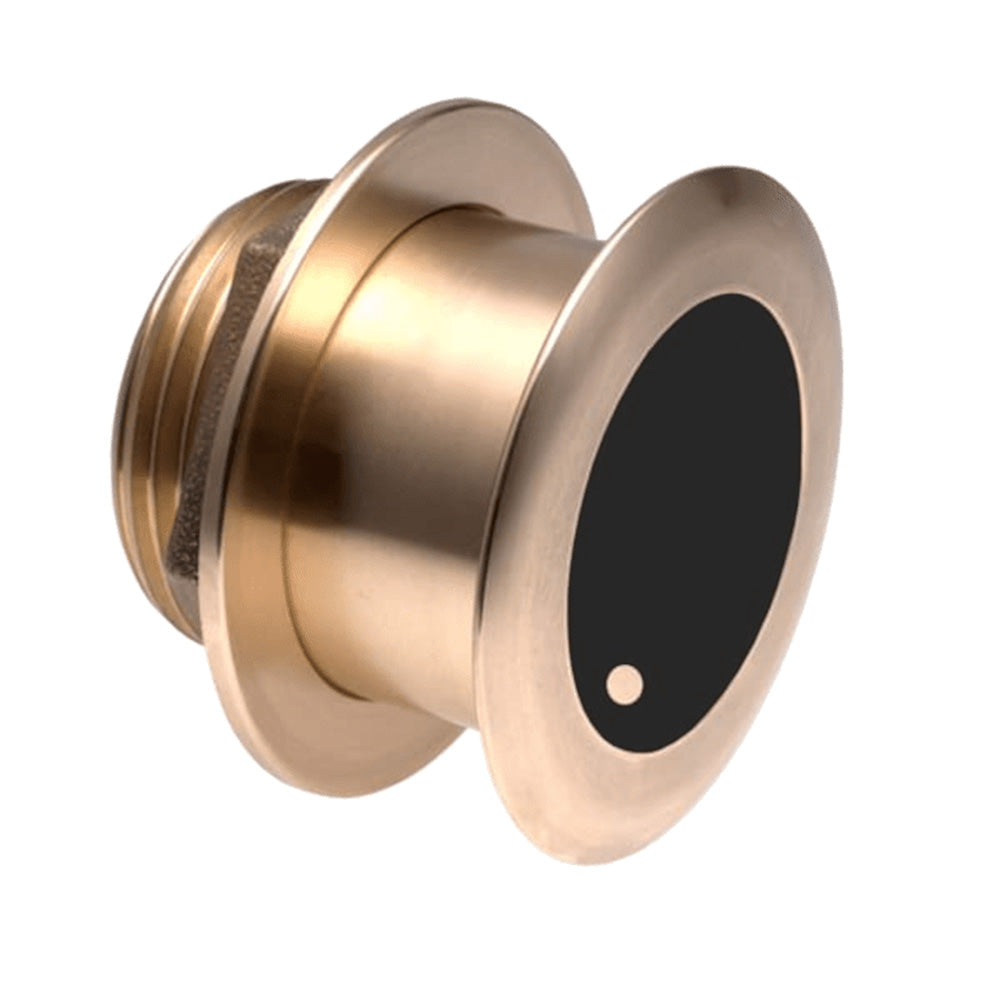

Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Element - Requires Mix Match Cable

B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12° Tilted Element - Requires Mix & Match Cable

12° tilted version for 8 to 15° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.

Features:

• Depth and fast-response water-temperature sensing
• 1 kW of power
• Dual-frequency elements:
• 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800')
• 200 kHz with a 6° beamwidth for depth performance to 244 m (800')
• Interfaces to any 600 W or 1 kW echo sounder
• Engineered for center-console and trailered boats
• Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
• No effect on the boat’s running performance
• Available in a stainless steel housing (SS164) for use in all hull materials
• Patented Xducer ID® technology

Specifications:

• Acoustic Window: Urethane
• Cable-Length: 2 M (6.5')
• Common Use: Leisure/Yachting, Fishing
• Connector: Airmar 9-Pin (MM1)
• Conventional Beam: 22°x20°/6°
• Country of Origin: USA
• Deadrise Range: 8° to 15°
• Frequency Band: 50/200 kHz
• Material: Bronze
• Max Deadrise: Up to 15°
• Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800')
• Mix and Match Series: 9-Pin 1000 Watt
• Mounting Style: Tilted Element Thru-Hull
• Retractable housing: No
• Sensor Connector: MM1
• Single or Dual Frequency: Conventional Dual Frequency
• Tilt Angle: 12°
• Tilted Element: Yes
• Weight: 2.7 kg (6 lbs)
• Power Rating: 1 kW
• Functions: Depth, Temperature
• Hull Material: Fiberglass or wood
• Max Vessel LOA: Up to 11 m (36')
• Hole Size: 95 mm (3-3/4")
• Usable Shaft Length: 71 mm (2.80")
• Display Connector: Cable Required

Specifications:

• Cable Length (Feet): 6.5'
• Chirp: No
• Imaging: Standard
• Mounting Style: Thru-Hull
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 8"H x 11"W x 12"L WT: 9.6 lbs
