Description

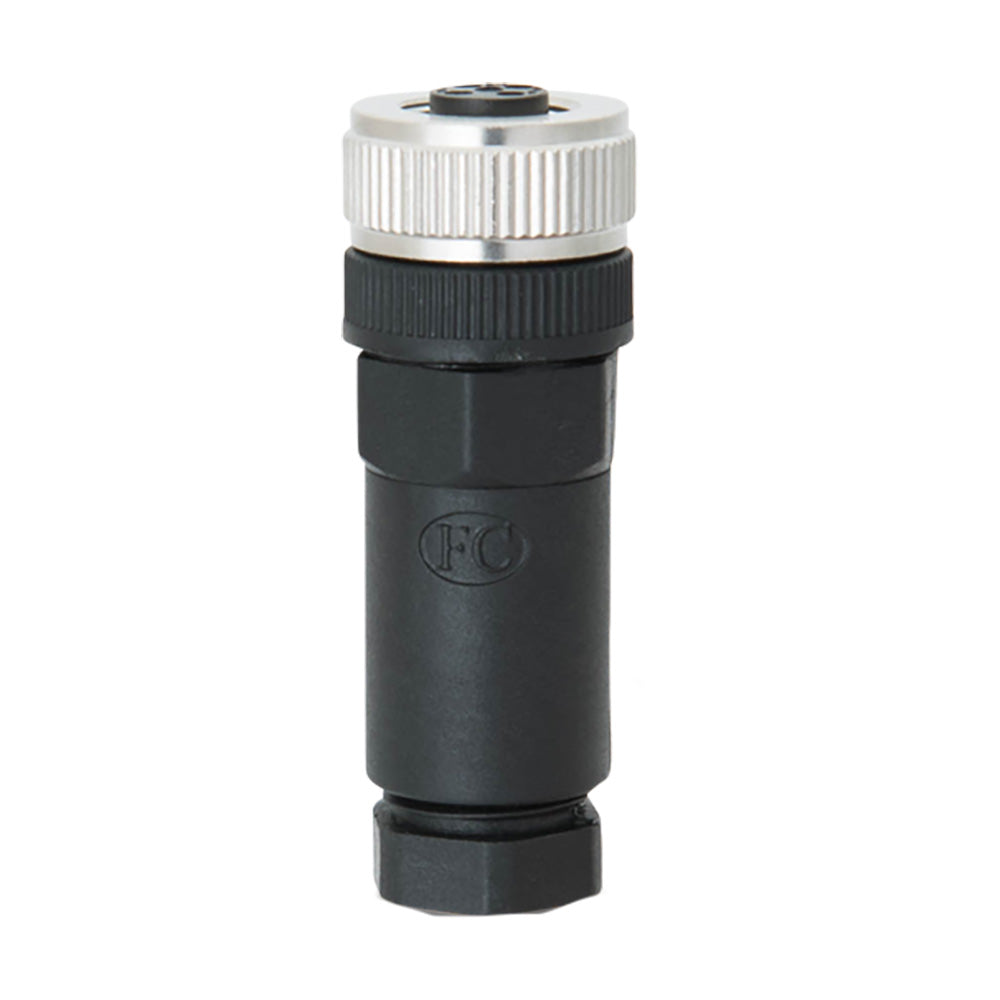

NMEA2000 Straight Micro Field Fit Connector - Female
Field-fit connectors allow full customization of your NMEA 2000 network cabling.
Male and female variants, as well as right-angle options for each, provide full flexibility and make it easy to install cable around tight bends, meaning your network can be fully customized. Actisense Field Fit Connectors allow for secure, reliable connections in any NMEA 2000 installation using Lite cable. The glands inside the connectors tighten around the cable as they are screwed together to maintain watertight integrity.
The Field Fit Connectors allow cables to be cut to any length, resulting in less excess. Right-angle options mean cables can be fitted at any angle to allow ease of installation from the desired entry point. The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Technical Specifications:
Electrical
Rated Current - 4A
Rated Voltage - 60VDC
Mechanical
Connector Contact - Brass, gold plated
Wire Gauge/Size - 22 AWG/0.34mm
Contact Resistance - ≤ 5 mΩ
Contact Polarization - Standard M12 -“A”- polarization
Mating Thread - M12
Connector Screw - Stainless Steel
Sealing Gland Size - PG9/6-8mm Cable
O-Ring Seal - Rubber, black
Connector Insert - TPU
Connector Body - PA+GF, black
Insulation Resistance - ≥ 100 MΩ
Weight - 26.5g
Approvals and Certifications
Protection - IP67 (in locked condition)
Ambient Temperature - -25°C to +90°C
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
