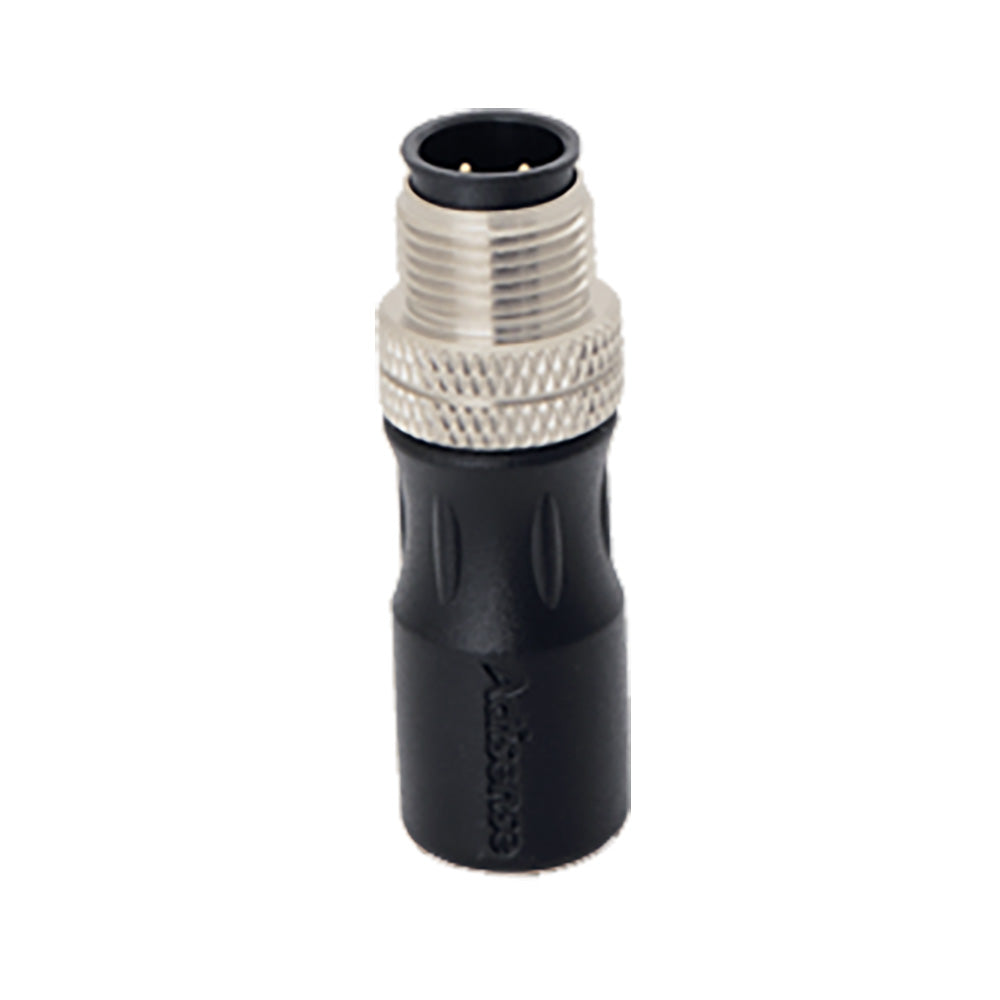

Actisense NMEA2000 Micro Terminator - Male

NMEA2000 Micro Terminator - Male

Actisense terminators are exceptionally robust, designed to withstand the harsh conditions of the marine environment, and are easy to install.

Each NMEA 2000 installation must have precisely two termination resistors installed, one at each end of the backbone, to ensure proper operation and signal integrity.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge

Technical Specifications:

Electrical

• Rated Voltage (power pair) - 60VDC
• Rated Current - 4A
• Internal Termination Resistors - 120 Ω ± 1% 500mW

Mechanical

• Male Contact - Brass, gold plated
• Contact Carrier - PA66 (30% Glass filled), black
• Contact Polarization - Standard M12 -“A”- polarization
• Mating Thread - M12
• Screw Cap - Brass, nickel plated
• O-Ring Seal - Rubber, Black
• Housing - PVC, black
• Weight - 15g

Approvals and Certifications

• Protection - IP67 (when mated)
• Operating Temperature - -25°C to +70°C
• Storage Temperature - -40°C to +85°C

Specifications:

• Connection Gender: Male
• Data Interface: NMEA 2000
• NMEA 2000 Connectors: Terminators
• Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs
• UPC: 5060998710300
