Description

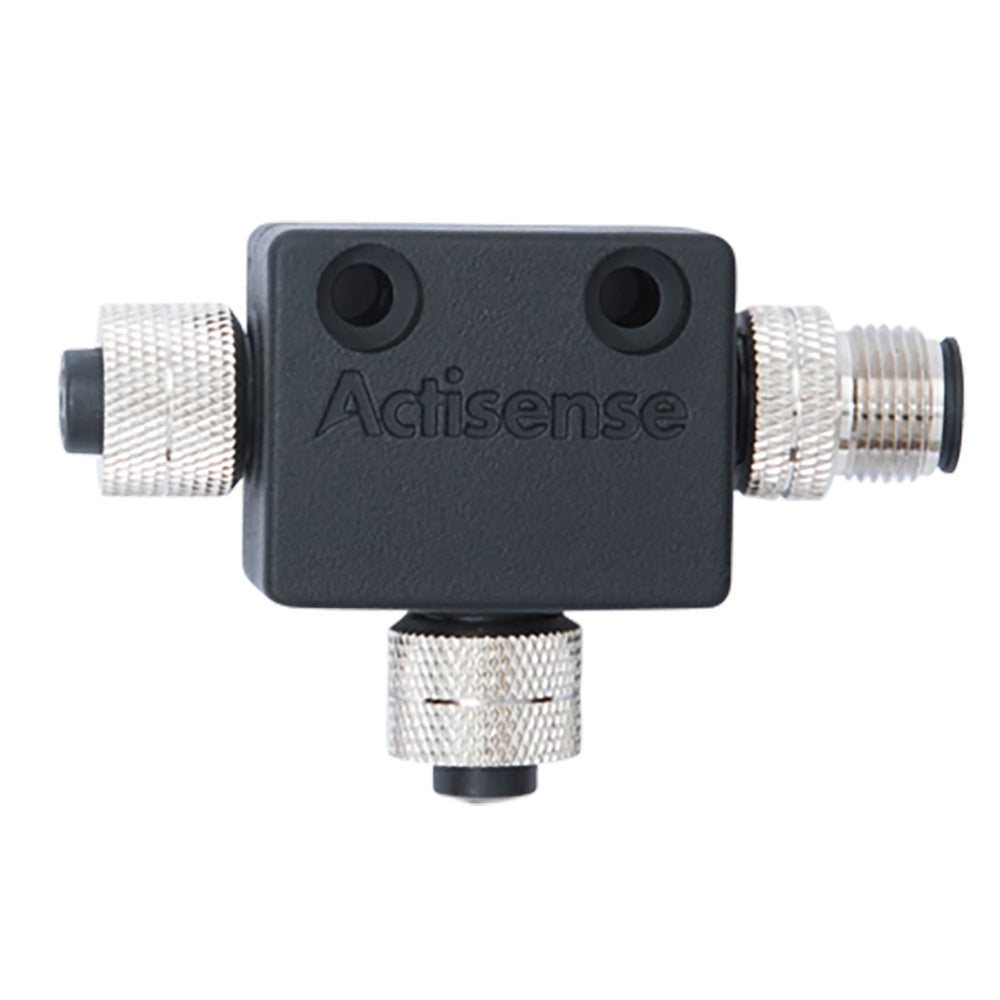

NMEA2000 Micro T Connector
Quality-engineered connectors are shaped to allow easy and secure connections.
Two female and one male connector allow easy connection to Actisense NMEA lite cable assemblies, even when field-fit connectors are used, making it a unique T-piece.
The Actisense NMEA 2000 T-Piece is for use where a drop or ‘port’ is required from the NMEA 2000 backbone to connect another device.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Technical Specifications:
Rated Current - 4A
Rated Voltage - 60VDC
Male Contact - Brass, gold-plated
Female Contact - Phosphor bronze, gold plated
Contact Carrier - PA66 (30% Glass filled), black
Contact Polarization - Standard M12 -“A”- polarization
Mating Thread - M12
Screw Cap - Brass, nickel plated
O-Ring Seal - Rubber, black
Housing - PVC, black
Weight - 47g
Protection - IP67 (when mated)
Operating Temperature - -25°C to +70°C
Storage Temperature - -40°C to +85°C
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
