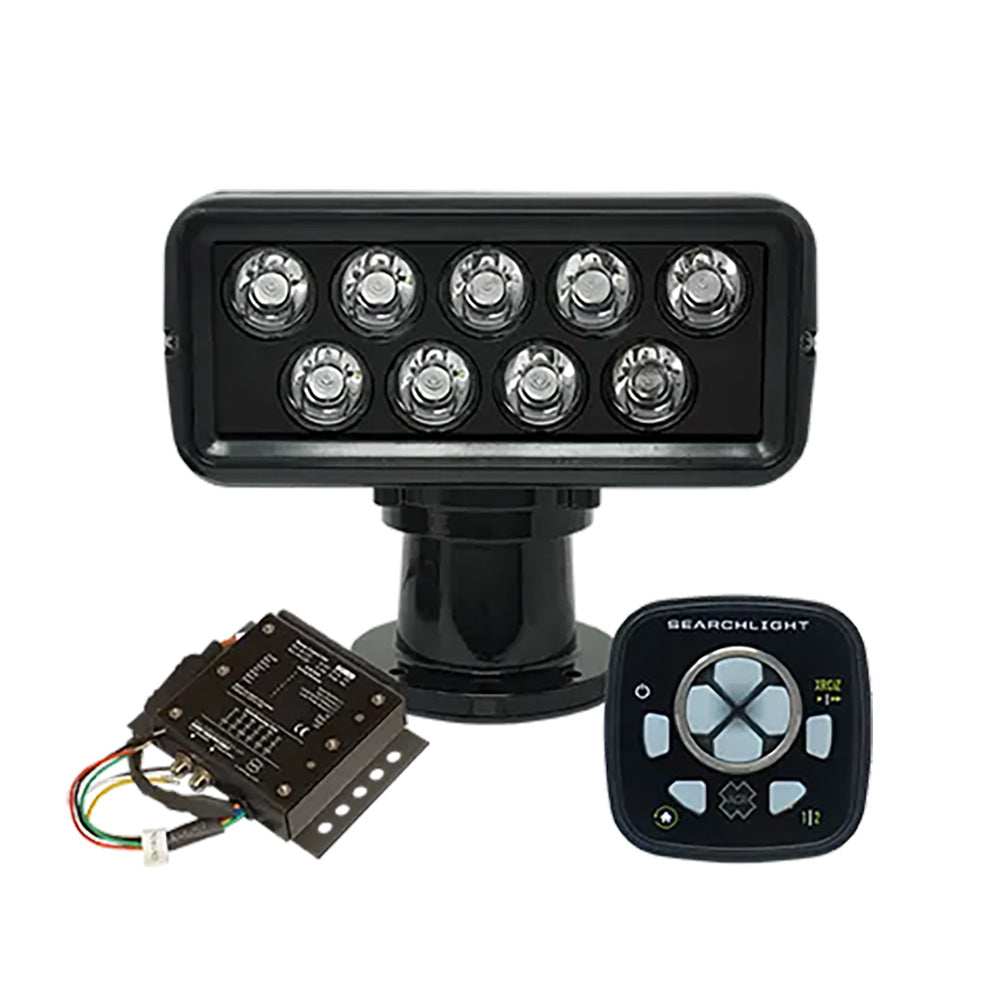

RCL-100 LED Black Searchlight with URP-103 Wired Point Pad, URC-104 Master Controller
RCL-100 LED Searchlight Kit - 12/24V - Black
Not all searchlights are created equally. The LED version of our most popular RCL-100D searchlight provides high-intensity LED performance that pierces through nights and low-lighting conditions with a blazing 220,000 candela. The RCL-100 LED’s traditionally sleek design makes it an attractive and cost-effective choice for sport yachts, mega-yachts, sport fishers, and light commercial vessels.
The die-cast aluminum case is triple-primed and painted with UV stabilizer to withstand years of exposure in the harsh marine environment. The light’s internal elevation mechanisms are fully enclosed and provide precise pitch control of the beam while staying protected. The LED bulbs are efficiently designed to provide over 40,000 operating hours. The light also includes our Exclusive XRCiZ™ feature that is pre-programmed and allows for the light to independently rotate every 30 days from activation to ensure all bearing surfaces are free of corrosion and all electrical contacts are functional.
This package also includes a URP-102 Point Pad™ controller and a URC-103 Master Controller. All this makes for a powerful searchlight that is easy to use from multiple control points.
Features:
- Ultra-bright, 9 LED array generating over 220,000 peak candela
- Efficient, long-life LEDs - 40,000 operating hours
- Reduced power consumption
- The controller has state-of-the-art electronics to protect the light from most power surges
- Internal elevation mechanism for precise pitch control of the beam
- Rugged triple-primed and sealed, marine-grade aluminum housing
- Cababe of working with up to three remote Point Pad™ units
- Exclusive XRCiZ™ feature rotates and moves the light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
Specifications:
- Color - Black
- Material - 518 Die-cast aluminum
- Operation - Dash Mount Point Pad™
- Voltage Input - 12/24 VDC
- Rotation - 360° continuous
- Light Pattern - Spot
- Light Distance - 4,501' (1,372 M)
- Dimensions (H x W x D) - 8" x 9" x 8" (20.3 x 22.9 x 20.3 cm)
- Dimensions (Footprint Diameter) - 4.75" (12.7 cm)
- Weight - 7.2 lb (3.2 kg)
URP-103 Wired Point Pad
The URP-103 Point Pad is designed with modern boaters in mind and features updated styling and a sleek, contemporary aesthetic that blends seamlessly with today’s marine dashboards and control panels – perfect for refits or new installs. Whether you’re upgrading an existing setup or outfitting a new vessel, ACR’s next-gen searchlight point pad brings with it a new level of style, function, and flexibility.
URC-104 Master Controller
The URC-104 Master Controller may be out of sight, but it’s central to everything. Designed to be mounted discreetly behind the dash, the URC-104 is the critical hub that enables seamless remote operation of your RCL-100 LED and RCL-50 LED searchlights. It is the brains behind the operation, ensuring full functionality of both the URP-103 Point Pad Controller and the URH-103 Handheld Wireless Remote.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Candela: 220,000
- LED: Yes
- Voltage - Input Range (Volts): 12
- Wireless: No
- Box Dimensions: 11"H x 11"W x 13"L WT: 13.4 lbs
- UPC: 791659019795
